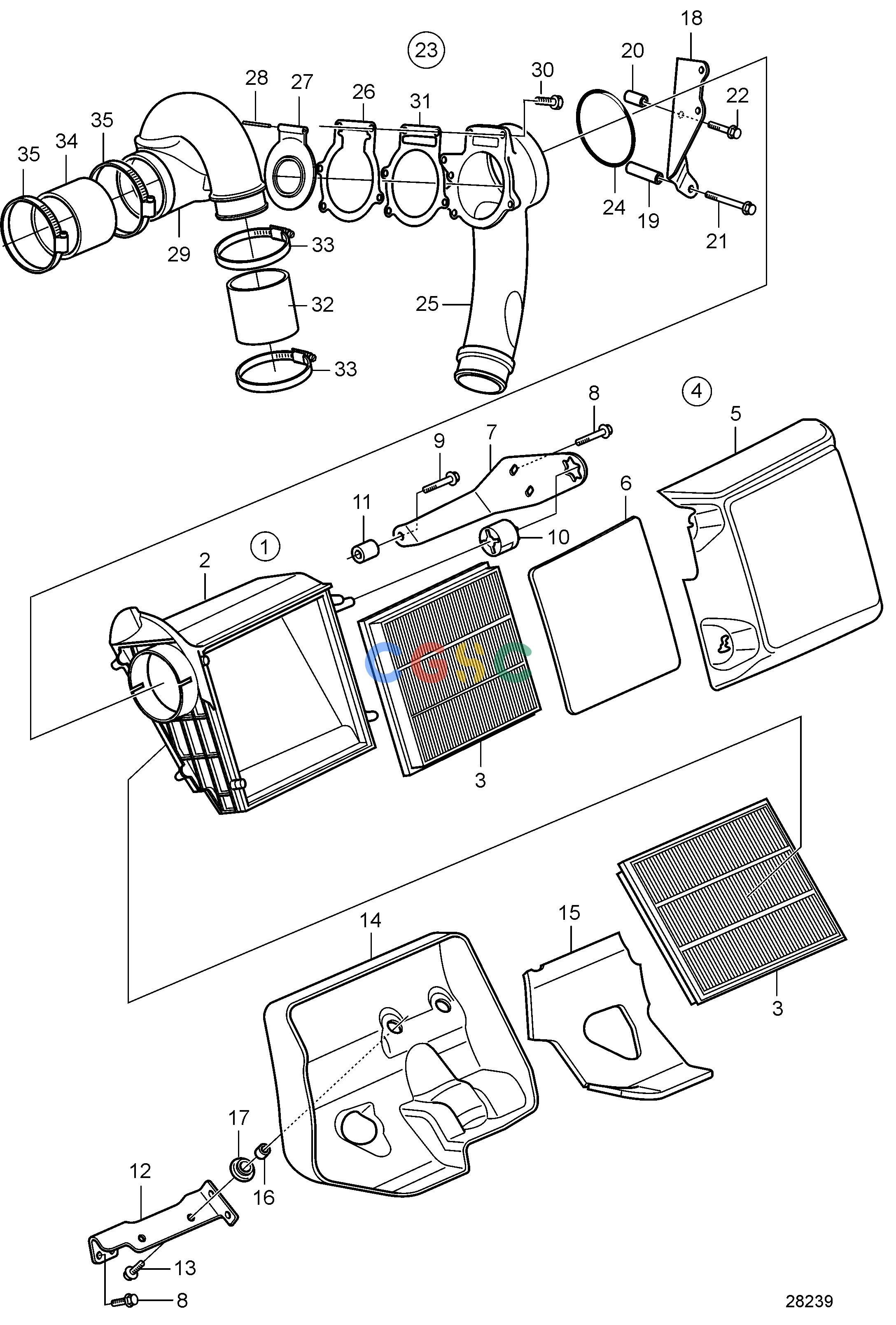

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Intake and Exhaust SystemAir Filter for Engine with IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22123661
|
[1] |
Air filter
|
|
| 2. |
3808327
|
[1] |
Housing
|
|
| 2. |
3807823
|
[1] |
Air filter housing
|
|
| 2. |
3807824
|
[1] |
Cover
|
|
| 2. |
3809045
|
[8] |
Compression spring
|
|
| 2. |
3843083
|
[8] |
Catch
|
|
| 3. |
3818541
|
[2] |
Insert
|
Replaced by 21702999
|
| 3. |
21702999
|
[2] |
Insert
|
|
| 4. |
22123634
|
[1] |
Sound trap
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
21295545
|
[1] |
Bracket
|
|
| 8. |
984734
|
[4] |
Flange screw
|
|
| 9. |
994385
|
[1] |
Flange screw
|
|
| 10. |
21301219
|
[1] |
Rubber bushing
|
|
| 11. |
973273
|
[1] |
Spacer sleeve
|
|
| 12. |
21295556
|
[1] |
Bracket
|
|
| 13. |
984735
|
[2] |
Flange screw
|
|
| 14. |
21327476
|
[1] |
Sound absorber
|
|
| 15. |
|
|
|
|
| 16. |
40005089
|
[4] |
Spacer
|
|
| 17. |
992404
|
[4] |
Grommet
|
|
| 18. |
21257516
|
[1] |
Bracket
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
980475
|
[1] |
Flange screw
|
|
| 22. |
984757
|
[1] |
Flange screw
|
|
| 23. |
21416775
|
[1] |
Air shutter
|
|
| 24. |
990692
|
[1] |
O-ring
|
|
| 25. |
21256263
|
[1] |
Air shutter
|
|
| 26. |
21269698
|
[1] |
Gasket
|
|
| 27. |
21256301
|
[1] |
Air shutter
|
|
| 28. |
21271040
|
[1] |
Pin
|
|
| 29. |
21267563
|
[1] |
Air shutter
|
|
| 30. |
948356
|
[5] |
Flange screw
|
|
| 31. |
21389148
|
[1] |
Gasket
|
|
| 32. |
470327
|
[1] |
Hose
|
|
| 33. |
995045
|
[2] |
Hose clamp
|
|
| 34. |
21305110
|
[1] |
Rubber hose
|
|
| 35. |
853012
|
[2] |
Hose clamp
|
|
