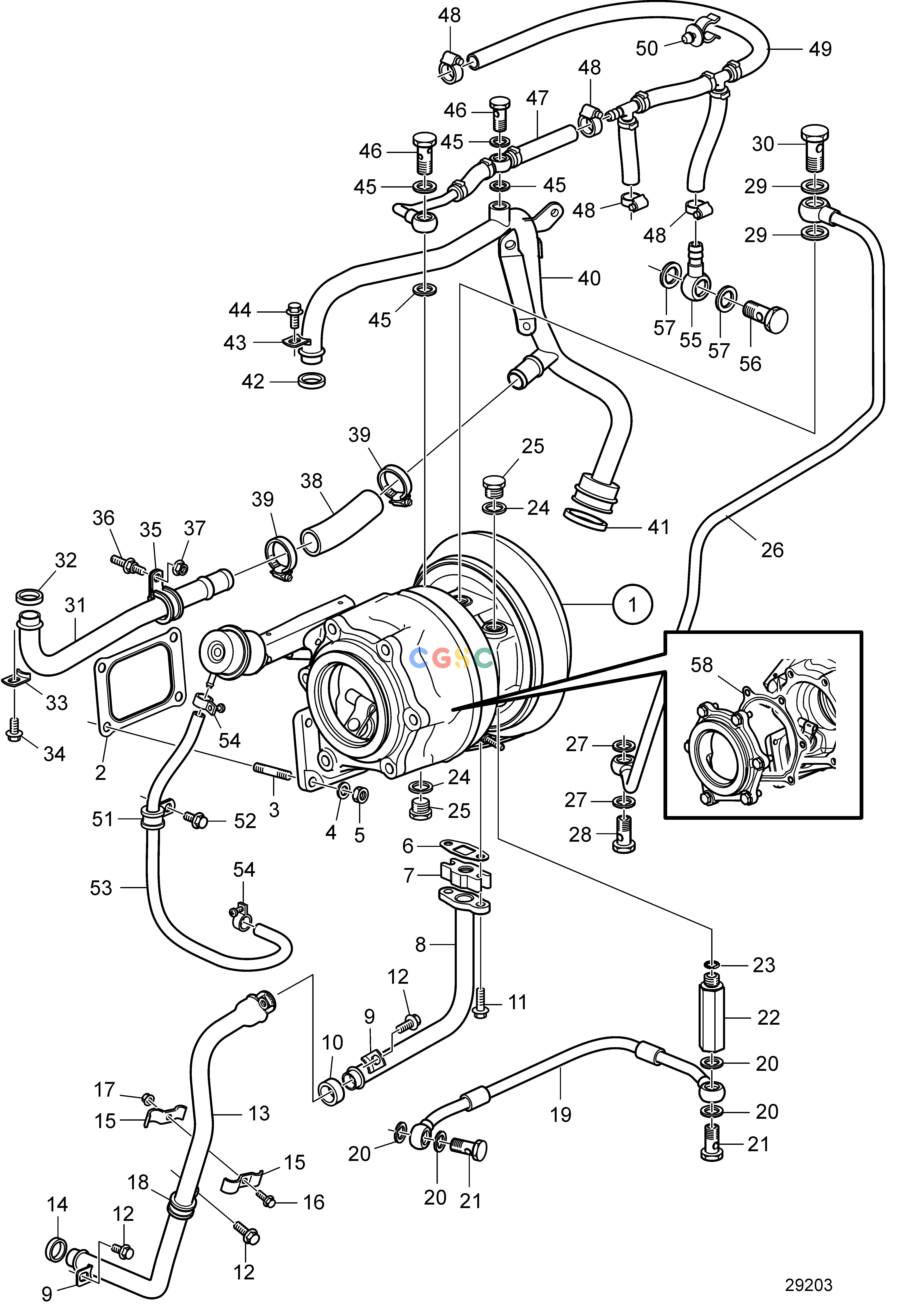

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Intake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801221
|
[1] |
Turbocharger, exch
|
Replaced by 3801405
|
| 1. |
3801405
|
[1] |
Turbocharger
|
Replaced by 3801486
|
| 1. |
3801486
|
[1] |
Turbocharger, exch
|
Component parts not sold separately
|
| 2. |
20784537
|
[1] |
Plane gasket
|
|
| 3. |
924081
|
[4] |
Stud
|
|
| 4. |
940097
|
[4] |
Washer
|
|
| 5. |
971071
|
[4] |
Hexagon nut
|
|
| 6. |
20707685
|
[1] |
Plane gasket
|
|
| 7. |
8148729
|
[1] |
Connector
|
|
| 8. |
21138944
|
[1] |
Oil line
|
|
| 9. |
20565843
|
[2] |
Lock brace
|
|
| 10. |
469601
|
[1] |
Rubber moulding
|
|
| 11. |
984738
|
[2] |
Flange screw
|
|
| 12. |
984733
|
[3] |
Flange screw
|
|
| 13. |
21138943
|
[1] |
Oil line
|
|
| 14. |
1547255
|
[1] |
Sealing ring
|
|
| 15. |
820851
|
[2] |
Clamp
|
|
| 16. |
984725
|
[1] |
Flange screw
|
|
| 17. |
990939
|
[1] |
Flange nut
|
|
| 18. |
1545432
|
[1] |
Attaching clamp
|
|
| 19. |
3887861
|
[1] |
Coolant pipe
|
|
| 20. |
11996
|
[4] |
Gasket
|
|
| 21. |
941686
|
[2] |
Hollow screw
|
|
| 22. |
3889823
|
[1] |
Nipple
|
|
| 23. |
968559
|
[1] |
O-ring
|
|
| 24. |
11998
|
[2] |
Gasket
|
|
| 25. |
|
|
|
|
| 26. |
21139074
|
[1] |
Oil line
|
|
| 27. |
11996
|
[2] |
Gasket
|
|
| 28. |
991046
|
[1] |
Hollow screw
|
|
| 29. |
11998
|
[2] |
Gasket
|
|
| 30. |
190714
|
[1] |
Hollow screw
|
|
| 31. |
3888530
|
[1] |
Coolant pipe
|
|
| 32. |
1547252
|
[1] |
Sealing ring
|
|
| 33. |
1546531
|
[1] |
Lock brace
|
|
| 34. |
984733
|
[1] |
Flange screw
|
|
| 35. |
947827
|
[1] |
Clamp
|
|
| 36. |
20714050
|
[1] |
Flange screw
|
|
| 37. |
990940
|
[2] |
Flange nut
|
|
| 38. |
969033
|
[1] |
Rubber hose
|
|
| 39. |
961664
|
[2] |
Hose clamp
|
|
| 40. |
21244966
|
[1] |
Coolant pipe
|
|
| 41. |
1547253
|
[1] |
Sealing ring
|
|
| 42. |
1547252
|
[1] |
Sealing ring
|
|
| 43. |
1546531
|
[1] |
Lock brace
|
|
| 44. |
984733
|
[1] |
Flange screw
|
|
| 45. |
11996
|
[4] |
Gasket
|
|
| 46. |
941686
|
[2] |
Hollow screw
|
|
| 47. |
3593747
|
[1] |
Pipe set
|
|
| 48. |
961663
|
[4] |
Hose clamp
|
|
| 49. |
3594055
|
[1] |
Hose assembly
|
|
| 50. |
9135343
|
[2] |
Retainer
|
|
| 51. |
978869
|
[1] |
Clamp
|
|
| 52. |
984733
|
[1] |
Flange screw
|
|
| 53. |
22377197
|
[1] |
Hose
|
|
| 54. |
975269
|
[2] |
Hose clamp
|
|
| 55. |
20459906
|
[1] |
Banjo nipple
|
|
| 56. |
991048
|
[1] |
Hollow screw
|
|
| 57. |
982723
|
[2] |
Gasket
|
|
| 58. |
23029715
|
[1] |
Gasket
|
|
