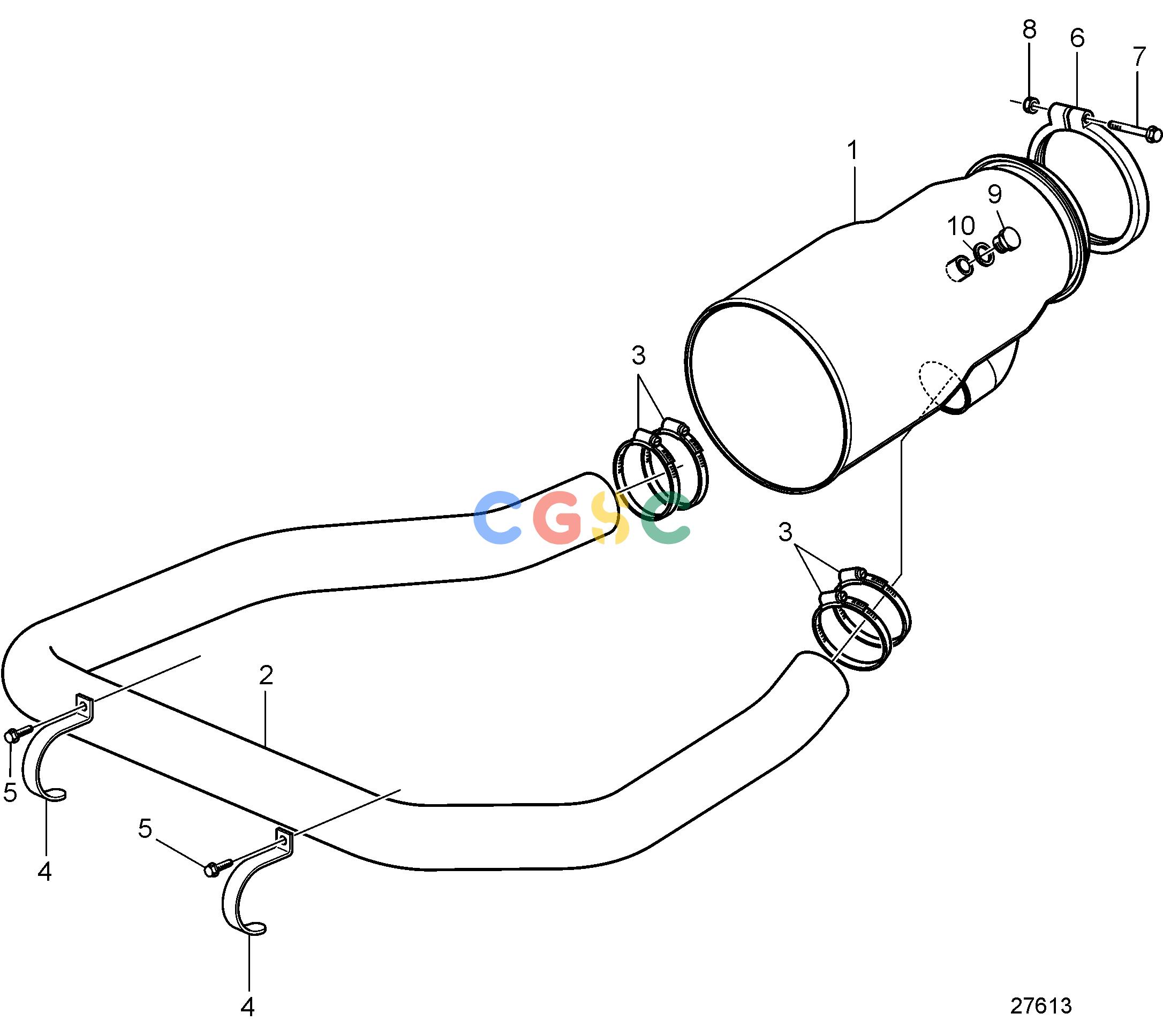

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Intake and Exhaust SystemWet Exhaust Pipe ElbowEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
339 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22066708
|
[1] |
Exhaust pipe
|
|
| 2. |
3817427
|
[1] |
Hose
|
D9
|
| 2. |
23023445
|
[1] |
Hose
|
D11
|
| 3. |
961672
|
[4] |
Hose clamp
|
|
| 4. |
948560
|
[2] |
Clamp
|
|
| 5. |
984725
|
[2] |
Flange screw
|
|
| 6. |
1556930
|
[1] |
Clamp
|
|
| 7. |
973924
|
[1] |
Flange screw
|
|
| 8. |
990950
|
[1] |
Flange lock nut
|
|
| 9. |
945065
|
[2] |
Plug
|
|
| 10. |
969011
|
[2] |
Gasket
|
|
