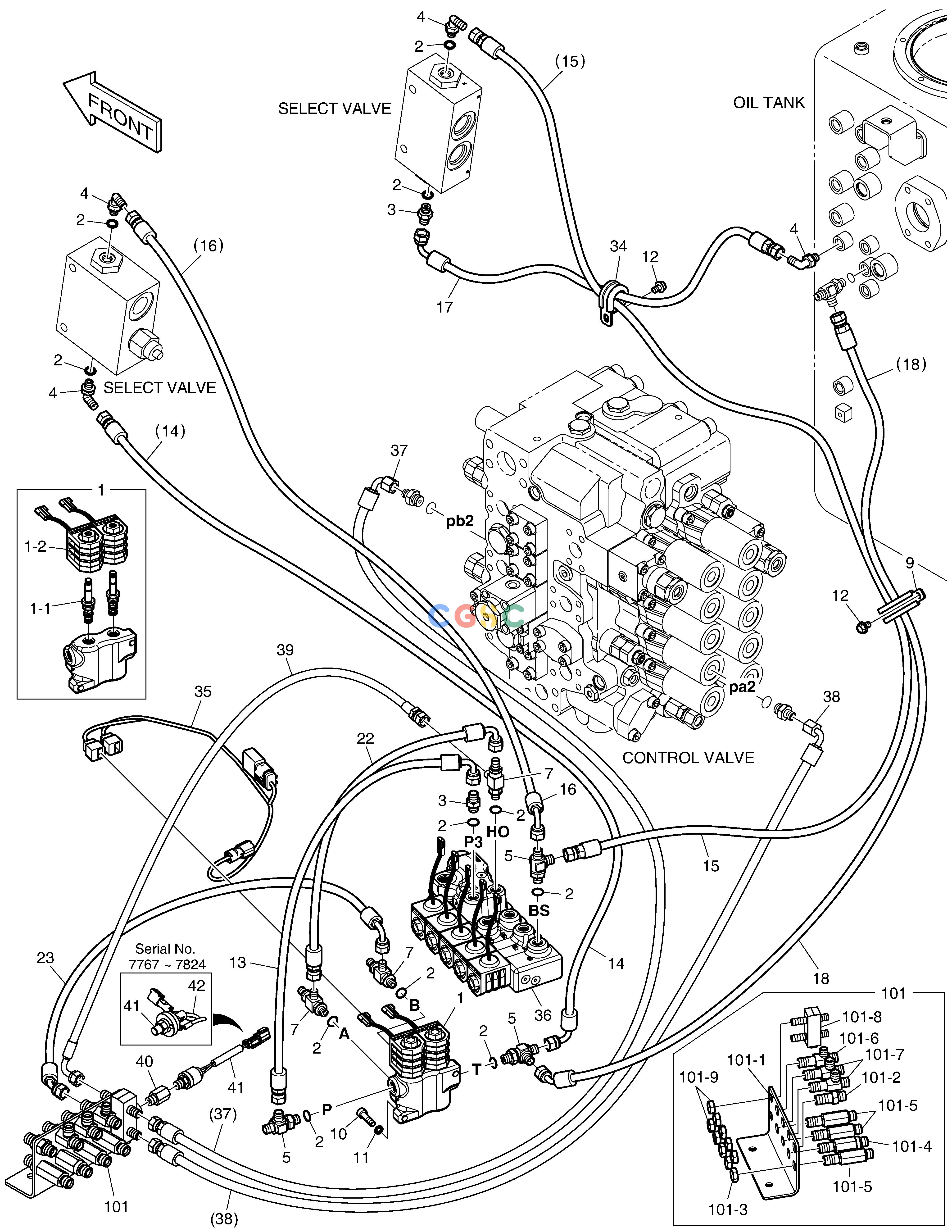

斗山零件查询PILOT PIPING - TWO WAY(1) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044674C
|
[-] |
PILOT PIPING;TWO WAY
|
|
| 1. |
426-00247B
|
[1] |
VALVE;SOLENOID
|
|
| 1-1. |
K9007363
|
[2] |
SPOOL;SOLENOID
|
|
| 1-2. |
1.519-00001
|
[2] |
COIL
|
|
| 10. |
S2209266
|
[2] |
BOLT
|
|
| 101. |
430216-00006
|
[1] |
|
|
| 101-1. |
K1000354
|
[1] |
PLATE
|
|
| 101-2. |
181-00078D1
|
[1] |
ADAPTER
|
|
| 101-3. |
121-00010D1
|
[8] |
NUT
|
|
| 101-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 101-5. |
DS2410009
|
[3] |
ADAPTER
|
|
| 101-6. |
181-00086D1
|
[1] |
TEE
|
|
| 101-7. |
181-00086D2
|
[2] |
TEE
|
|
| 101-8. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 101-9. |
121-00010D7
|
[2] |
NUT
|
|
| 11. |
S5110503
|
[2] |
WASHER
|
|
| 12. |
K1001029
|
[2] |
BOLT
|
|
| 13. |
DS2093035
|
[1] |
HOSE
|
|
| 14. |
DS2093193
|
[1] |
HOSE
|
|
| 15. |
DS2094327
|
[1] |
HOSE
|
|
| 16. |
DS2093256
|
[1] |
HOSE
|
|
| 17. |
DS2093028
|
[1] |
HOSE
|
|
| 18. |
DS2092045
|
[1] |
HOSE
|
|
| 2. |
S8000111
|
[12] |
O-RING
|
|
| 2. |
S8000111
|
[11] |
O-RING
|
|
| 22. |
DS2093202
|
[1] |
HOSE
|
|
| 23. |
DS2090008
|
[1] |
HOSE
|
|
| 3. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 34. |
124-00208D4
|
[1] |
CLIP
|
|
| 35. |
K1003638B
|
[1] |
HARNESS;JOINT
|
|
| 35. |
K1000816
|
[1] |
HARNESS
|
|
| 36. |
K1045023
|
[1] |
VALVE;SOLENOID
|
|
| 37. |
DS2093021
|
[1] |
HOSE
|
|
| 38. |
DS2093044
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 39. |
DS2093040
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 4. |
2181-1702D4
|
[4] |
ELBOW
|
|
| 40. |
DS2242017
|
[1] |
REDUCER
|
|
| 41. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 41. |
301413-00340
|
[1] |
|
|
| 42. |
530-00067
|
[1] |
HARNESS
|
|
| 5. |
2181-1951D1
|
[3] |
TEE
|
|
| 7. |
181-00779
|
[3] |
TEE
|
|
| 9. |
124-00208D6
|
[1] |
CLIP
|
|
