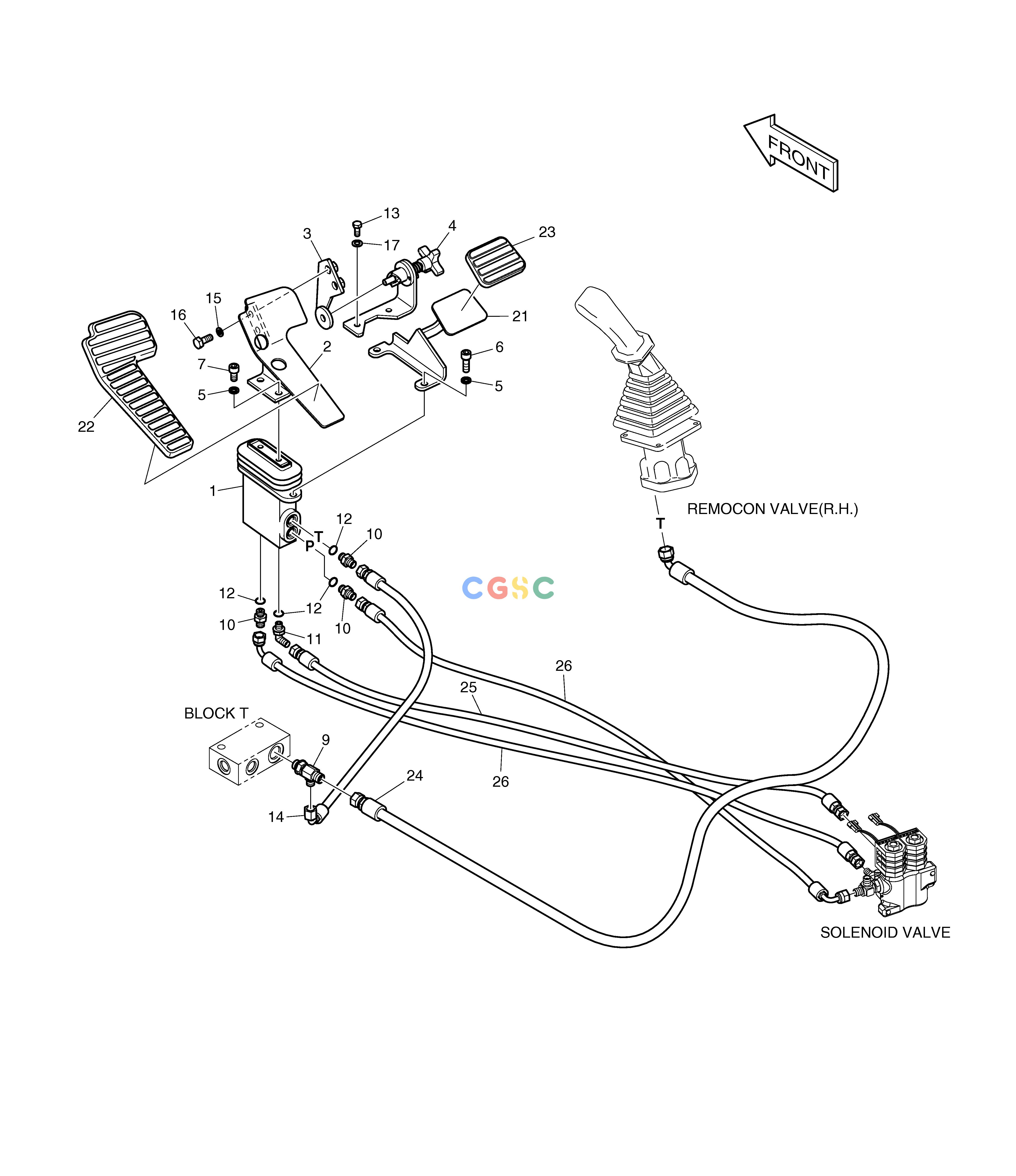

斗山零件查询PILOT PIPING - TWO WAY(2) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044710B
|
[-] |
PILOT PIPING-TWO WAY(2)
|
|
| 1. |
K1017382A
|
[1] |
PEDAL VALVE
|
|
| 10. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 11. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 12. |
S8000111
|
[4] |
O-RING
|
|
| 13. |
S0508866
|
[2] |
BOLT
|
|
| 14. |
DS2093200
|
[1] |
HOSE
|
|
| 15. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
S0512066
|
[2] |
. BOLT
|
|
| 17. |
S5102503
|
[2] |
. WASHER
|
|
| 2. |
195-01683A
|
[1] |
BRACKET,PEDAL(R.H)
|
|
| 21. |
K1003947A
|
[1] |
FOOT REST
|
|
| 22. |
161-00381
|
[1] |
RUBBER,PEDAL(R.H)
|
|
| 23. |
K1006656
|
[1] |
RUBBER,PEDAL
|
|
| 24. |
DS2095003
|
[1] |
HOSE
|
|
| 25. |
DS2094136
|
[1] |
HOSE
|
|
| 26. |
DS2093219
|
[2] |
HOSE
|
|
| 3. |
K1000695A
|
[1] |
PLATE
|
|
| 4. |
K1000696C
|
[1] |
LOCK ASS'Y
|
101544-00102
|
| 4. |
101544-00102
|
[1] |
LOCK
|
|
| 5. |
S5110603
|
[4] |
WASHER
|
|
| 6. |
S2212266
|
[2] |
BOLT
|
|
| 7. |
S2211866
|
[2] |
BOLT
|
|
| 9. |
2181-1951D6
|
[1] |
TEE
|
|
