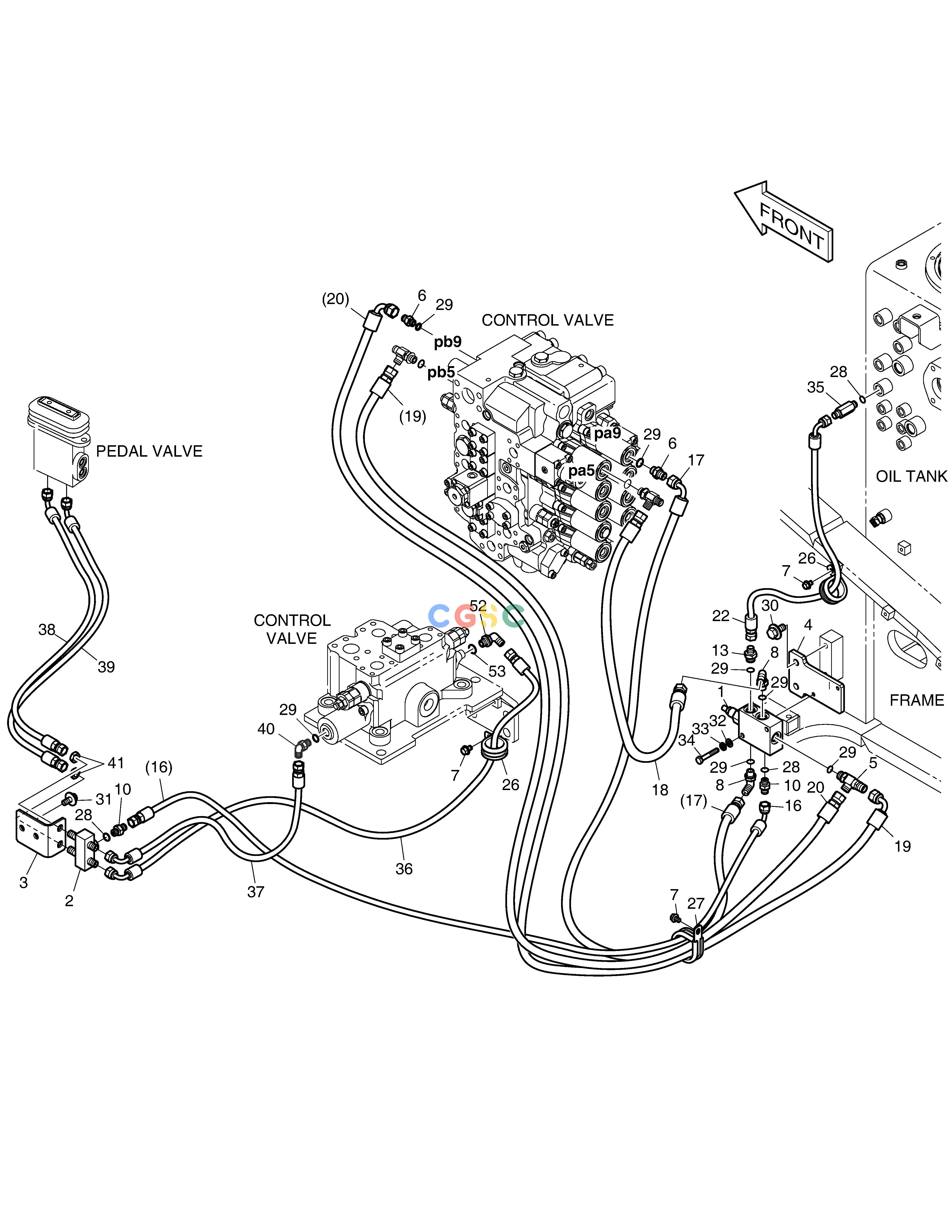

斗山零件查询PILOT PIPING(1) - ARTI.BOOM DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-14993
|
[-] |
|
|
| -. |
K1027362C
|
[-] |
PILOT PIPING;ARTI BOOM
|
|
| 1. |
K1014266
|
[1] |
VALVE;PILOT
|
|
| 10. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 13. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 16. |
DS2093338
|
[1] |
HOSE
|
|
| 17. |
DS2093134
|
[1] |
HOSE
|
|
| 18. |
DS2094074
|
[1] |
HOSE
|
|
| 19. |
DS2093372
|
[1] |
HOSE
|
|
| 2. |
420-00476
|
[1] |
VALVE;SHUTTLE
|
|
| 20. |
DS2093010
|
[1] |
HOSE
|
|
| 22. |
DS2093374
|
[1] |
HOSE
|
|
| 26. |
124-00208D6
|
[2] |
CLIP
|
|
| 27. |
124-00208D9
|
[1] |
CLIP
|
|
| 28. |
S8000111
|
[3] |
O-RING
|
|
| 29. |
S8000141
|
[7] |
O-RING
|
|
| 3. |
K1023823
|
[1] |
BRACKET
|
|
| 30. |
DS0025018
|
[2] |
BOLT
|
|
| 31. |
DS0025017
|
[2] |
BOLT
|
|
| 32. |
S5010513
|
[2] |
WASHER
|
|
| 33. |
S5102503
|
[2] |
. WASHER
|
|
| 34. |
S0556366
|
[2] |
BOLT
|
|
| 35. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 36. |
DS2093336
|
[1] |
HOSE
|
|
| 37. |
DS2093186
|
[1] |
HOSE
|
|
| 38. |
DS2093021
|
[1] |
HOSE
|
|
| 39. |
DS2093350
|
[1] |
HOSE
|
|
| 4. |
K1023824A
|
[1] |
BRACKET
|
|
| 40. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 41. |
121-00010D7
|
[2] |
NUT
|
|
| 5. |
181-00811
|
[1] |
TEE;SHUTTLE
|
|
| 52. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 53. |
S8000141
|
[1] |
O-RING
|
|
| 6. |
2181-1126D7
|
[3] |
ADAPTER
|
|
| 7. |
K1001029
|
[3] |
BOLT
|
|
| 8. |
2181-1702D5
|
[2] |
ELBOW
|
|
