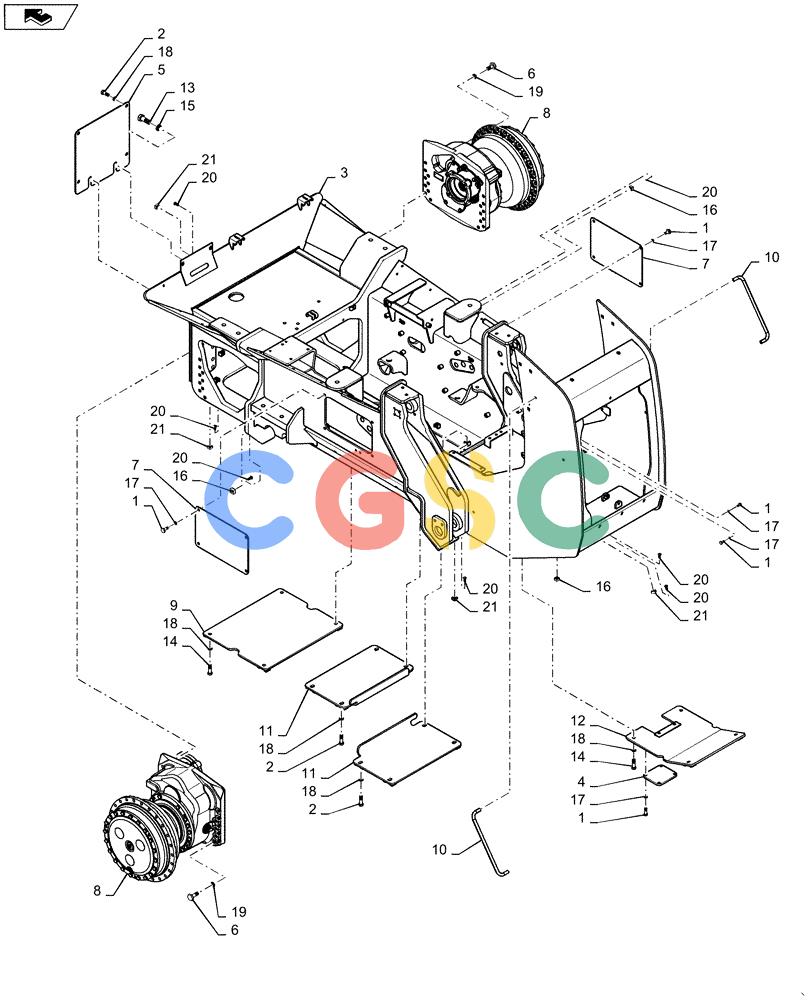

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (39.100.AB[01]) - MAIN FRAME, PAT, NARROW New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 337476 | [16] | BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9 | WIN |
| 2. | 412398 | [12] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | NH |
| 3. | 47570142 | [1] | FRAME | BUR Superseded by part number: 47741877 |
| 4. | 84375837 | [1] | PLATE | BUR |
| 5. | 84381503 | [1] | PLATE | BUR |
| 6. | 84388492 | [36] | PREV TORQUE BOLT,Hex, M20 x 80mm, Cl 10.9 | BUR |
| 7. | 84418666 | [2] | COVER | BUR |
| 8. | 47466861 | [2] | | |
| 9. | 84530201 | [1] | COVER PLATE | BUR |
| 10. | 84544971 | [2] | HANDLE | BUR |
| 11. | 84546062 | [2] | PLATE | BUR |
| 12. | 84546066 | [1] | PLATE | BUR |
| 13. | 86639036 | [2] | BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd | FAR |
| 14. | 86837482 | [8] | BOLT,Hex, M16 x 55, 10.9, Full Thd | GI |
| 15. | 87016608 | [2] | WASHER,25.8mm ID x 44.5mm OD x 5mm Thk | RAC |
| 16. | 87447306 | [12] | SQUARE NUT | CAS |
| 17. | 87655043 | [16] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR |
| 18. | 87655044 | [20] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 19. | 87655047 | [36] | SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm, HTS, BORON | BUR |
| 20. | 336371A1 | [32] | PIN | CAS |
| 21. | 405737A2 | [20] | SQUARE NUT | BUR |
