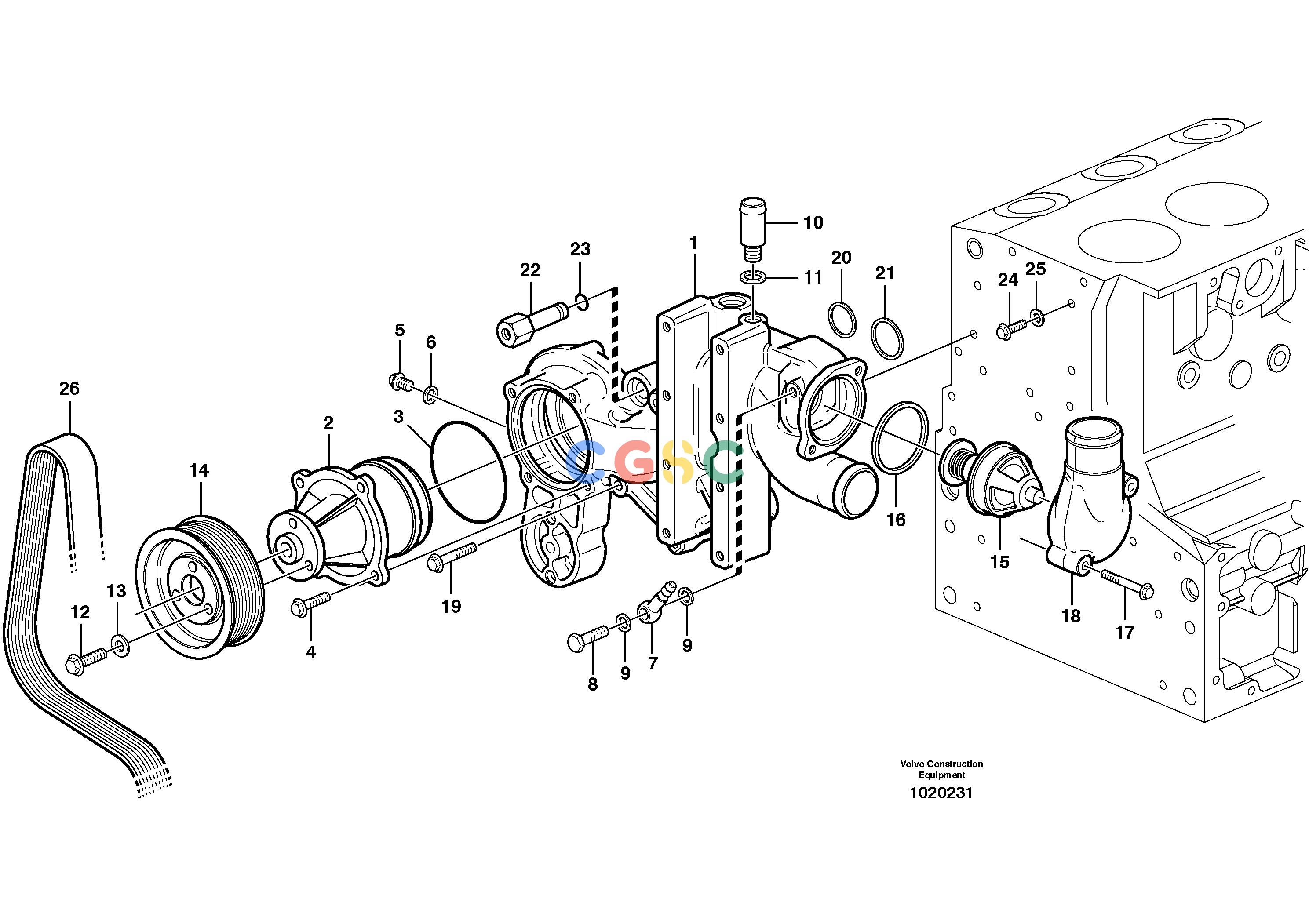

沃尔沃零件查询EC180B Water pump and thermostat housingPRIME S/N 12001-8278916-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22682952
|
[1] |
Fan console
|
ENG - 10019674
|
| |
VOE21636765
|
[1] |
Fan console
|
ENG 10019675 -
|
| 2. |
VOE21125771
|
[1] |
Coolant pump
|
|
| 3. |
VOE20502536
|
[1] |
Sealing ring
|
|
| 4. |
VOE20405885
|
[4] |
Screw
|
|
| 5. |
VOE960628
|
[1] |
Plug
|
|
| 6. |
VOE13947281
|
[1] |
Gasket
|
|
| 7. |
VOE20551429
|
[1] |
Fitting
|
|
| 8. |
VOE20460936
|
[1] |
Hollow screw
|
|
| 9. |
VOE20460061
|
[2] |
Sealing ring
|
|
| 10. |
VOE20412313
|
[1] |
Hose connection
|
|
| 11. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 12. |
VOE20405792
|
[3] |
Screw
|
|
| 13. |
VOE997823
|
[3] |
Washer
|
|
| 14. |
VOE20459960
|
[1] |
Pulley
|
|
| 15. |
VOE20450736
|
[1] |
Thermostat
|
|
| 16. |
VOE20459961
|
[1] |
Sealing ring
|
|
| 17. |
VOE20405672
|
[2] |
Screw
|
|
| 18. |
VOE20450735
|
[1] |
Outlet
|
|
| 19. |
VOE20405723
|
[5] |
Screw
|
|
| 20. |
VOE20459955
|
[1] |
Sealing ring
|
ENG - 10019674
|
| |
VOE21527767
|
[1] |
O-ring
|
ENG 10019675 -
|
| 21. |
VOE20459953
|
[1] |
Sealing ring
|
|
| 22. |
VOE20459952
|
[1] |
Connector
|
|
| 23. |
VOE20459954
|
[1] |
Sealing ring
|
|
| 24. |
VOE20405898
|
[1] |
Screw
|
|
| 25. |
VOE20459900
|
[1] |
Sealing ring
|
|
| 26. |
VOE11709635
|
[1] |
V-belt
|
|
