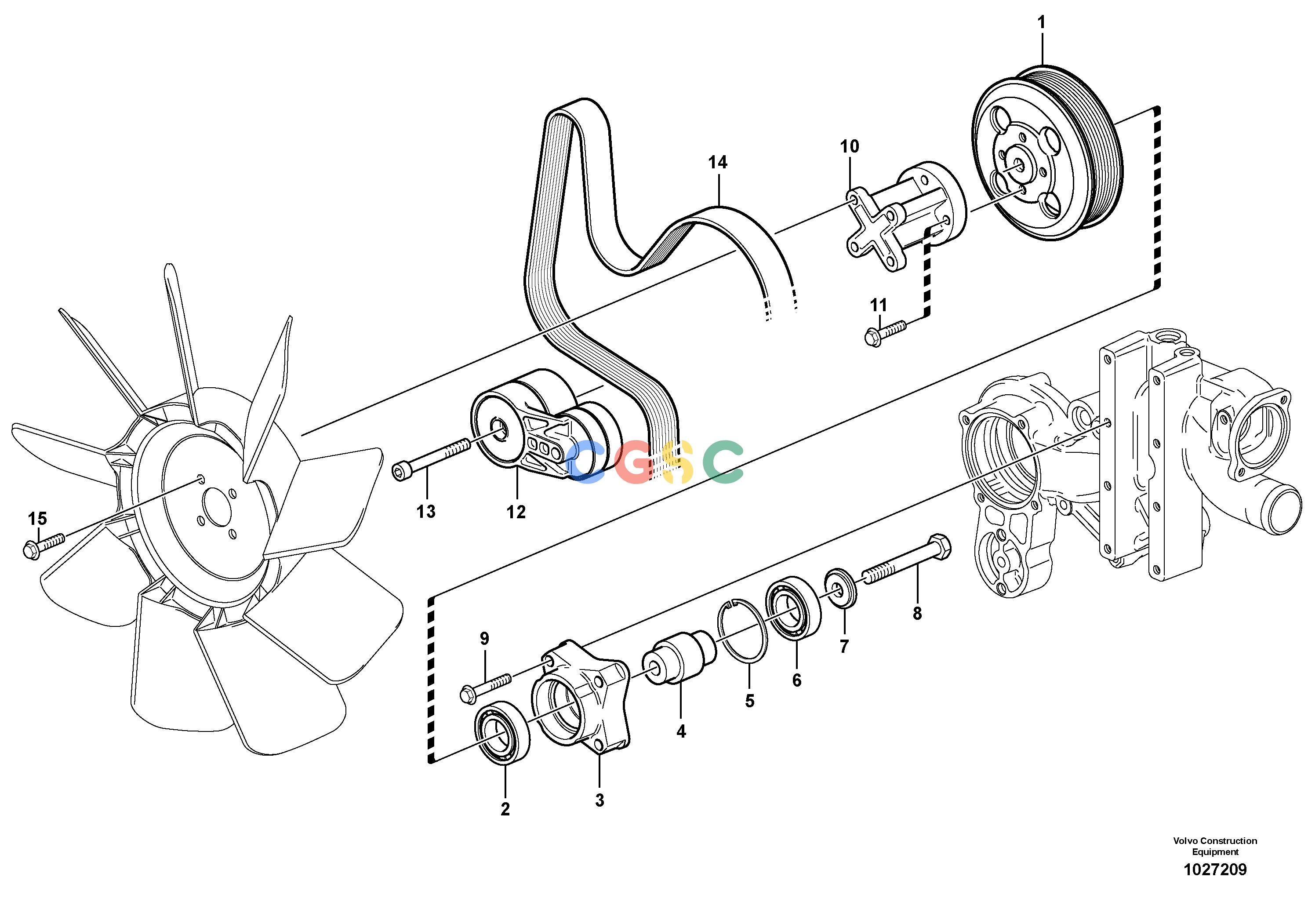

沃尔沃零件查询EC180B Belt transmissionPRIME S/N 12001-8278916-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20459863
|
[1] |
Pulley
|
|
| 2. |
VOE20450749
|
[1] |
Ball bearing
|
|
| 3. |
VOE21009704
|
[1] |
Bearing Bracket
|
ENG - 01081755
|
| 3. |
VOE21009704
|
[1] |
Bearing Bracket
|
ENG 01081756 -
|
| 4. |
VOE21009699
|
[1] |
Shaft
|
ENG - 01099344
|
| 4. |
VOE21009699
|
[1] |
Shaft
|
ENG 01099345 -
|
| 5. |
VOE20459025
|
[1] |
Retaining ring
|
|
| 6. |
VOE20450750
|
[1] |
Ball bearing
|
|
| 7. |
VOE22610786
|
[1] |
Spacer Washer
|
ENG - 01099344
|
| 7. |
VOE22610786
|
[1] |
Spacer Washer
|
ENG 01099345 -
|
| 8. |
VOE20450754
|
[1] |
Screw
|
|
| 9. |
VOE20459263
|
[4] |
Hex. socket screw
|
|
| 10. |
VOE20405988
|
[1] |
Adapter
|
|
| 11. |
VOE20405504
|
[4] |
Screw
|
|
| 12. |
VOE22089205
|
[1] |
Belt tensioner
|
ENG 01099384 -
|
| 13. |
VOE20555065
|
[1] |
Screw
|
|
| 14. |
VOE11709635
|
[1] |
V-belt
|
|
| 15. |
VOE20405885
|
[4] |
Screw
|
|
| |
VOE21099833
|
[1] |
Support
|
ENG 01099345 -
|
