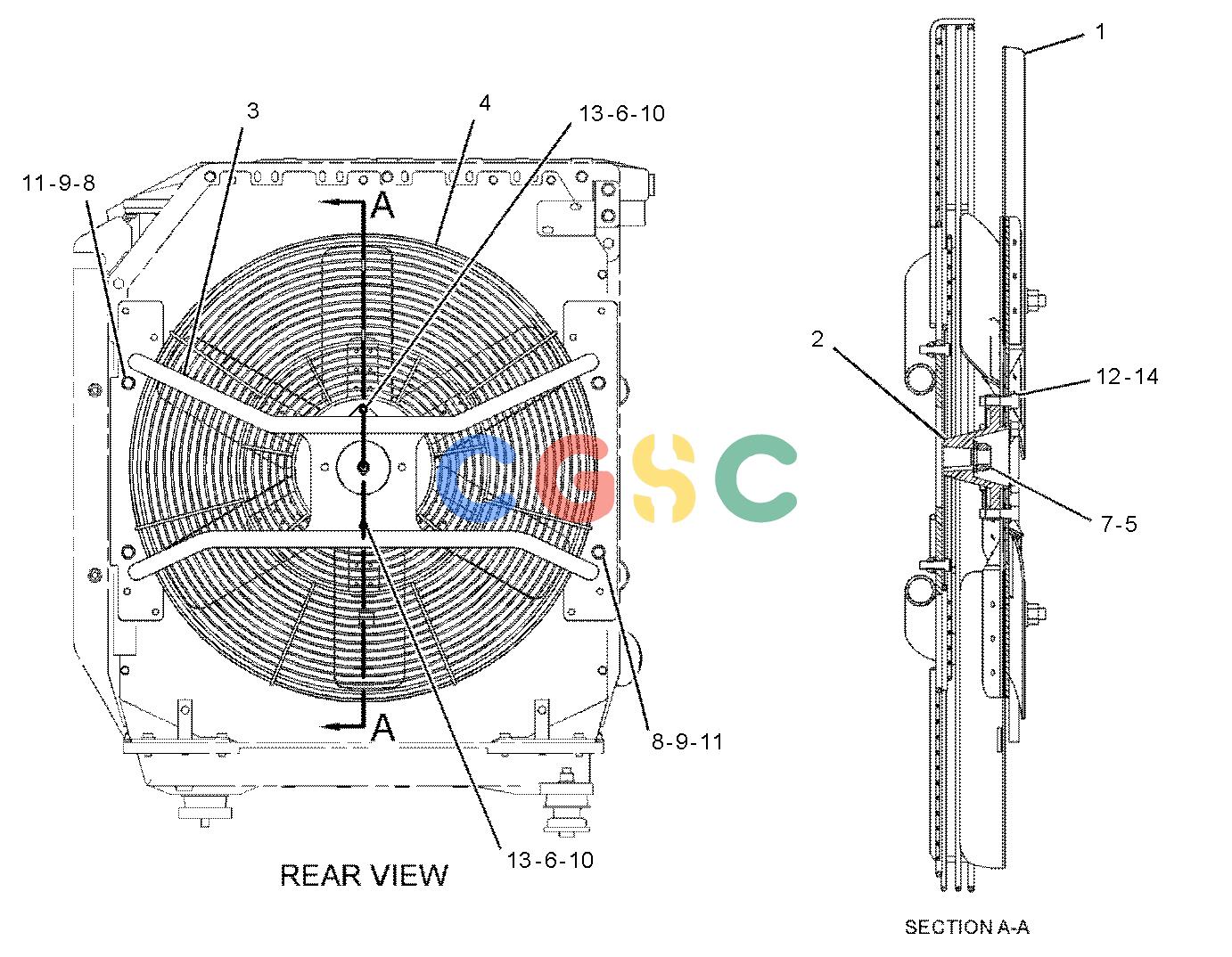

卡特零件查询（725） 139-5324: FAN GP-SUCTION
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4N-2572 | [1] | SPIDER AS-FAN(6-BLADE) | |
| 2. | 166-3297 | [1] | BOSS | |
| 3. | 173-8210 | [1] | SUPPORT AS-FAN | |
| 4. | 193-3795 | [1] | GUARD AS-FAN | |
| 5. | 2K-4821 | [1] | LOCKNUT(5/8-18-THD) | |
| 6. | 6V-9189M | [2] | LOCKNUT(M8X1.25-THD) | |
| 7. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 9. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 12. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 13. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 14. | 9B-7237 | [6] | BOLT(3/8-16X1.25-IN) | |
| | M | | METRIC PART |
