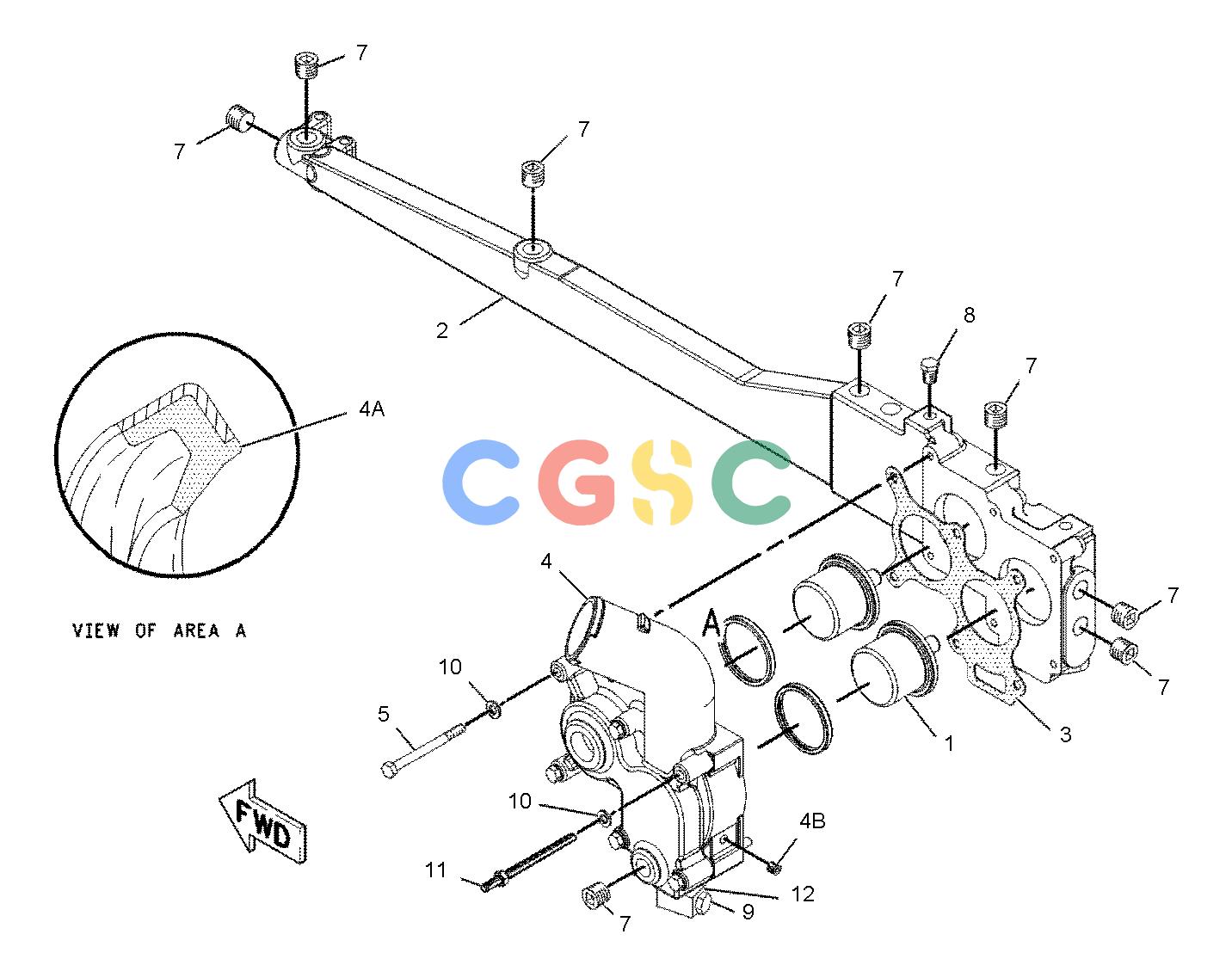

卡特零件查询（725） 170-3764: HOUSING & REGULATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
535 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-3095 | [2] | REGULATOR-TEMPERATURE(98-DEG C) | |
| 2. | 131-4163 | [1] | MANIFOLD | |
| 3. | 131-4164 | [1] | GASKET(TEMPERATURE REGULATOR) | |
| 4. | 170-4761 | [1] | HOUSING AS-REGULATOR | |
| 4A. | 3S-9643 | [2] | SEAL-LIP TYPE(REGULATOR HOUSING) | |
| 4B. | 8T-6757 | [1] | PLUG-PIPE | |
| 5. | 8T-0292M | [5] | BOLT(M8X1.25X90-MM) | |
| 7. | 8T-6762 | [8] | PLUG-PIPE(1/2-14-THD) | |
| 8. | 8T-6765 | [1] | PLUG-PIPE(1/4-18-THD) | |
| 9. | 8T-6767 | [1] | PLUG-PIPE(3/8-18-THD) | |
| 10. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 123-4511M | [1] | STUD(M8X1.25-THD) | |
| 12. | 003-2143 | [1] | ELBOW | |
| | M | | METRIC PART |
