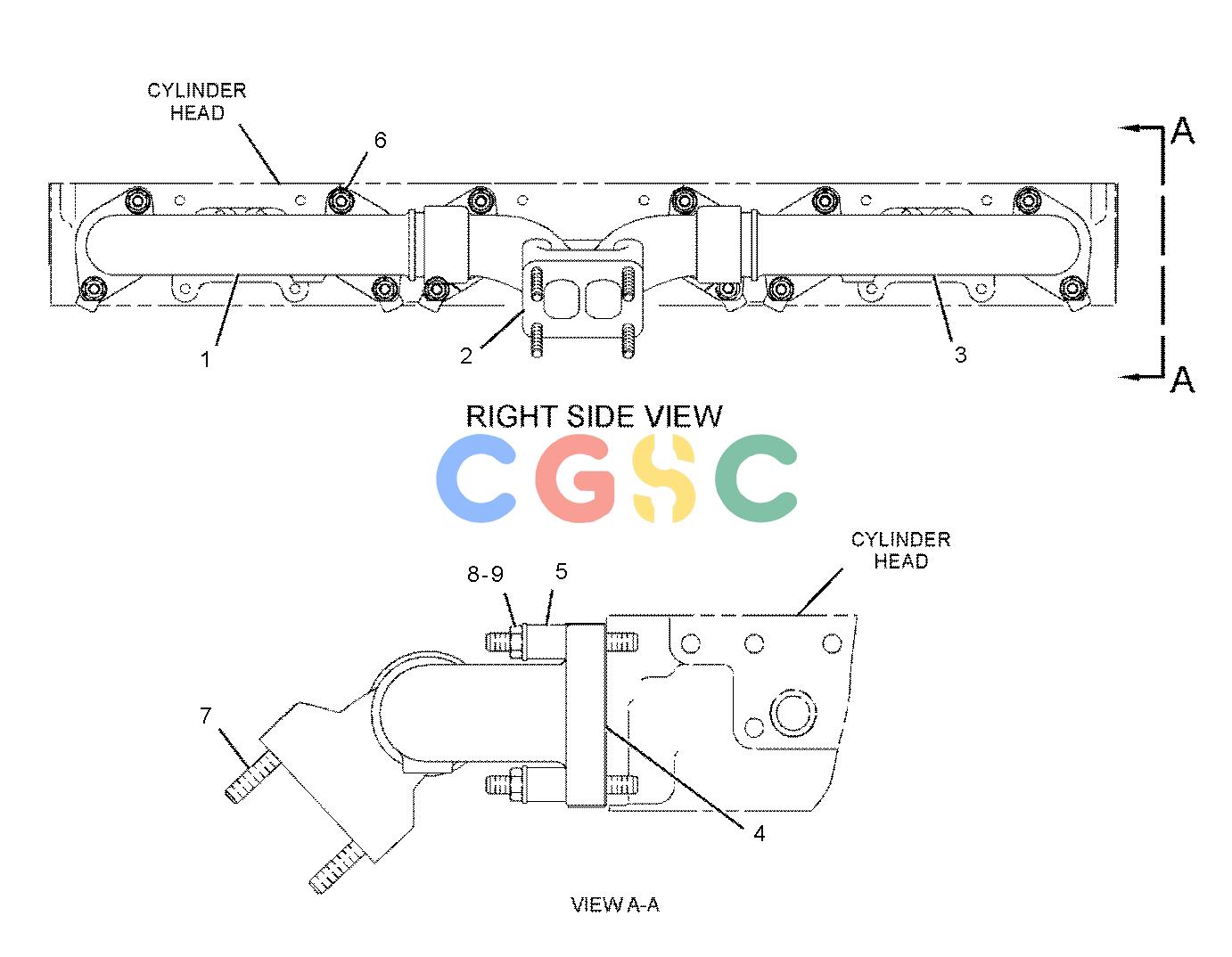

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4P-8279 | [1] | MANIFOLD-EXHAUST(REAR) | |
| 2. | 115-2989 | [1] | MANIFOLD-EXHAUST(CENTER) | |
| 3. | 4P-8280 | [1] | MANIFOLD-EXHAUST(FRONT) | |
| 4. | 109-5313 | [6] | GASKET | |
| 5. | 4P-4369 | [12] | SPACER(12X19X23.5-MM THK) | |
| 6. | 116-3715M | [12] | STUD-TAPERLOCK(M10X1.5X85-MM) | |
| 7. | 9X-8281M | [4] | STUD-TAPERLOCK(M10X1.5X45-MM) | |
| 8. | 6V-5839 | [12] | WASHER(11X21X2.5-MM THK) | |
| 9. | 3E-8017M | [12] | LOCKNUT(M10X1.5-THD) | |
| M | METRIC PART | |||
