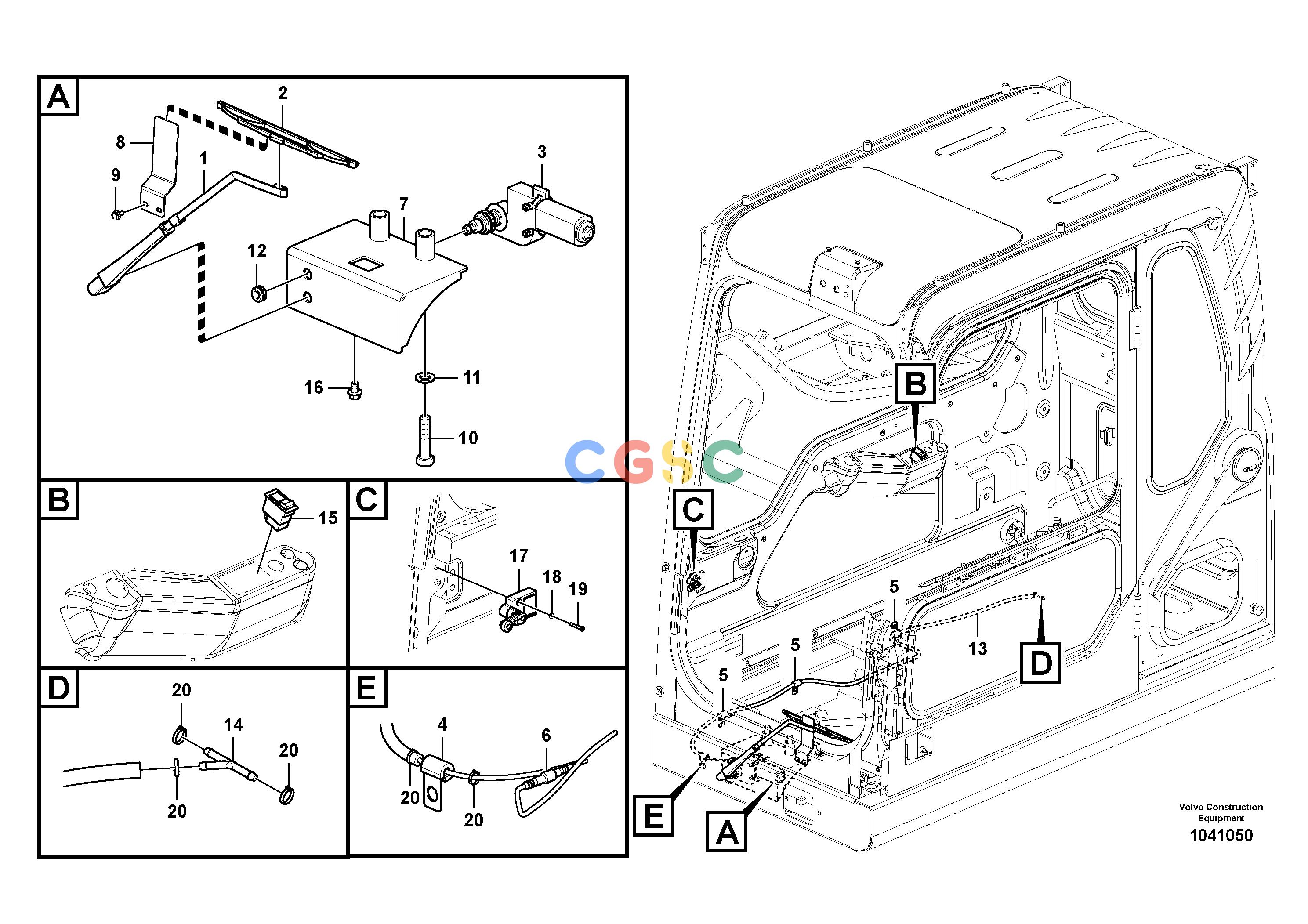

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14520379
|
[1] |
Wiper arm
|
|
| |
VOE14522326
|
[1] |
Nozzle
|
|
| 2. |
VOE14508632
|
[1] |
Wiper blade
|
|
| 3. |
VOE14508630
|
[1] |
Wiper motor
|
|
| 4. |
VOE14500291
|
[1] |
Clip
|
|
| 5. |
VOE14500291
|
[3] |
Clip
|
|
| 6. |
VOE14508637
|
[1] |
Non-return valve
|
|
| 7. |
VOE14508634
|
[1] |
Bracket
|
|
| 8. |
VOE14500190
|
[1] |
Bracket
|
|
| 9. |
VOE965175
|
[2] |
Flange screw
|
|
| 10. |
VOE997464
|
[2] |
Hexagon screw
|
|
| 11. |
VOE955900
|
[2] |
Plain washer
|
|
| 12. |
VOE14508638
|
[1] |
Grommet
|
|
| 13. |
VOE14881170
|
[1] |
Cooling hose
|
|
| 14. |
VOE14511472
|
[1] |
Nipple
|
|
| 15. |
VOE14511429
|
[1] |
Rocker switch
|
|
| 16. |
VOE946471
|
[1] |
Flange screw
|
|
| 17. |
VOE14518743
|
[1] |
Switch
|
|
| 18. |
VOE955891
|
[2] |
Plain washer
|
|
| 19. |
SA9021-10405
|
[2] |
Cross recessed screw
|
|
| 20. |
SA9314-02100
|
[5] |
Cable tie
|
|
