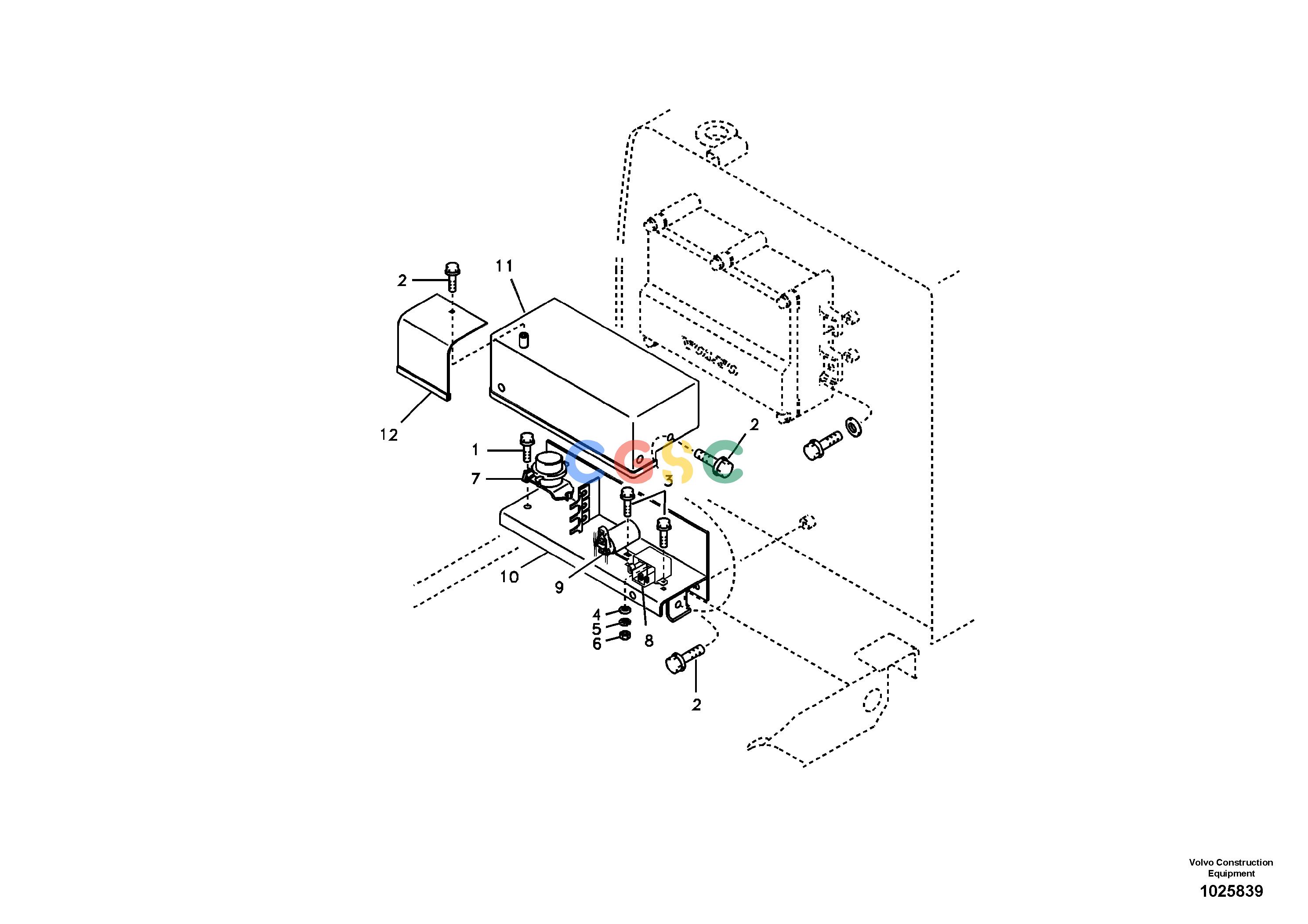

沃尔沃零件查询EC180B Electrical relayPRIME S/N 12001-8278983-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE945444
|
[2] |
Flange screw
|
|
| 2. |
VOE946471
|
[0006] |
Flange screw
|
|
| 3. |
VOE946934
|
[4] |
Flange screw
|
|
| 4. |
VOE955892
|
[2] |
Plain washer
|
|
| 5. |
VOE955919
|
[2] |
Spring washer
|
|
| 6. |
VOE993868
|
[2] |
Hexagon nut
|
|
| 7. |
VOE14639157
|
[1] |
Relay
|
|
| 8. |
VOE20491275
|
[1] |
Relay
|
PreHeater
|
| 9. |
VOE14697553
|
[1] |
Relay
|
Safety
|
| 10. |
VOE14518361
|
[1] |
Bracket
|
|
| 11. |
VOE14577928
|
[1] |
Cover
|
|
| 12. |
VOE14596485
|
[1] |
Cover
|
|
| |
VOE14880937
|
[1] |
Weatherstrip
|
|
