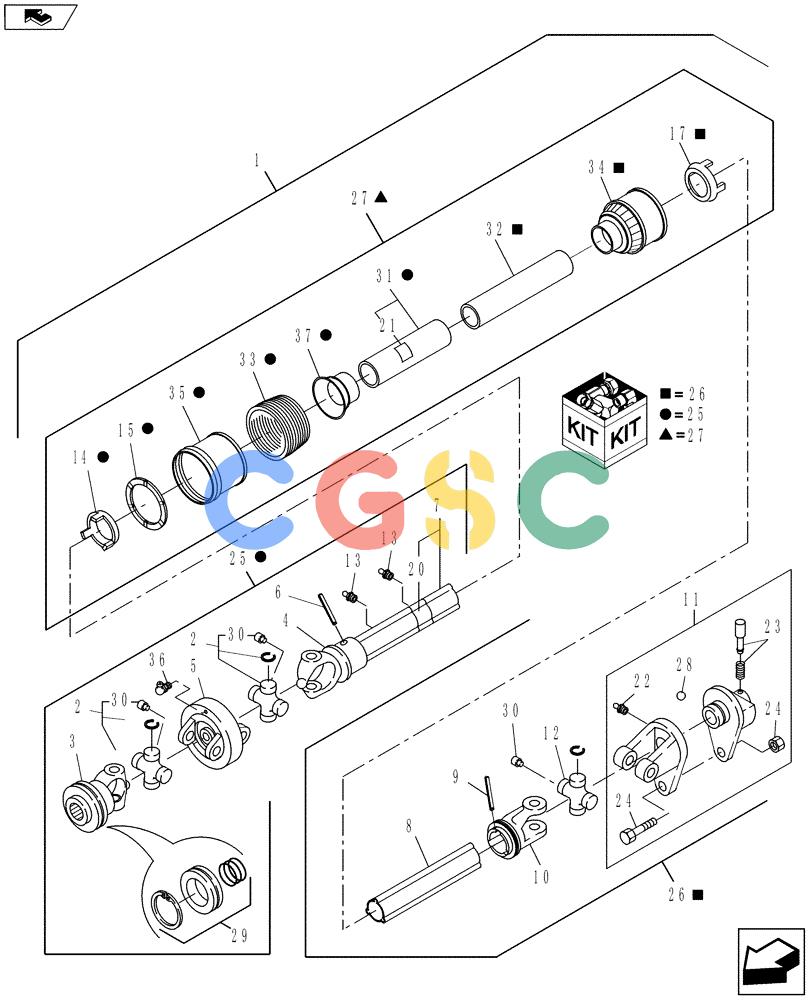

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (31.201.01[01]) - POWER TAKE OFF, 540 RPM, SHEAR BOLT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87643132
|
[1] |
PTO
|
BEL
540 RPM, Shearbolt
|
| 2. |
87517787
|
[1] |
U-JOINT SPIDER
|
BEL
|
| 3. |
87518490
|
[1] |
YOKE
|
BEL
|
| 4. |
87520072
|
[1] |
YOKE
|
BEL
|
| 5. |
87517785
|
[1] |
BODY
|
BEL
|
| 6. |
87520073
|
[1] |
ROLL PIN
|
BEL
Superseded by part number: 87586147
|
| 7. |
87520085
|
[1] |
TUBE,1170 mm L
|
BEL
Outer
|
| 8. |
87517781
|
[1] |
TUBE,1170 mm L
|
BEL
Inner
|
| 9. |
86625846
|
[1] |
PIN
|
NH
Superseded by part number: 87586150
|
| 10. |
87520076
|
[1] |
YOKE
|
BEL
|
| 11. |
87520105
|
[1] |
HUB ASSY.
|
BEL
|
| 12. |
87520078
|
[1] |
SPIDER ,U-JOINT
|
BEL
JOINT, SPIDER Superseded by part number: 84355315
|
| 13. |
87012758
|
[2] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 14. |
700708773
|
[1] |
BEARING COVER
|
CAS
|
| 15. |
87517775
|
[1] |
SHIELD
|
BEL
|
| 17. |
277839
|
[1] |
RING
|
GI
|
| 18. |
NSS
|
[5] |
NOT SOLD SEPARAT
|
CON
|
| 20. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 20. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
| 21. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 21. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 22. |
700707187
|
[1] |
NIPPLE, LUBE
|
CAS
NIPPLE
|
| 23. |
782083
|
[1] |
LOCK PIN
|
NH
|
| 24. |
87520106
|
[1] |
KIT
|
BEL
Superseded by part number: 16104414, 16044124
|
| 25. |
87520107
|
[1] |
FRONT PTO ASSY
|
BEL
|
| 26. |
87520108
|
[1] |
REAR PTO ASSY
|
BEL
|
| 27. |
87643118
|
[1] |
REPAIR KIT
|
BEL
Safety Shield
|
| 28. |
87012755
|
[23] |
BALL
|
PA
6.35mm
|
| 29. |
86625855
|
[1] |
KIT
|
NH
Ball Collar Superseded by part number: 87461438
|
| 30. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 36. |
933205R91
|
[1] |
LUBE NIPPLE,90 Degree, M8 x 1.25
|
IH
|
