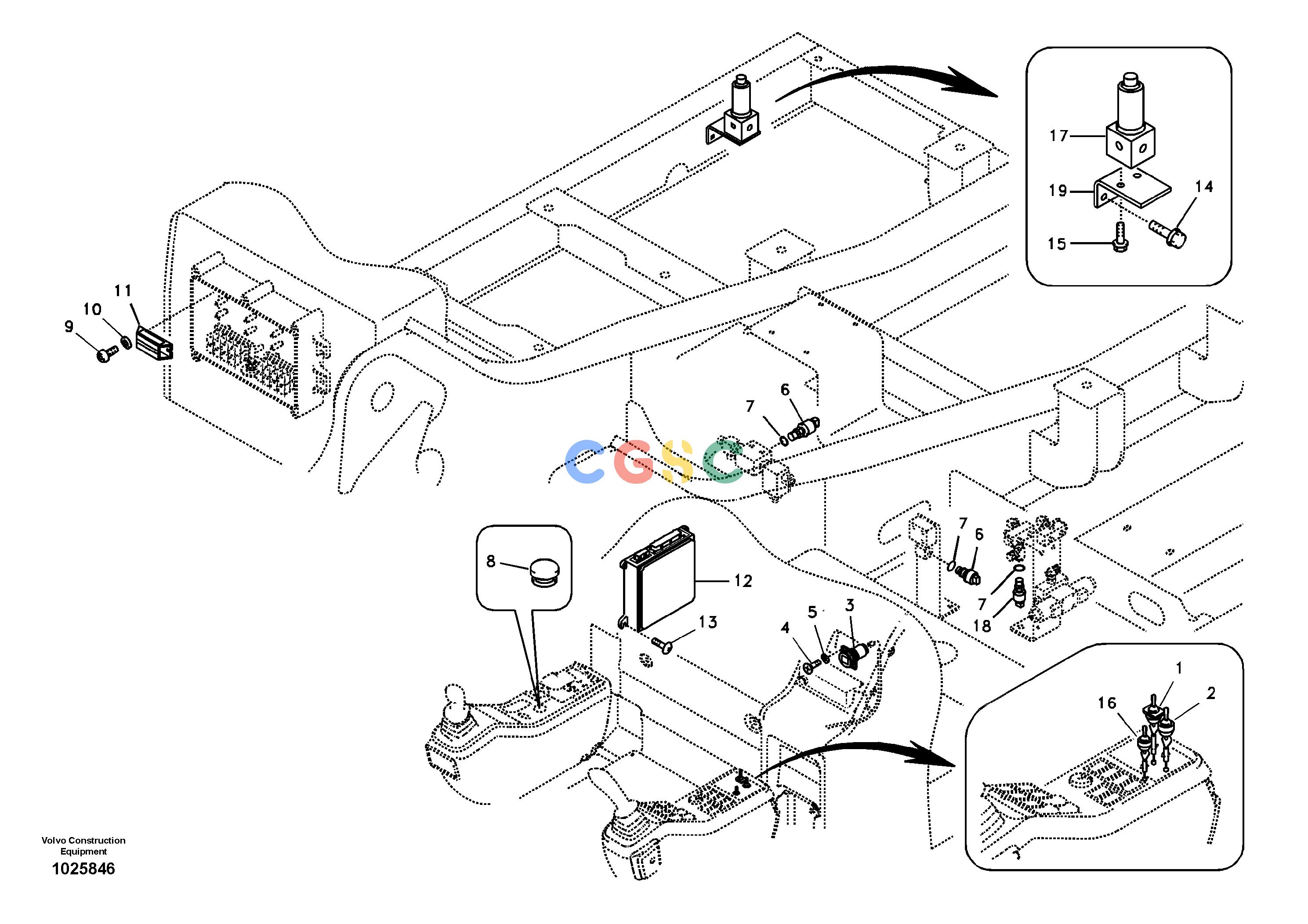

沃尔沃零件查询EC180B Electronic unitPRIME S/N 12001-8278983-8278456NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14504156
|
[1] |
Switch
|
|
| 2. |
VOE14616040
|
[1] |
Toggle switch
|
|
| 3. |
VOE14508669
|
[1] |
Socket
|
|
| 4. |
SA9021-10302
|
[4] |
Cross recessed screw
|
|
| 5. |
SA9213-03000
|
[4] |
Spring washer
|
|
| 6. |
VOE14562193
|
[2] |
Switch
|
|
| 7. |
VOE983502
|
[2] |
O-ring
|
|
| 8. |
VOE14501960
|
[1] |
Rubber cover
|
|
| 9. |
VOE997500
|
[2] |
Six point socket screw
|
|
| 10. |
VOE955892
|
[2] |
Plain washer
|
|
| 11. |
VOE14529298
|
[1] |
Resistor
|
|
| 12. |
VOE14518349
|
[1] |
ECU
|
|
| 13. |
VOE945444
|
[4] |
Flange screw
|
|
| 14. |
VOE946441
|
|
Flange screw
|
|
| 15. |
VOE946440
|
|
Flange screw
|
|
| 16. |
VOE14663553
|
|
Toggle switch
|
|
| 17. |
VOE14529303
|
|
Valve
|
|
| 18. |
VOE14529295
|
|
Switch
|
|
| 19. |
VOE14529305
|
|
Bracket
|
|
