沃尔沃零件查询EC180B SwitchPRIME S/N 12001-8278983-8277144NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
582 次

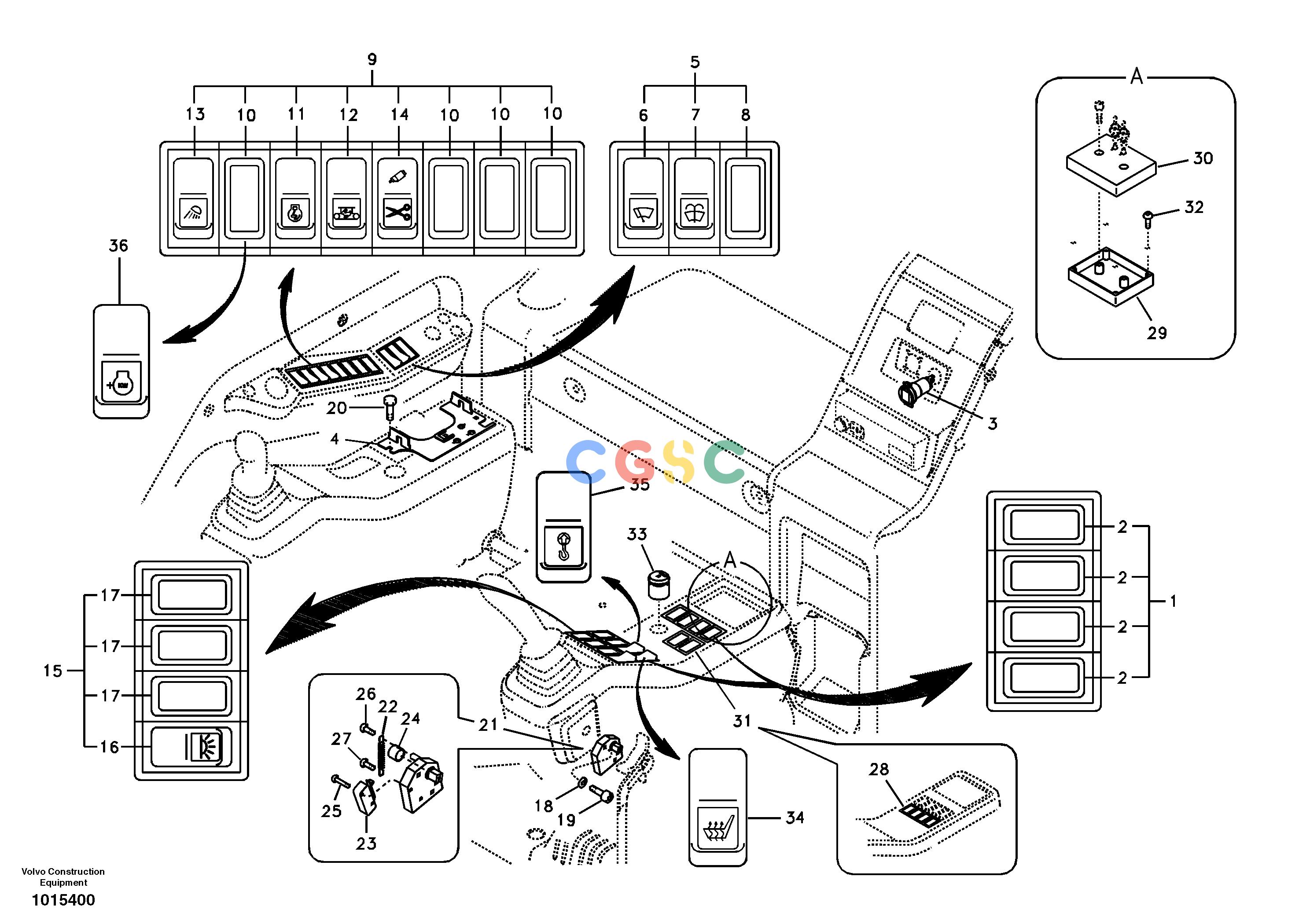

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14502714
|
[3] |
Switch
|
BLANK
|
| 2. |
VOE14529148
|
[4] |
Cover
|
|
| 3. |
VOE14508603
|
[1] |
Socket
|
|
| 4. |
VOE14565287
|
[1] |
Bracket
|
|
| |
SA9572-42450
|
[1] |
Weatherstrip
|
|
| 5. |
VOE14538724
|
[1] |
Switch
|
|
| 6. |
VOE14505609
|
[1] |
Switch
|
UPPER WIPER
|
| 7. |
VOE14538729
|
[1] |
Switch
|
|
| 8. |
VOE14529148
|
[1] |
Cover
|
|
| 9. |
VOE14544029
|
[1] |
Switch
|
ROCKER 8
|
| 10. |
VOE14529148
|
[4] |
Cover
|
|
| 11. |
VOE14529185
|
[1] |
Switch
|
|
| 12. |
VOE14544028
|
[1] |
Switch
|
|
| 13. |
VOE14529227
|
[1] |
Switch
|
|
| 14. |
VOE14507432
|
[1] |
Rocker switch
|
BOOSTER
|
| 15. |
VOE14507298
|
[1] |
Rocker switch
|
ROCRER 4
|
| 16. |
VOE14529183
|
[1] |
Switch
|
|
| 17. |
VOE14529148
|
[3] |
Cover
|
|
| 18. |
VOE13940090
|
[3] |
Washer
|
|
| 19. |
SA9016-10503
|
[3] |
Hex. socket screw
|
|
| 20. |
VOE947107
|
[3] |
Flange screw
|
|
| 21. |
VOE14502716
|
[1] |
Lock lever
|
|
| 22. |
VOE14502721
|
[1] |
Spring
|
|
| 23. |
VOE14661022
|
[1] |
Switch
|
|
| 24. |
VOE14503053
|
[1] |
Bushing
|
|
| 25. |
SA9021-10303
|
[2] |
Cross recessed screw
|
|
| 26. |
SA9021-10402
|
[1] |
Cross recessed screw
|
|
| 27. |
SA9021-10404
|
[1] |
Cross recessed screw
|
|
| 28. |
|
[1] |
Switch
|
|
| 29. |
VOE14524419
|
[1] |
Bracket
|
|
| 30. |
VOE14524420
|
[1] |
Cover
|
|
| 31. |
SA1023-05050
|
[1] |
Cover
|
|
| 32. |
SA9021-10403
|
[4] |
Cross recessed screw
|
|
| 33. |
VOE14530130
|
[1] |
Hour counter
|
|
| 34. |
VOE14529206
|
|
Switch
|
|
| 35. |
VOE14529211
|
|
Switch
|
|
| 36. |
VOE14502010
|
|
Rocker switch
|
POWER MAX MODE
|
