纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (88.100.89) - DIA, WINCH New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

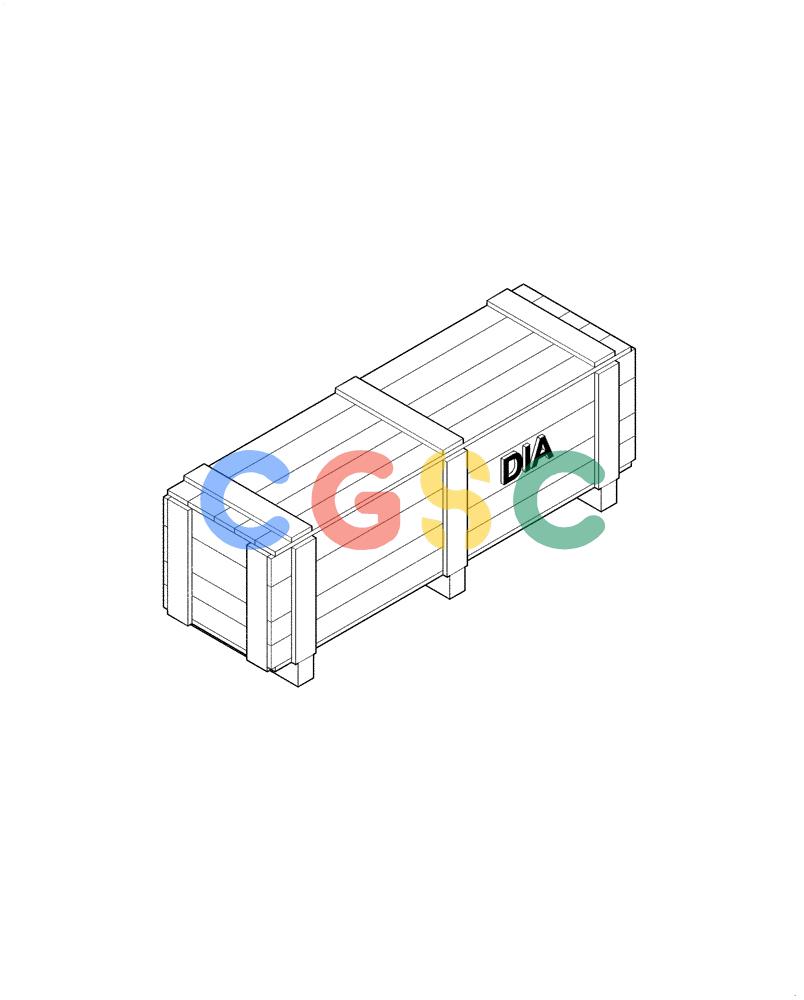

| 1. | 47789674 | [1] | KIT | BURDIA, Winch |
| 2. | 47795660 | [1] | INSTRUCTION | BURDIA, Winch |
| 3. | 47743828 | [1] | ELBOW | BUR |
| 4. | 300389 | [4] | BOLT,M12 x 1.75 x 35mm | NH Superseded by part number: 628-12035 |
| 5. | 47743834 | [1] | HYD CONNECTOR | BUR |
| 6. | 9846956 | [1] | 90 ELBOW,90°, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS | BAS |
| 7. | 86050202 | [1] | HOSE CLAMP,39.6mm - 63.5mm | NH |
| 8. | 84256799 | [1] | 90 ELBOW | BUR |
| 9. | 84387418 | [1] | HOSE ASSY.,25.4mm ID x 558mm L, SAE 100R17 | BUR |
| 10. | 84387419 | [1] | HOSE ASSY.,38.1mm ID x 777mm L, SAE 100R4 | BUR |
| 11. | 87331905 | [1] | HYDROSTATIC PUMP,65.6 CC | BUR |
| 11. | 87331905R | [1] | REMAN-HYDROSTATIC PUMP | BUR |
| 11. | 87331905C | [1] | CORE-HYDROSTATIC PUMP | BURReturn Number |
| 12. | 87655043 | [4] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR |
