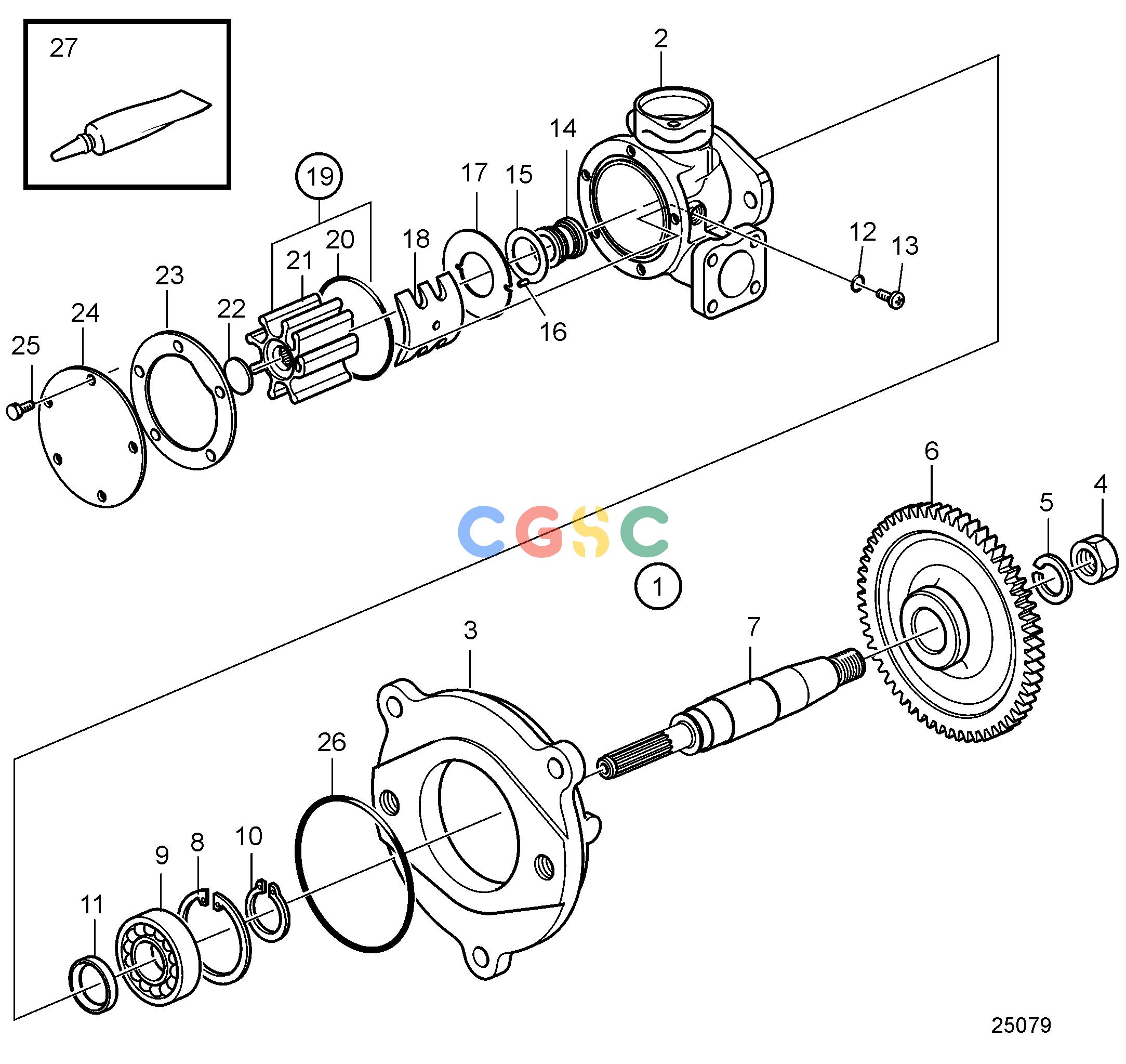

沃尔沃零件查询D11B1-A MP; D11B2-A MPCooling SystemSea Water Pump, Components, for Engines with IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21219723
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3587886
|
[1] |
Hexagon nut
|
|
| 5. |
941914
|
[1] |
Spring washer
|
|
| 6. |
3161258
|
[1] |
Gear
|
|
| 7. |
|
|
|
|
| 8. |
812953
|
[1] |
Lock ring
|
|
| 9. |
3587881
|
[1] |
Bearing
|
|
| 10. |
812951
|
[1] |
Lock ring
|
|
| 11. |
3587882
|
[1] |
Seal
|
|
| 12. |
3583614
|
[1] |
O-ring
|
|
| 13. |
21277478
|
[1] |
Cross recessed screw
|
|
| 14. |
3829315
|
[1] |
Sealing ring
|
|
| 15. |
812964
|
[1] |
Deflector ring
|
|
| 16. |
3817937
|
[1] |
Pivot pin
|
|
| 17. |
826230
|
[1] |
Wear washer
|
|
| 18. |
21277458
|
[1] |
Cam
|
|
| 19. |
21430184
|
[1] |
Impeller kit
|
|
| 20. |
925259
|
[1] |
O-ring
|
|
| 21. |
|
|
|
|
| 22. |
812966
|
[1] |
Splined gasket
|
|
| 23. |
3829314
|
[1] |
Gasket
|
|
| 24. |
21277456
|
[1] |
Cover
|
|
| 25. |
3583604
|
[5] |
Hexagon screw
|
|
| 26. |
925259
|
[1] |
O-ring
|
|
| 27. |
3862178
|
[1] |
Grease
|
|
