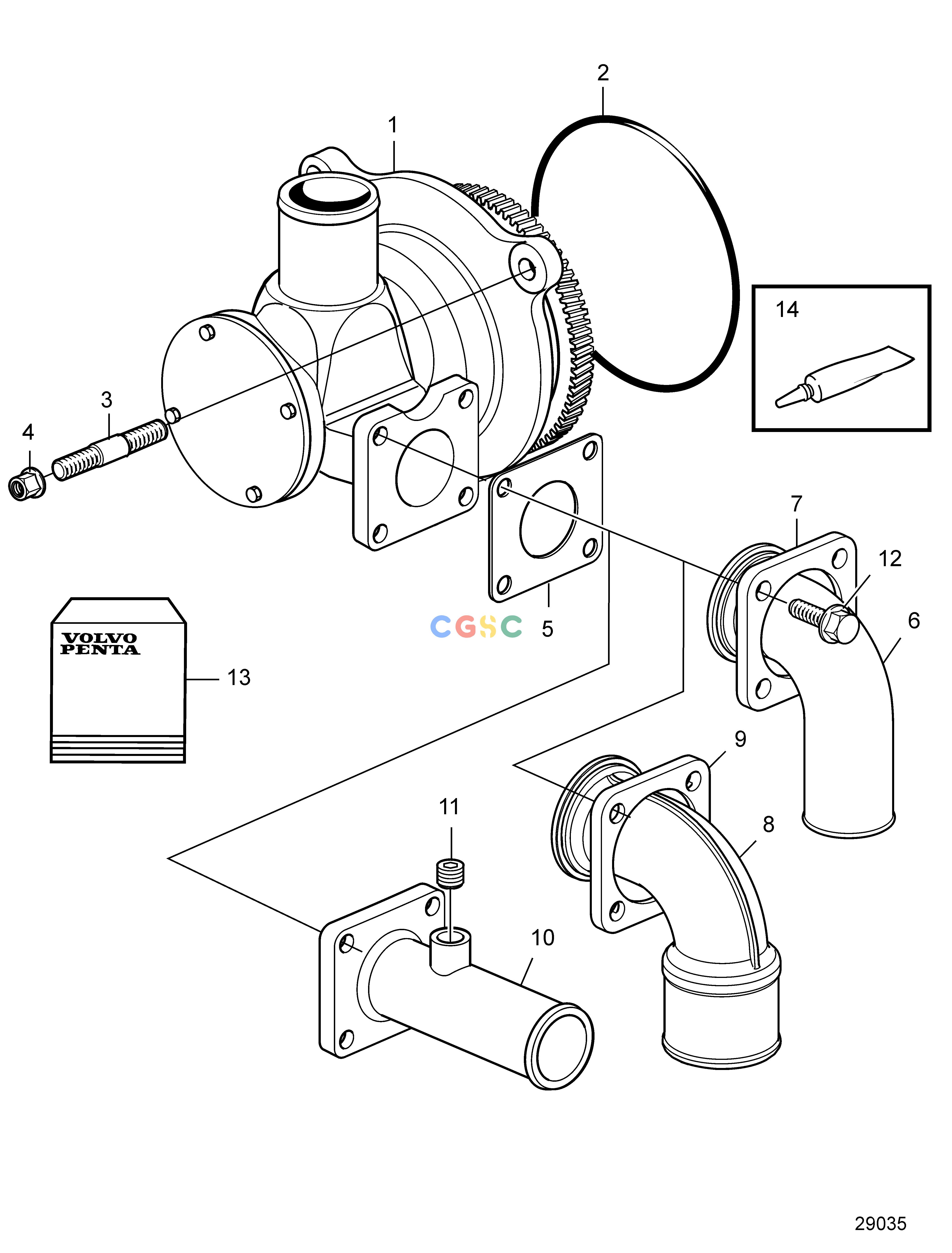

沃尔沃零件查询D11B1-A MP; D11B2-A MPCooling SystemSee Water Pump, for Engine with Reverse Gear or IPS. SN7011297246-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22063494
|
[1] |
Sea water pump
|
|
| 1. |
|
|
|
|
| 2. |
949735
|
[1] |
O-ring
|
|
| 3. |
953098
|
[3] |
Stud
|
|
| 4. |
990942
|
[3] |
Flange nut
|
|
| 5. |
3888837
|
[1] |
Gasket
|
|
| 6. |
848596
|
[1] |
Hose attachment
|
For reverse gear
|
| 7. |
842029
|
[1] |
Flange
|
|
| 8. |
22023210
|
[1] |
Hose attachment
|
For IPS
|
| 9. |
22023397
|
[1] |
Flange
|
|
| 10. |
21120684
|
[1] |
Pipe
|
KC, Straight connection
|
| 11. |
968063
|
[1] |
Plug
|
M16
|
| 12. |
990861
|
[4] |
Flange screw
|
|
| 13. |
21730348
|
[1] |
Impeller kit
|
|
| 13. |
3819486
|
[1] |
Impeller
|
|
| 13. |
3587885
|
[1] |
O-ring
|
|
| 14. |
3862178
|
[1] |
Grease
|
|
