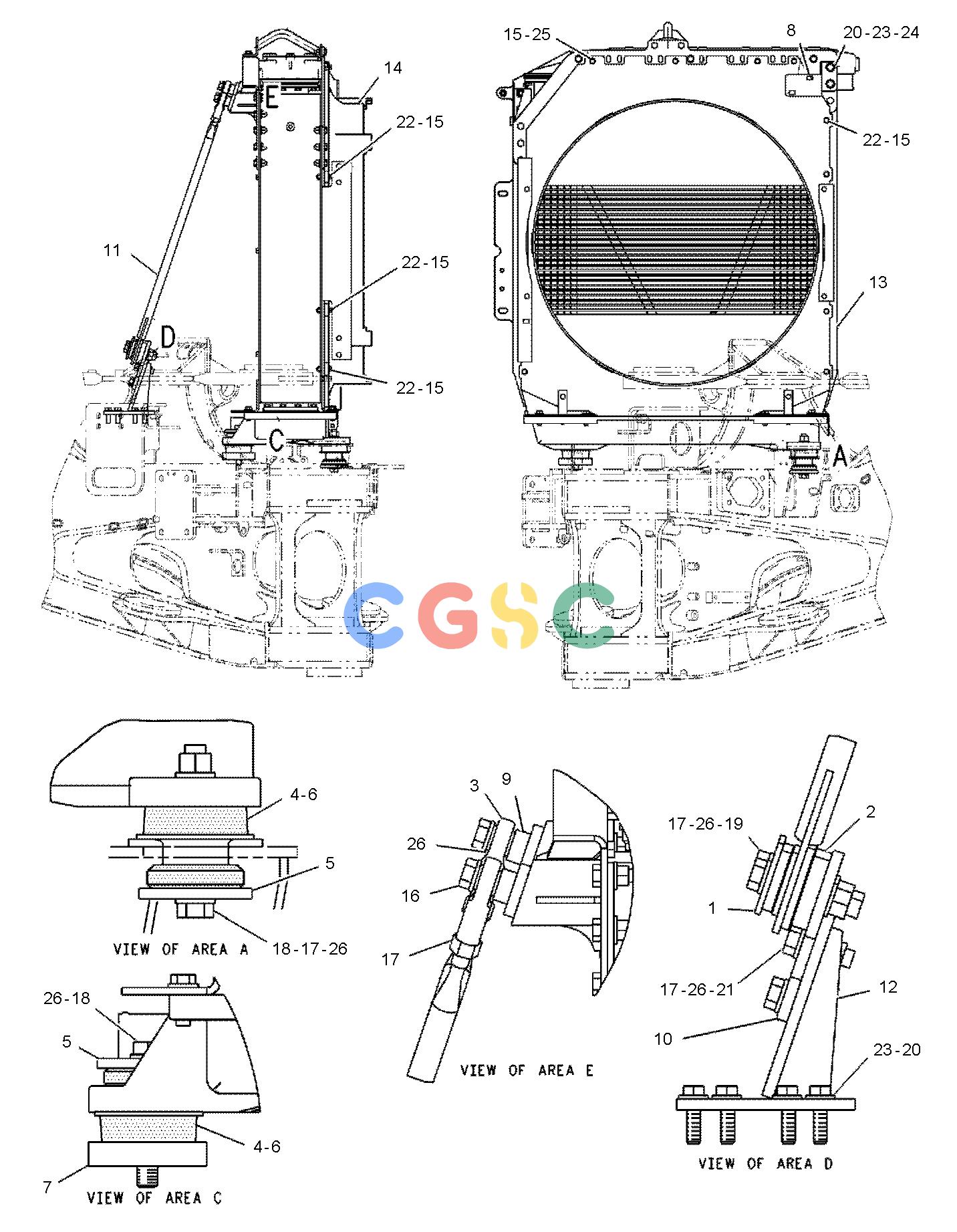

卡特零件查询（725） 191-9262: RADIATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
769 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7U-8704 | [2] | WASHER(17X65X5-MM THK) | |
| 2. | 8G-0841 | [2] | MOUNT AS | |
| 3. | 9R-4760 | [2] | ROD END(SPHERICAL BEARING) | |
| 4. | 9W-9915 | [2] | MOUNT AS | |
| 5. | 9W-9952 | [2] | WASHER(16.75X86X8-MM THK) | |
| 6. | 9W-9953 | [2] | SLEEVE | |
| 7. | 173-3622 | [1] | WASHER(18X100X20-MM THK) | |
| 8. | 174-6793 | [1] | BRACKET(VALVE MOUNTING) | |
| 9. | 188-6084 | [2] | SPACER(16.5X30X3.2-MM THK) | |
| 10. | 188-6399 | [1] | PLATE | |
| 11. | 189-3545 | [2] | BAR AS | |
| | | | (EACH INCLUDES) |
| | 6U-2097 | [1] | BUSHING | |
| 12. | 191-9008 | [1] | BRACKET AS | |
| 13. | 191-9263Y | [1] | RADIATOR GP | |
| 14. | 213-1676 | [1] | SHROUD AS-FAN | |
| 15. | 7X-0579 | [11] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 16. | 7X-2554M | [2] | BOLT(M16X2X70-MM) | |
| 17. | 8T-4132M | [7] | NUT(M16X2-THD) | |
| 18. | 8T-4174M | [2] | BOLT(M16X2X120-MM) | |
| 19. | 8T-4175M | [2] | BOLT(M16X2X90-MM) | |
| 20. | 8T-4183M | [6] | BOLT(M12X1.75X40-MM) | |
| 21. | 8T-4193M | [2] | BOLT(M16X2X50-MM) | |
| 22. | 8T-4197M | [7] | BOLT(M8X1.25X40-MM) | |
| 23. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 25. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 26. | 9X-8257 | [13] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
