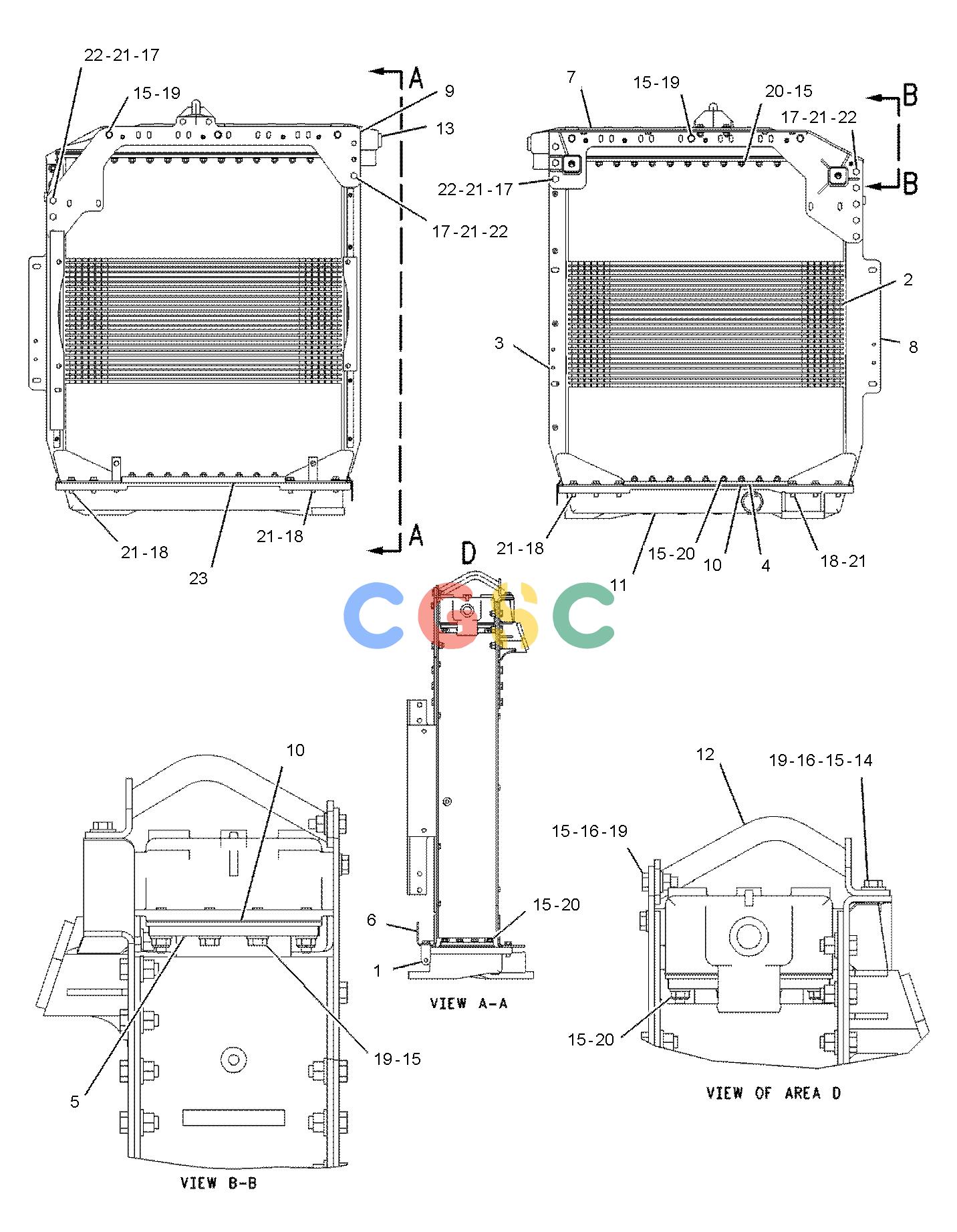

卡特零件查询（725） 191-9263: RADIATOR GP
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 149-1259 | [1] | BRACKET | |
| 2. | 166-6974 | [1] | CORE | |
| 3. | 166-6975 | [1] | SUPPORT AS | |
| 4. | 167-1129 | [4] | STRIP-STIFFENER | |
| 5. | 167-1130 | [4] | STRIP-STIFFENER | |
| 6. | 174-6794 | [2] | BRACKET | |
| 7. | 191-9264 | [1] | SUPPORT AS-FRONT | |
| 8. | 191-9268 | [1] | SUPPORT AS | |
| 9. | 191-9270 | [1] | SUPPORT AS-REAR | |
| 10. | 192-3192 | [2] | GASKET | |
| 11. | 197-0069 | [1] | TANK AS-RADIATOR BOTTOM | |
| | 197-0070 | [4] | STUD-TAPERLOCK | |
| 12. | 197-1547 | [1] | BRACKET AS | |
| 13. | 197-6793 | [1] | TANK AS-RADIATOR TOP | |
| | 197-0070 | [4] | STUD-TAPERLOCK | |
| 14. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 15. | 8T-4121 | [86] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [12] | NUT(M10X1.5-THD) | |
| 17. | 8T-4139M | [12] | BOLT(M12X1.75X30-MM) | |
| 18. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 19. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 20. | 8T-4196M | [64] | BOLT(M10X1.5X35-MM) | |
| 21. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 8T-4244M | [12] | NUT(M12X1.75-THD) | |
| 23. | 5P-5755D | | SEAL(0.6-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
