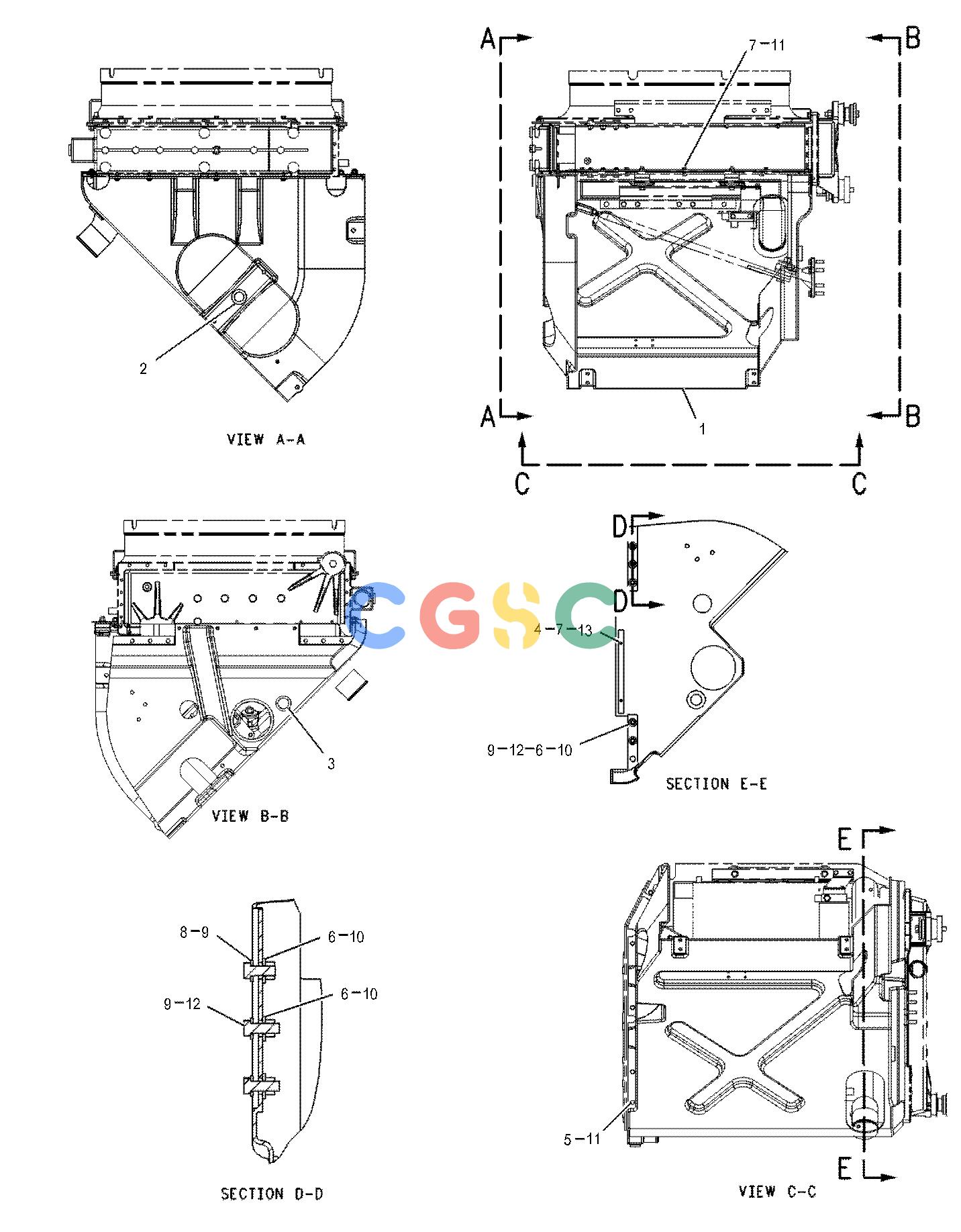

卡特零件查询（725） 166-7555: SHROUD GP-RADIATOR
广数供应链运营团队, 14 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 176-6277 | [1] | DUCT-RADIATOR | |
| 2. | 176-6279 | [1] | BUSHING-RUBBER | |
| 3. | 176-6404 | [1] | BUSHING-RUBBER | |
| 4. | 201-1370 | [1] | BAR-SUPPORT | |
| 5. | 5P-1075 | [5] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 6. | 5P-1076 | [5] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 9. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4244M | [5] | NUT(M12X1.75-THD) | |
| 11. | 8T-4908M | [9] | BOLT(M8X1.25X25-MM) | |
| 12. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 13. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
