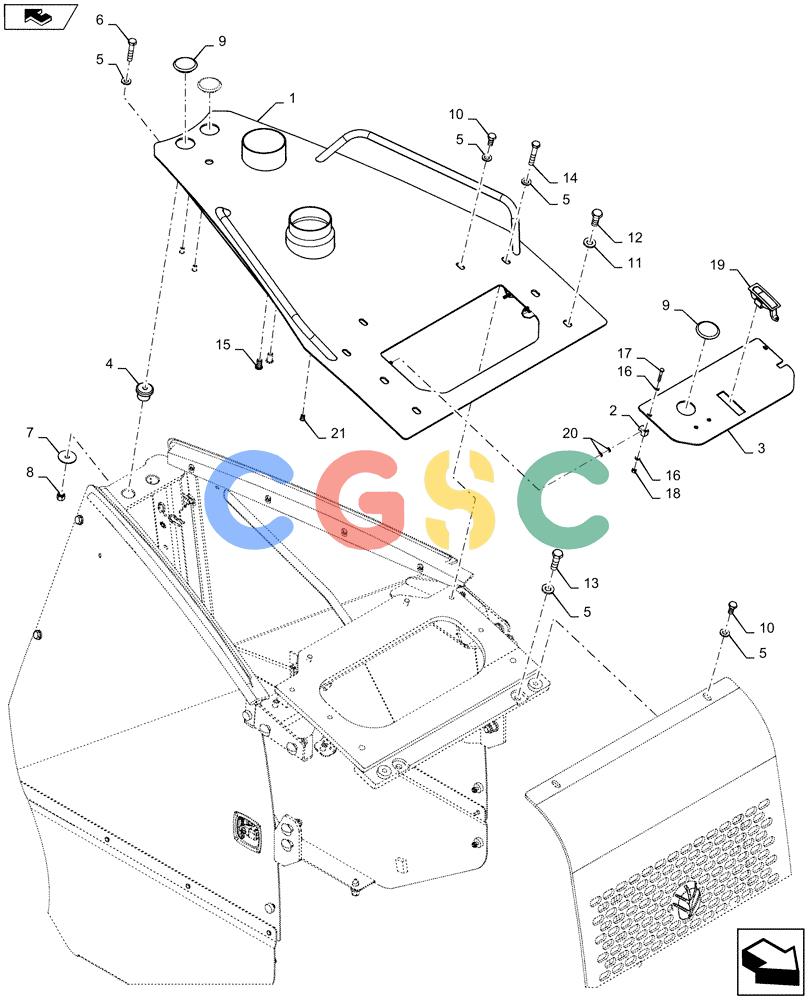

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.100.AU[01]) - TOP COVER, HOOD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47506856 | [1] | PLATE | BUR Superseded by part number: 47534268 |
| 2. | 87440322 | [2] | HINGE | BUR |
| 3. | 47503641 | [1] | PLATE | BUR Superseded by part number: 47545151 |
| 4. | R29799 | [2] | SHOCK ABSORBER | CAS |
| 5. | 87655043 | [21] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR |
| 6. | 43263 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | BAS |
| 7. | R40262 | [2] | WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk | CAS |
| 8. | 87497918 | [4] | NUT | BRR |
| 9. | 14508287 | [3] | PLUG | LEC |
| 10. | 398792 | [5] | SCREW,Hex, M12 x 25mm, Cl 10.9 | WIN |
| 11. | 87655044 | [10] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 12. | 86529976 | [4] | BOLT,Hex, M16 x 35mm, Cl 10.9 | FAR |
| 13. | 412398 | [2] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | NH |
| 14. | 86505259 | [2] | BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9 | NH |
| 15. | 85825181 | [3] | INSERT | IMO |
| 16. | 87655041 | [4] | SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk | BUR |
| 17. | 43118 | [2] | BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8 | NH Superseded by part number: 120102 |
| 18. | 393392 | [2] | LOCK NUT,M6 x 1.0, Cl 8 | WIN Superseded by part number: V43393 |
| 19. | 356924A3 | [1] | LATCH | CAS |
| 20. | 86588450 | [4] | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | ZED |
| 21. | 87328598 | [5] | INSERT | BHB |
