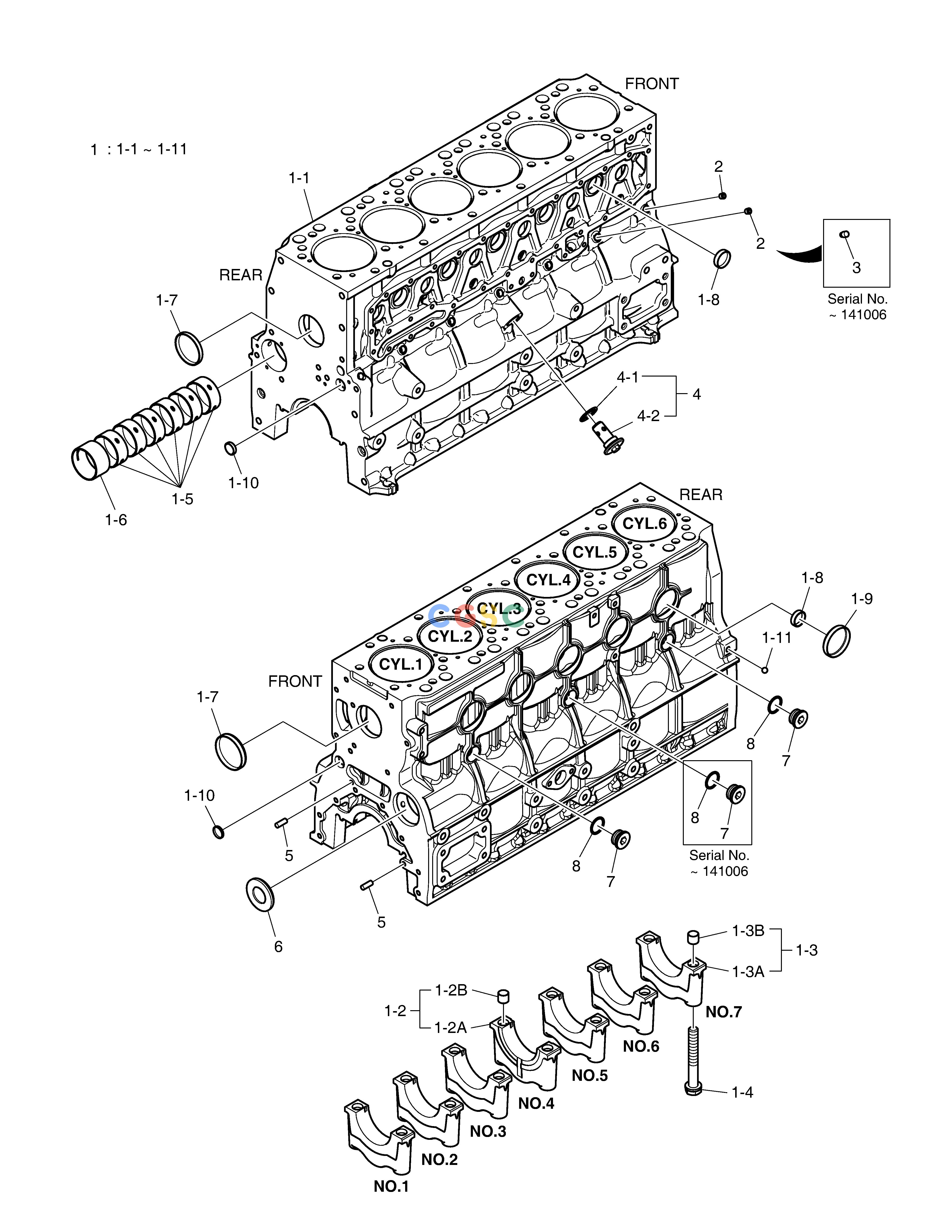

斗山零件查询CYLINDER BLOCK DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00004D
|
[1] |
BLOCK ASS`Y,CYLINDER
|
|
| 1. |
150102-00004C
|
[1] |
|
150102-00004D
|
| 1-1. |
150102-00005C
|
[1] |
. BLOCK,CYLINDER
|
|
| 1-1. |
150102-00005B
|
[1] |
|
|
| 1-10. |
65.91606-0041
|
[2] |
. PLUG;CORE
|
|
| 1-11. |
06.31641-0618
|
[1] |
. BALL;STEEL
|
|
| 1-2. |
140202-00016
|
[1] |
. THRUST BEARING CAP ASS`Y
|
|
| 1-2A. |
140202-00017
|
[1] |
.. BEARING CAP;THRUST
|
|
| 1-2B. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1-3. |
140202-00018
|
[6] |
. BEARING CAP ASS`Y
|
|
| 1-3A. |
140202-00019
|
[1] |
.. BEARING CAP
|
|
| 1-3B. |
65.91710-0001
|
[2] |
.. RING;STOPPER
|
|
| 1-4. |
120112-01340
|
[14] |
. BOLT
|
|
| 1-5. |
65.04410-0021A
|
[6] |
. BUSH;CAMSHAFT
|
|
| 1-6. |
65.04410-0022
|
[1] |
. BUSH;CAMSHAFT
|
|
| 1-7. |
65.90302-0009
|
[2] |
. PLUG;CORE
|
|
| 1-8. |
65.90302-0042
|
[8] |
. PLUG;CORE
|
|
| 1-9. |
65.90302-0034
|
[5] |
. PLUG;CORE
|
|
| 2. |
65.90320-0022
|
[1] |
PLUG SCREW
|
|
| 2. |
65.90320-0022
|
[7] |
PLUG SCREW
|
|
| 3. |
65.91001-0013A
|
[6] |
PIN;CORE
|
|
| 4. |
410127-00088
|
[1] |
RELIEF VALVE ASS`Y
|
|
| 4-1. |
06.56021-0102
|
[1] |
. O-RING
|
|
| 4-2. |
65.05401-5002G
|
[1] |
. RELIEF VALVE
|
|
| 5. |
06.22022-1063
|
[2] |
PIN
|
|
| 6. |
65.91605-0002
|
[1] |
COVER;CORE HOLE
|
|
| 7. |
65.90310-0134
|
[3] |
SCREW;PLUG
|
|
| 7. |
65.90310-0134
|
[2] |
SCREW;PLUG
|
|
| 7. |
06.08041-2211
|
[2] |
SCREW,PLUG
|
|
| 8. |
06.56190-0732
|
[3] |
SEAL;RING
|
|
| 8. |
06.56190-0732
|
[2] |
SEAL;RING
|
|
