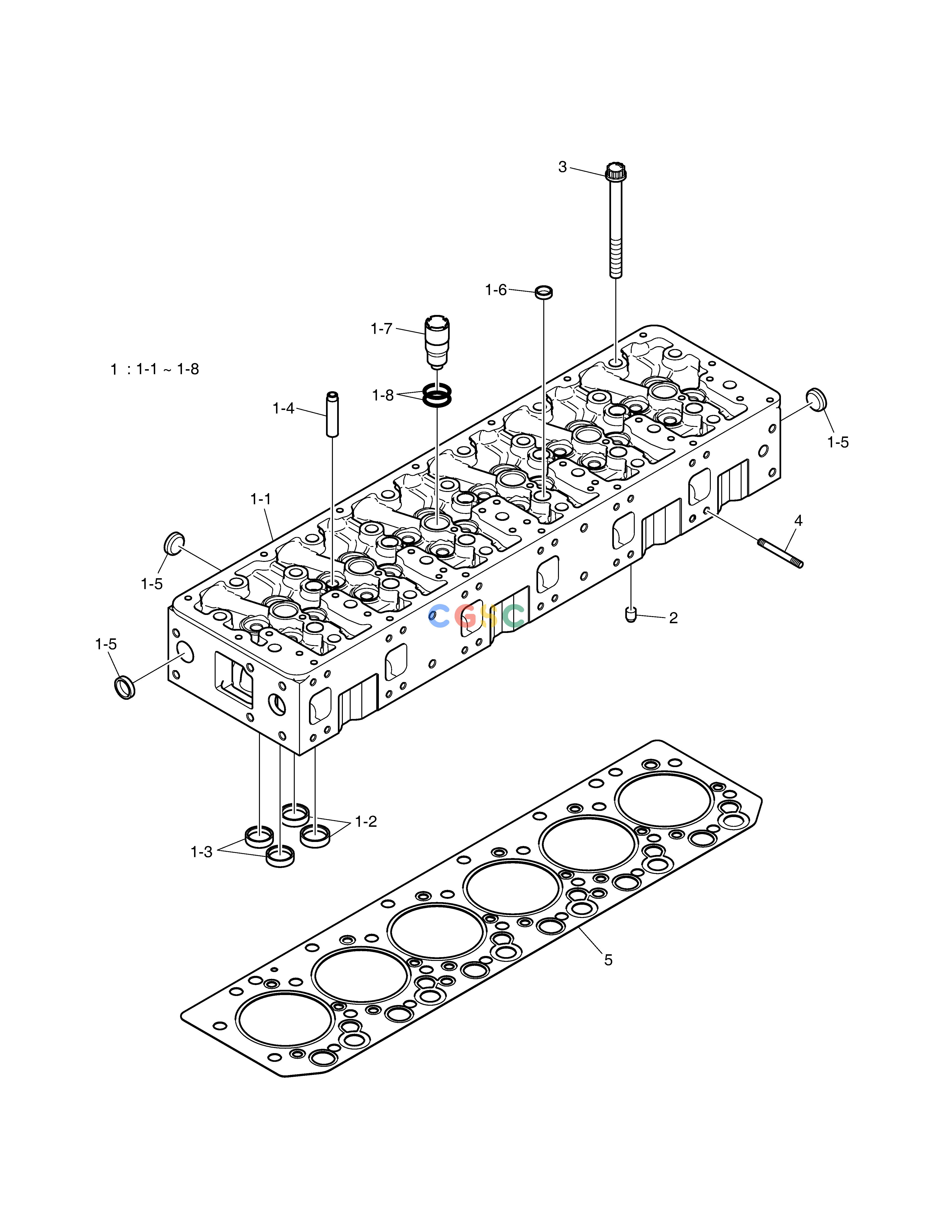

斗山零件查询CYLINDER HEAD DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
991 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150113-00317
|
[1] |
|
150113-00317A
|
| 1. |
150113-00317A
|
[1] |
|
|
| 1-1. |
150113-00409
|
[1] |
|
|
| 1-1. |
150113-00409A
|
[1] |
|
|
| 1-2. |
65.03203-1062
|
[12] |
. SEAT,VALVE IN
|
|
| 1-3. |
65.03203-1063
|
[12] |
. SEAT,VALVE EX
|
|
| 1-4. |
65.03201-1016B
|
[24] |
. GUIDE,VALVE
|
|
| 1-5. |
65.90302-0048
|
[10] |
. PLUG,CORE
|
|
| 1-6. |
65.90302-0029
|
[21] |
. PLUG,CORE
|
|
| 1-7. |
65.03205-0006B
|
[6] |
. BUSH,INJ. NOZZLE
|
|
| 1-8. |
65.96501-0088
|
[12] |
. O-RING
|
|
| 2. |
65.91030-0005
|
[2] |
PIN
|
|
| 3. |
65.90021-0009
|
[26] |
BOLT,HEAD
|
|
| 4. |
65.90201-0134
|
[24] |
BOLT,STUD
|
|
| 5. |
65.03901-0071
|
[1] |
GASKET;CYLINDER HEAD
|
400603-00112
|
| 5. |
400603-00112
|
[1] |
GASKET,CYLINDER HEAD
|
|
