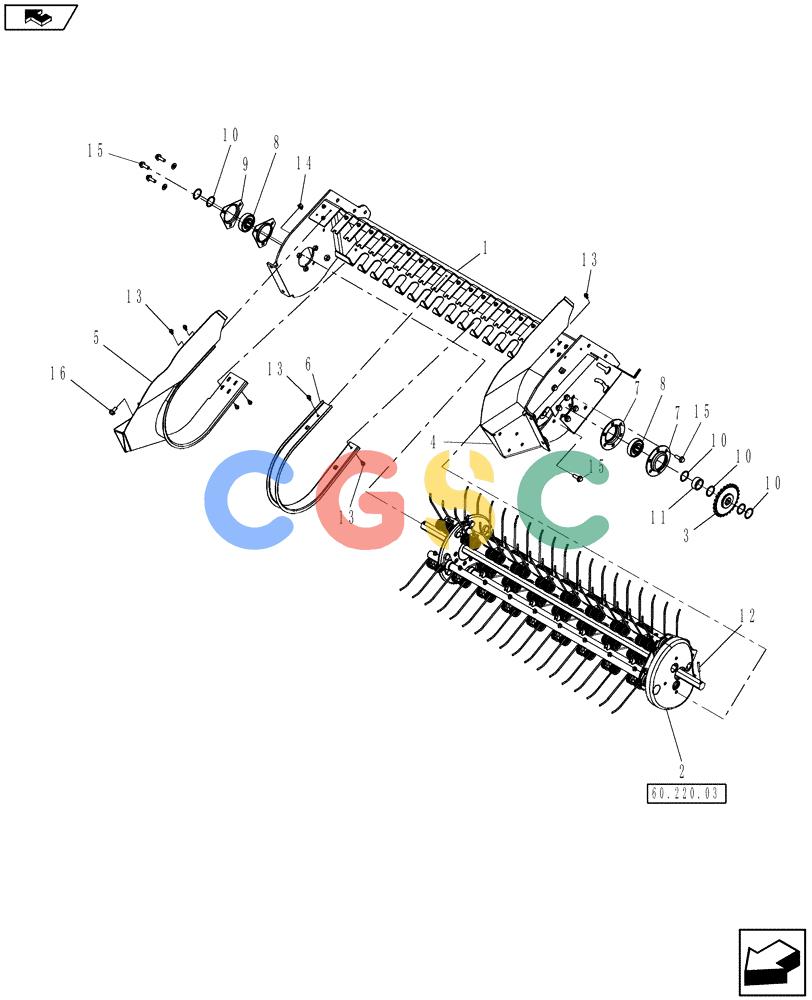

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (60.220.01[02]) - STANDARD PICKUP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84204763
|
[1] |
FRAME
|
NH
Pickup
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Reel
|
| 3. |
84224007
|
[1] |
SPROCKET
|
NH
25T RC 50
|
| 4. |
84229385
|
[1] |
GUARD
|
NH
LH
|
| 5. |
84232348
|
[1] |
GUARD
|
NH
RH
|
| 6. |
84232979
|
[17] |
GUARD
|
NH
|
| 7. |
138820
|
[2] |
FLANGED BEARING
|
GI
Superseded by part number: 86635012
|
| 8. |
86594423
|
[2] |
BEARING,28.6mm Hex x 72mm OD x 25mm W
|
NH
Superseded by part number: 84330069
|
| 9. |
86620026
|
[2] |
FLANGED BEARING
|
NH
|
| 10. |
164999
|
[6] |
WASHER
|
NH
|
| 11. |
770904
|
[1] |
SPACER
|
NH
Superseded by part number: 255793
|
| 12. |
88529
|
[2] |
LOCK PIN,5.56mm OD x 44.45mm L, Slotted
|
NH
|
| 13. |
677808
|
[50] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 14. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 15. |
9804262
|
[11] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 16. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
