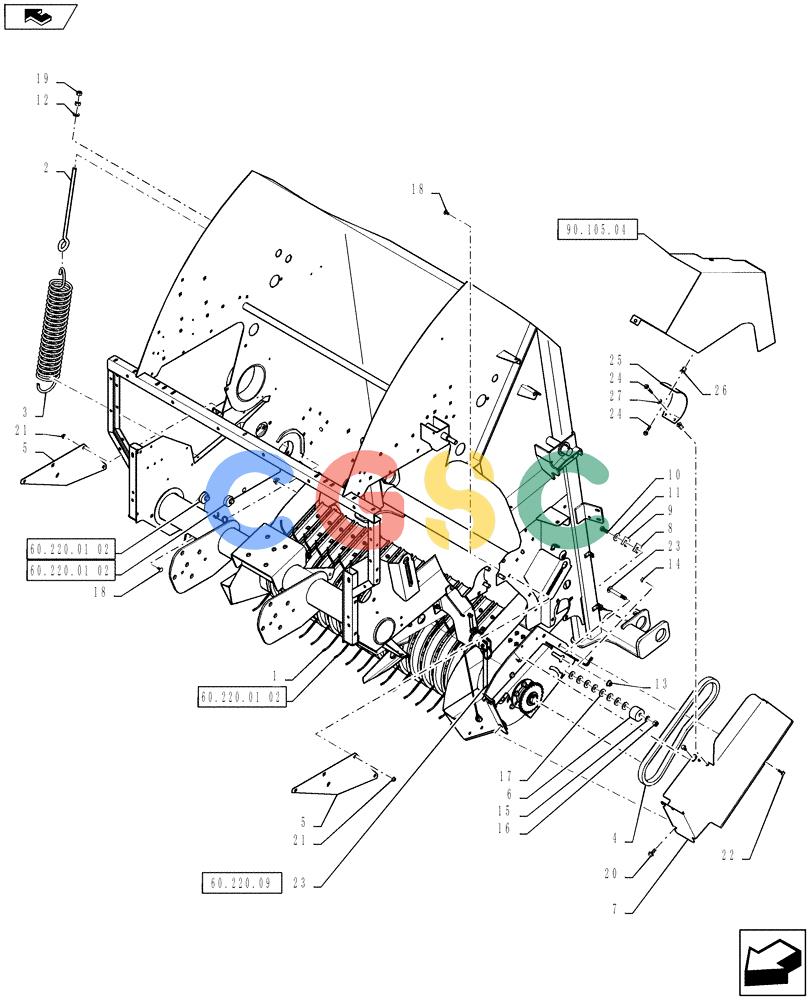

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Standard Pickup
|
| 2. |
84256921
|
[1] |
EYEBOLT
|
NH
|
| 3. |
84235333
|
[1] |
SPRING
|
NH
|
| 4. |
9621910
|
[1] |
CHAIN,2050, 36 Links x 31.75mm = 1143mm
|
NH
|
| 5. |
84238886
|
[2] |
SHIELD
|
NH
|
| 6. |
86514717
|
[1] |
IDLER WHEEL
|
NH
|
| 7. |
84231797
|
[1] |
SHIELD
|
NH
|
| 8. |
84333209
|
[1] |
SHIM
|
NH
2.5 mm
|
| 9. |
84333207
|
[1] |
SHIM
|
NH
1 mm
|
| 10. |
86629541
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 11. |
87642988
|
[4] |
WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk
|
NH
|
| 12. |
65319
|
[13] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 13. |
9804279
|
[4] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 14. |
334070
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8
|
PA
Superseded by part number: 80334070
|
| 15. |
140018
|
[1] |
WASHER,13.5mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 16. |
412672
|
[1] |
NUT,Hex, M12 x 1.75, Cl 10
|
WIN
|
| 17. |
87613265
|
[8] |
WASHER,0.53" ID x 1.25" OD x 0.13" Thk
|
GI
|
| 18. |
86507486
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 19. |
280431
|
[2] |
NUT,1/2"-13, G5
|
NH
|
| 20. |
9804261
|
[2] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 21. |
9804277
|
[7] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 22. |
9804258
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 24. |
9804256
|
[4] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 25. |
84133493
|
[1] |
RUBBER STRIP
|
NH
|
| 26. |
86610198
|
[4] |
INSERT,M6 x 1
|
NH
|
| 27. |
80707
|
[4] |
WASHER,0.25" ID x 0.56" OD x 0.05" Thk
|
NH
|
