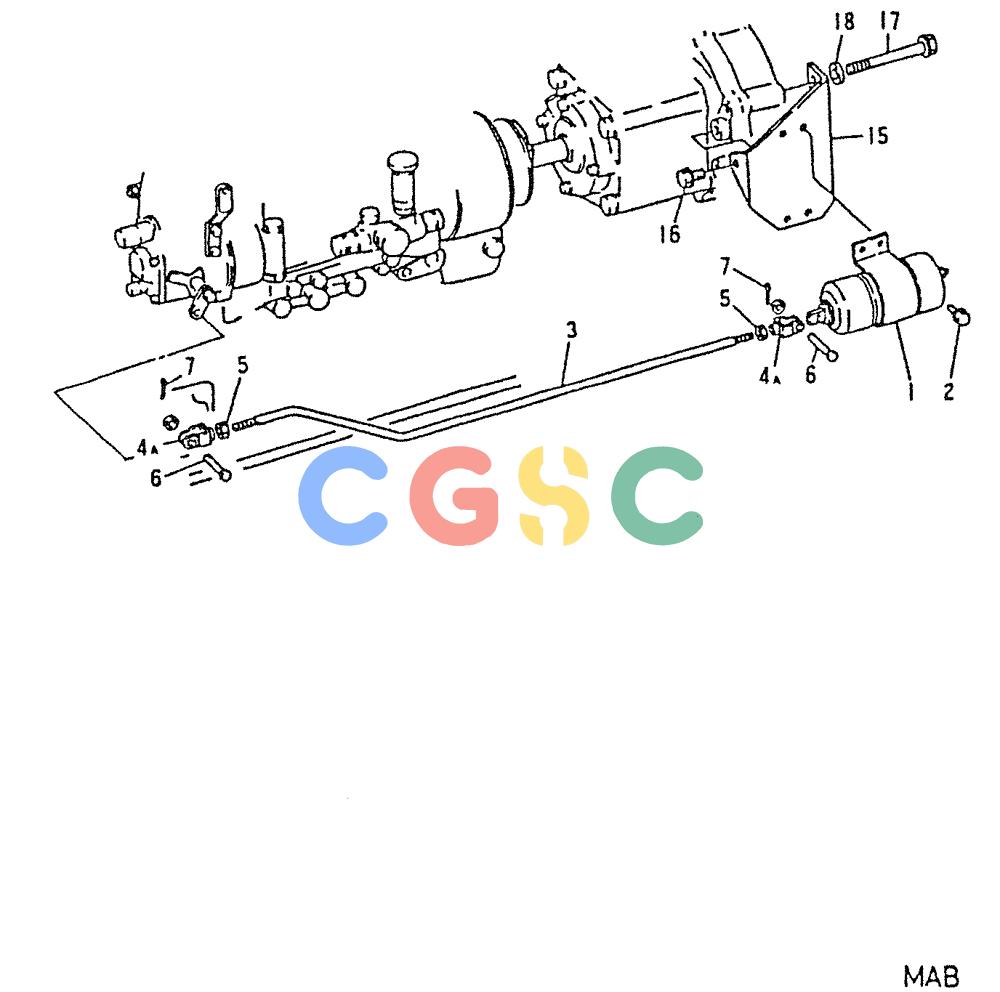

神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (05-004) - EMERGENCY PARTS 090-500A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3089804100 | [1] | SOLENOID | KOBSTOP 24V HD |
| 2. | VAMF140221 | [4] | BOLT | KOBBOLT, FLANGE 8X12 |
| 3. | VAME050928 | [1] | ROD | KOB |
| 4A. | VAMC429036 | [2] | CLEVIS | KOBCLEVIS |
| 5. | VAMF430724 | [2] | NUT 6 | |
| 6. | VAMF472953 | [2] | PIN | KOBPIN, CLEVIS 6X16 |
| 7. | VAMF472024 | [2] | PIN, SPLIT 1.6X15 | |
| . . | VAMF450004 | [2] | WASHER | KOBWASHER, PLAIN 6 |
| 15. | VAME059949 | [1] | BRACKET, SOLENOID | |
| 16. | VAMH000706 | [1] | SCREW | KOBBOLT, FLANGE 10X16 Superseded by part number: 132289A1 |
| 17. | VAMH000737 | [2] | BOLT | KOBBOLT, FLANGE 10X90 |
| 18. | VAMH005027 | [2] | WASHER | KOBWASHER |
