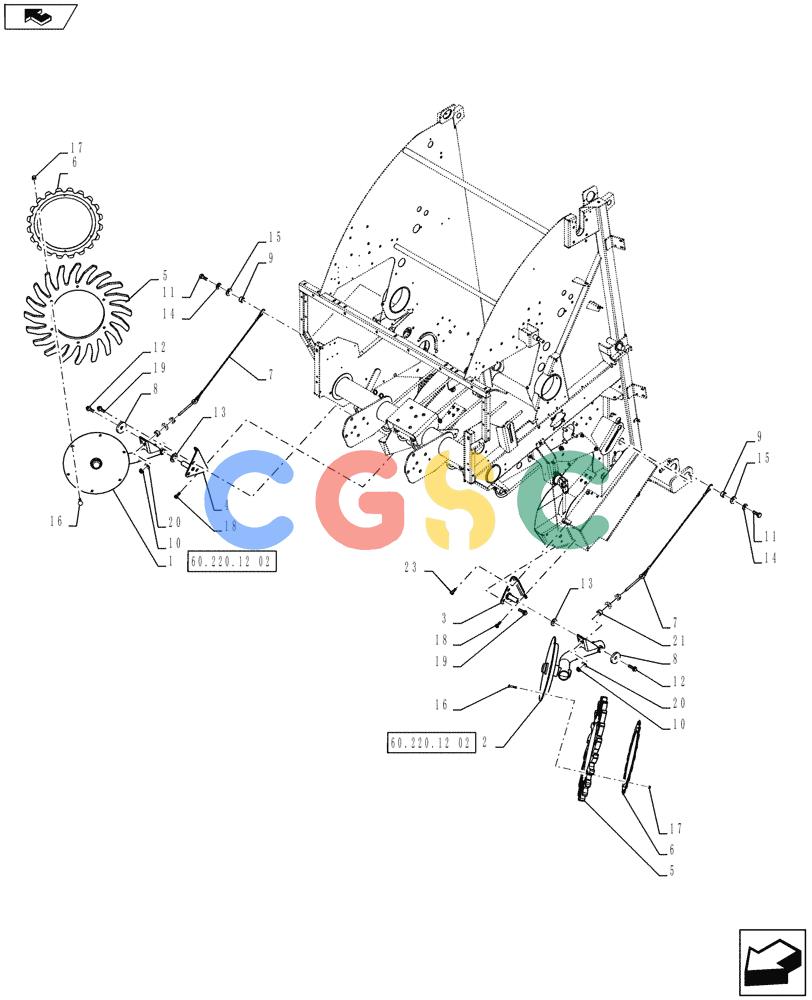

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (60.220.12[1]) - GATHERING WHEEL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84255049
|
[1] |
ARM
|
PA
RH
|
| 2. |
84238295
|
[1] |
ARM
|
PA
LH
|
| 3. |
84237595
|
[1] |
SUPPORT
|
PA
LH
|
| 4. |
84255054
|
[1] |
SUPPORT
|
PA
RH
|
| 5. |
84296067
|
[2] |
WHEEL
|
PA
|
| 6. |
84269073
|
[2] |
RING
|
PA
|
| 7. |
84294086
|
[2] |
CABLE
|
PA
|
| 8. |
790472
|
[2] |
WASHER,10.3mm ID x 63.5mm OD x 4.8mm Thk
|
FOR
Superseded by part number: 80790472
|
| 9. |
87302487
|
[2] |
SPACER,13.8mm ID x 21.3mm OD x 10.3mm L
|
WIC
|
| 10. |
86521606
|
[4] |
FLANGE NUT,Hex, 3/8" - 16, Gr 5
|
NH
|
| 11. |
86629541
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 12. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 13. |
84294582
|
[2] |
WASHER
|
PA
|
| 14. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
86637848
|
[2] |
WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk
|
NH
|
| 16. |
86508771
|
[12] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5
|
GI
|
| 17. |
86629544
|
[12] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 18. |
9804262
|
[4] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 19. |
9804261
|
[5] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 20. |
140042
|
[4] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 21. |
87311354
|
[2] |
SPACER,10.7mm ID x 17.1mm OD x 14.2mm L
|
BRR
|
| 22. |
84134392
|
[1] |
INSTRUCTION
|
PA
|
| 23. |
86511845
|
[1] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
