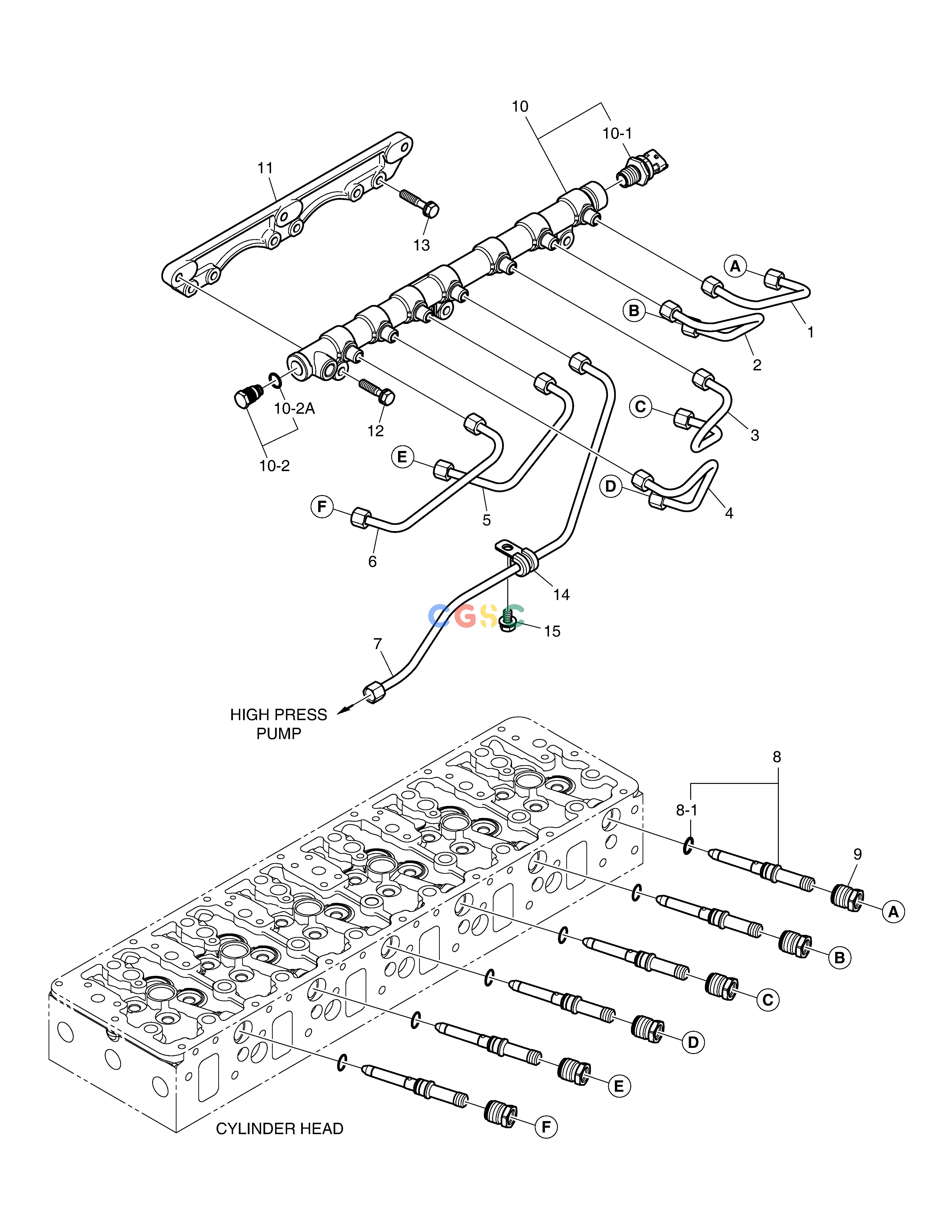

斗山零件查询INJECTION PIPE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420208-00003
|
[1] |
|
|
| 10. |
150120-00014
|
[1] |
|
|
| 10-1. |
301309-00009
|
[1] |
|
|
| 10-2. |
410126-00116
|
[1] |
|
|
| 10-2A. |
65.96501-0431
|
[1] |
... O-RING
|
|
| 11. |
110442-00001
|
[1] |
|
|
| 12. |
06.01913-3117
|
[3] |
BOLT ASS`Y M8X30
|
|
| 13. |
06.01913-3118
|
[6] |
. BOLT ASS`Y M8X35
|
|
| 14. |
65.97401-0183
|
[1] |
CLIP;PIPE
|
|
| 15. |
06.01923-3110
|
[1] |
BOLT ASS'Y M8X12
|
|
| 2. |
420208-00004
|
[1] |
|
|
| 3. |
420208-00005
|
[1] |
|
|
| 4. |
420208-00006
|
[1] |
|
|
| 5. |
420208-00007
|
[1] |
|
|
| 6. |
420208-00008
|
[1] |
|
|
| 7. |
420208-00009
|
[1] |
|
|
| 8. |
430230-00012
|
[6] |
|
|
| 8-1. |
65.96501-0438
|
[1] |
. O-RING
|
|
| 9. |
65.10415-0001
|
[6] |
NUT
|
|
