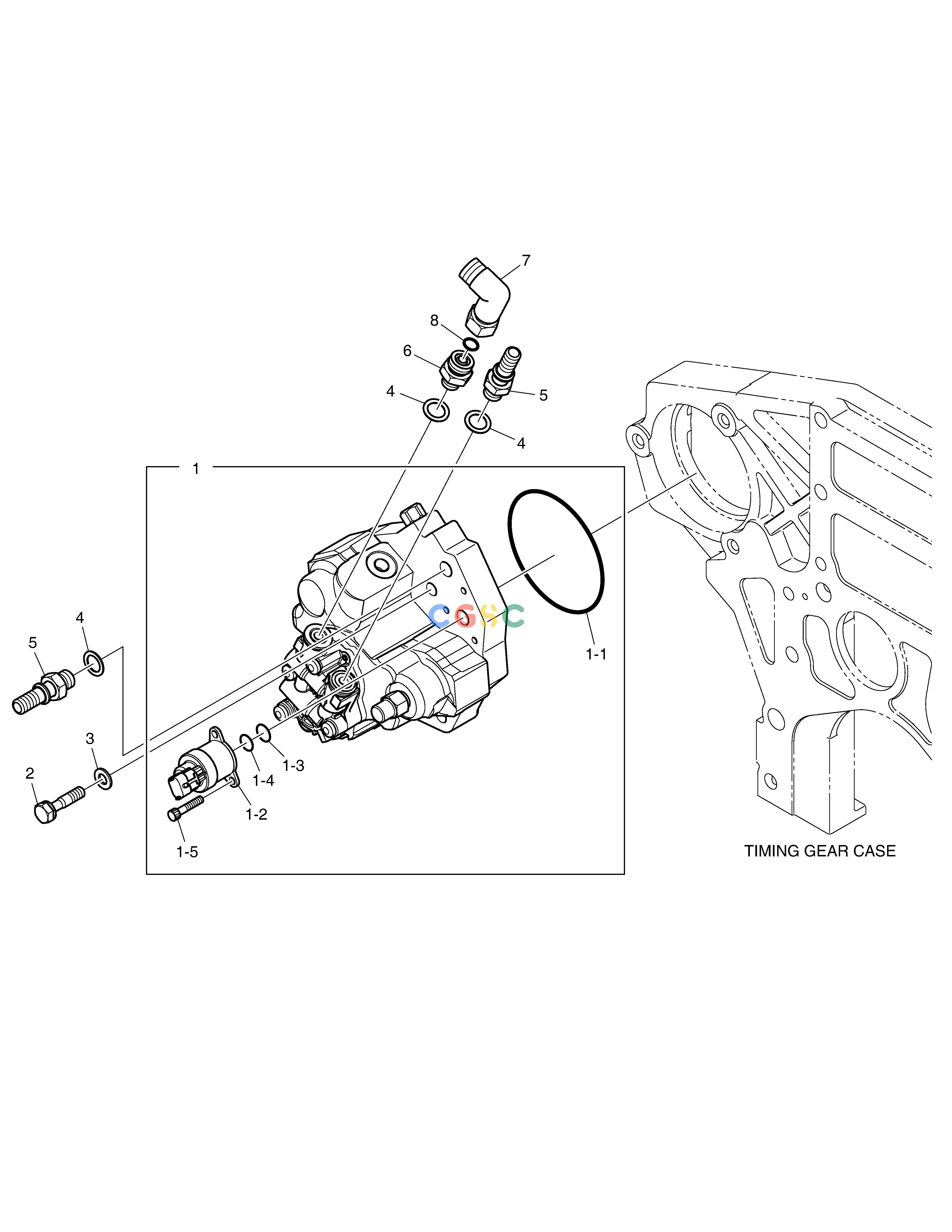

斗山零件查询INJECTION PUMP DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400912-00030A
|
[1] |
|
|
| 1-1. |
65.96501-0428
|
[1] |
O-RING
|
|
| 1-2. |
800215-00009
|
[1] |
|
|
| 1-3. |
401002-00195
|
[1] |
O-RING
|
|
| 1-4. |
401002-00196
|
[1] |
O-RING
|
|
| 1-5. |
120705-00042
|
[3] |
BOLT
|
|
| 2. |
06.01913-3220
|
[3] |
BOLT ASS'Y M10X45
|
|
| 3. |
06.15010-2312
|
[3] |
WASHER;PLAIN
|
|
| 4. |
65.96507-0043
|
[3] |
. RING;SEAL
|
|
| 5. |
101552-00153B
|
[2] |
|
|
| 6. |
430201-00807A
|
[1] |
|
430201-01484
|
| 6. |
430201-01484
|
[1] |
|
|
| 7. |
430201-01385
|
[1] |
|
|
| 8. |
S8030081
|
[1] |
O-RING
|
|
