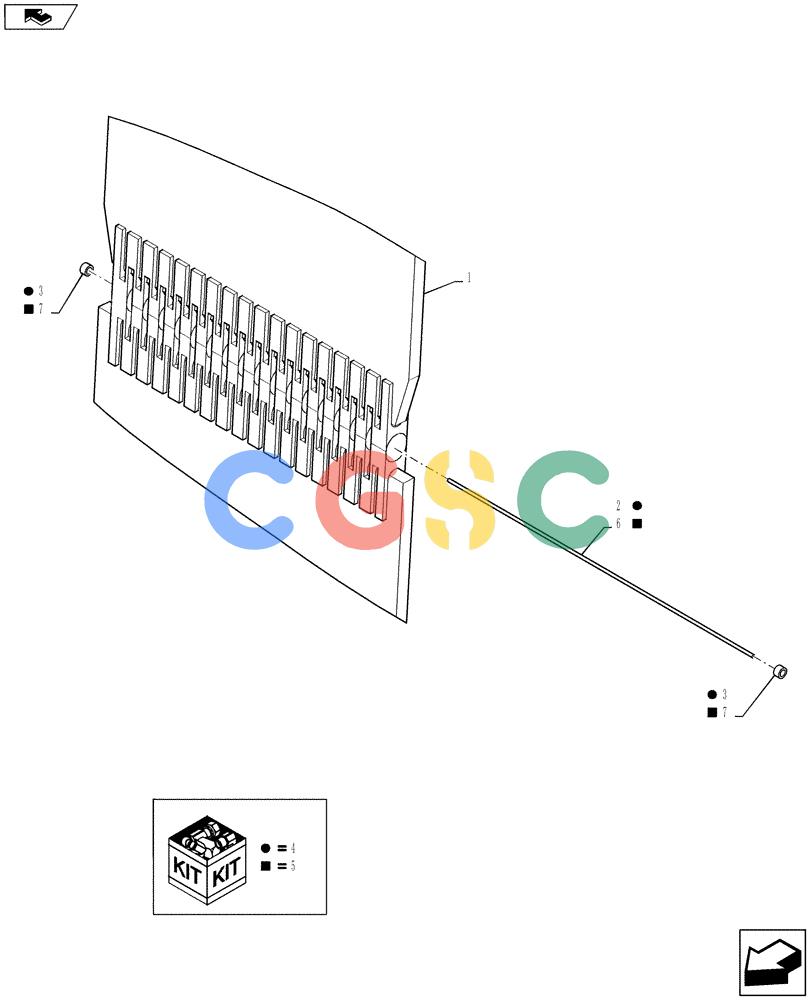

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (62.150.06) - LACED CHEVRON BELTS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
518 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87056534
|
[5] |
BELT,177.80 mm W x 8712.20 mm L
|
PA
Chevron Laced
|
| 2. |
9843257
|
[5] |
CABLE
|
NH
Lacing
|
| 3. |
9843258
|
[10] |
TUBE
|
NH
Cable
|
| 4. |
84134360
|
[1] |
LACING CABLE KIT
|
NH
Standard Duty, Includes: (8) Ref. 2, (18) Ref. 3 & Installations Instructions Superseded by part number: 84399081
|
| 5. |
84134363
|
[1] |
LACING CABLE KIT
|
NH
Heavy Duty, Includes: (10) Ref. 6, (20) Ref. 7 & Installations Instructions
|
| 6. |
87343633
|
[10] |
CABLE
|
NH
Lacing, White
|
| 7. |
87343634
|
[20] |
RETAINER
|
NH
Cable Retainer
|
