纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (90.160.CK[04]) - SOUNDPROOFING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
140 次

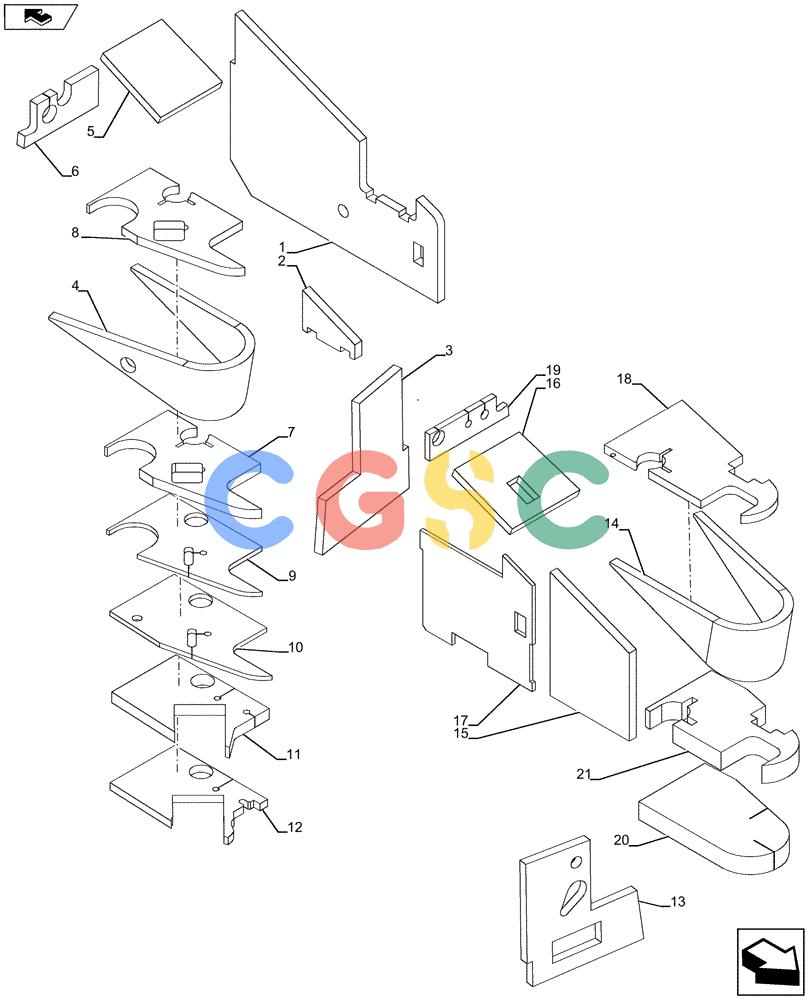

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47482818 | [1] | PANEL | BURRH Large Side |
| 2. | 47482820 | [1] | PANEL | BURRH Small Side |
| 3. | 47482813 | [1] | PANEL | BURRH Front |
| 4. | 47482821 | [1] | PANEL | BURRH Top |
| 5. | 47503459 | [1] | PANEL | BURRH Rear Upper |
| 6. | 47512731 | [1] | PANEL | BURRH Wall |
| 7. | 47514850 | [1] | PANEL | BURRH |
| 8. | 47523767 | [1] | PANEL | BURRH Console |
| 9. | 47514855 | [1] | PANEL | BURRH |
| 10. | 47514856 | [1] | PANEL | BURRH |
| 11. | 47514857 | [1] | PANEL | BURRH |
| 12. | 47514859 | [1] | PANEL | BURRH |
| 13. | 47503453 | [1] | PANEL | BURLH Front |
| 14. | 47503458 | [1] | PANEL | BURLH Top |
| 15. | 47503456 | [1] | PANEL | BURLH Side |
| 16. | 47503462 | [1] | PANEL | BURLH Rear Upper |
| 17. | 47511631 | [1] | PANEL | BURLH Side |
| 18. | 47511632 | [1] | PANEL | BURLH |
| 19. | 47512047 | [1] | PANEL | BURLH Wall |
| 20. | 47512606 | [1] | PANEL | BURLH Bottom |
| 21. | 47512468 | [1] | PANEL | BURLH Top |
