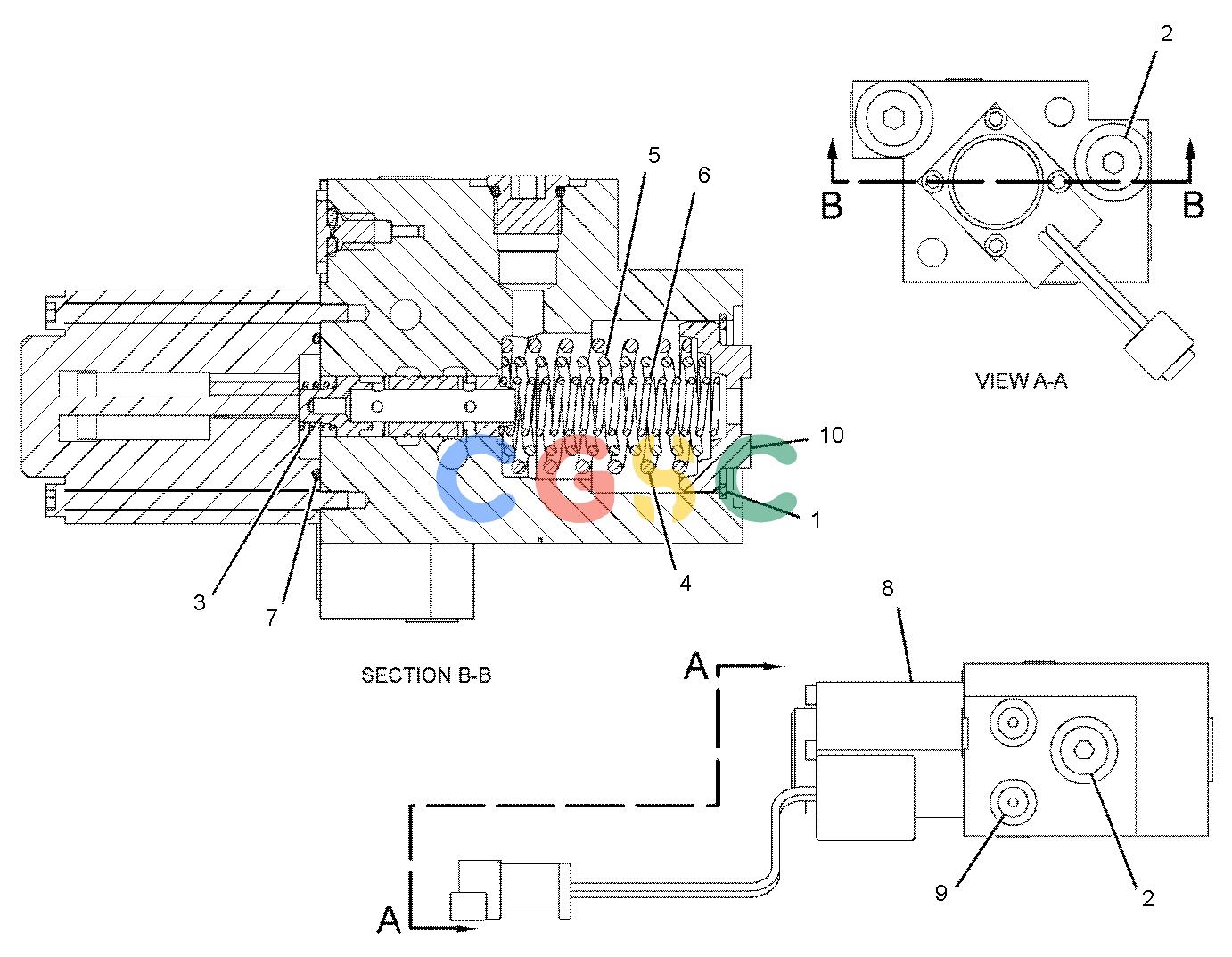

卡特零件查询（725） 141-5502: ACTUATOR GP-PILOT CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5S-6980 | [1] | RING-RETAINING | |
| 2. | 366-4695 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 360-3679 | [1] | PLUG-CONNECTOR(9/16-18-THD) | |
| 3. | 137-4756 | [1] | SPRING | |
| 4. | 141-5497 | [1] | SPRING | |
| 5. | 141-5498 | [1] | SPRING | |
| 6. | 159-8402 | [1] | SPRING | |
| 7. | 077-3241 | [1] | SEAL-O-RING | |
| 8. | 486-7563 | [1] | SOLENOID AS(PILOT CONTROL ACTUATOR) | |
| | 1S-9593 | [2] | STRAP-CABLE | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 129-3174M | [4] | BOLT-SOCKET HEAD(M4X0.7X60-MM) | |
| 9. | 367-6001 | [5] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 4J-7533 | [1] | SEAL-O-RING | |
| | 360-3675 | [1] | PLUG(5/16-24-THD) | |
| 10. | 142-2864 | [1] | RETAINER | |
| | | | |
| | 107-3198FM | [4] | BOLT(M4X0.7X65-MM) | |
| | 096-6166F | [12] | WASHER-HARD(4.5X9X1-MM THK) | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
