卡特零件查询（725） 191-5337: CYLINDER GP-HYDRAULIC
广数供应链运营团队, 14 02月, 2025，浏览：
236 次

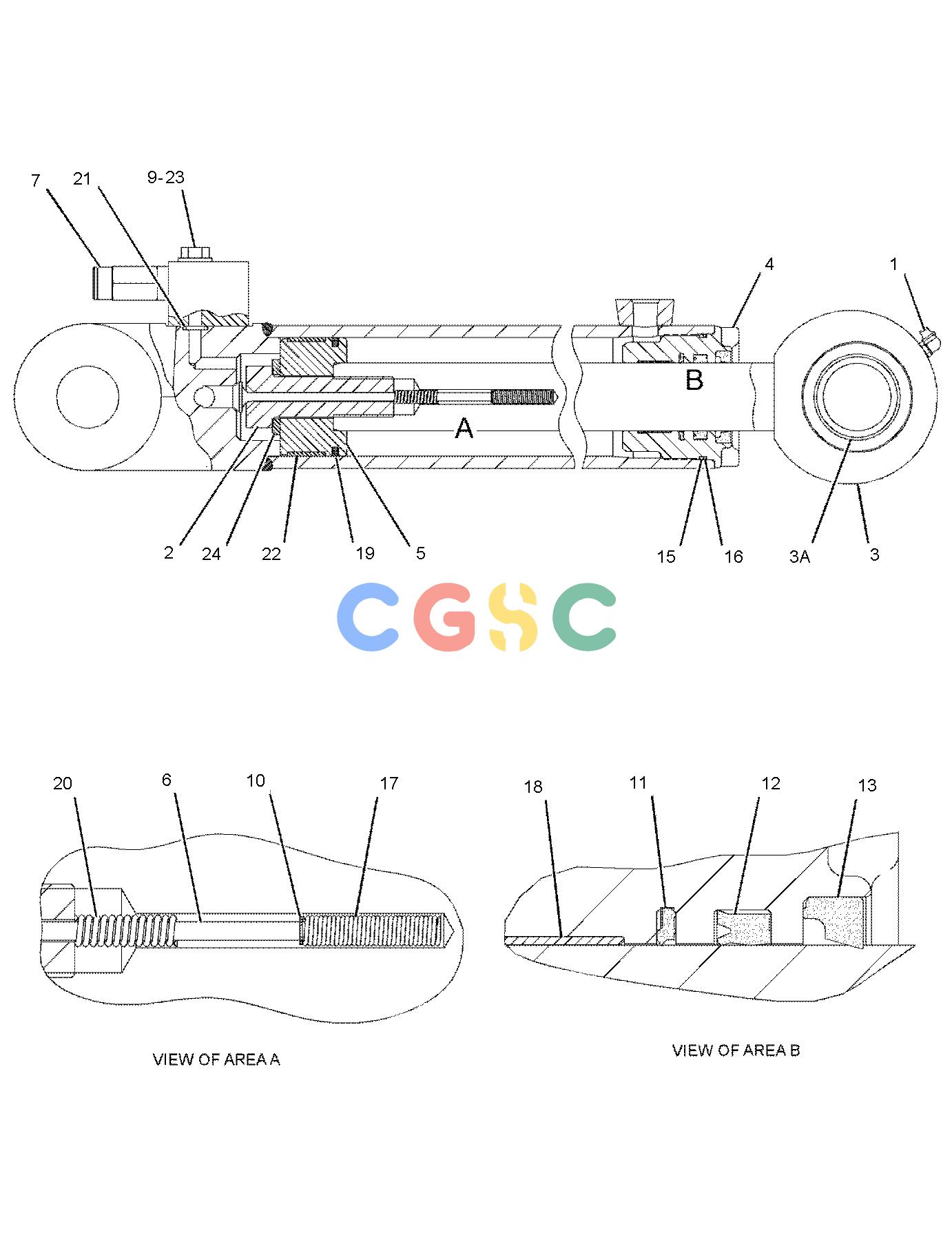

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 141-5864 | [1] | BOLT(M30X3.5X90-MM) | |
| 3. | 154-6413 | [1] | ROD AS | |
| 3A. | 6V-5002 | [1] | BEARING-ALIGNING | |
| 4. | 164-5475 | [1] | HEAD | |
| 5. | 169-6563 | [1] | PISTON | |
| 6. | 184-3039 | [1] | VALVE | |
| 7. | 187-8083 | [1] | VALVE GP-RELIEF(STEERING CYLINDER) | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 100-7000 | [1] | RING-BACKUP | |
| | 161-6149 | [1] | SEAL-O-RING | |
| 9. | 085-8091M | [2] | BOLT(M10X1.5X55-MM) | |
| 10. | 141-8580 | [1] | RING-RETAINING | |
| 11. | 167-2195J | [1] | SEAL AS-BUFFER | |
| 12. | 167-2304J | [1] | SEAL-U-CUP | |
| 13. | 167-2457J | [1] | SEAL-WIPER | |
| 15. | 2H-4145J | [1] | SEAL-O-RING | |
| 16. | 4J-9224J | [1] | RING-BACKUP | |
| 17. | 4M-5912 | [1] | SPRING | |
| 18. | 4T-5613J | [1] | RING-WEAR | |
| 19. | 4T-8054J | [1] | SEAL AS | |
| 20. | 6E-3772 | [1] | SPRING | |
| 21. | 6V-5759 | [1] | SEAL-O-RING | |
| 22. | 7J-9885J | [1] | RING-WEAR | |
| 23. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 24. | 9X-8399 | [1] | WASHER(33X56X6-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 185-7674J | [1] | KIT-SEAL | |
| | | | (INCLUDES BACK UP RINGS, WEAR RINGS, SEAL AS, SEALS & O-RING SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
