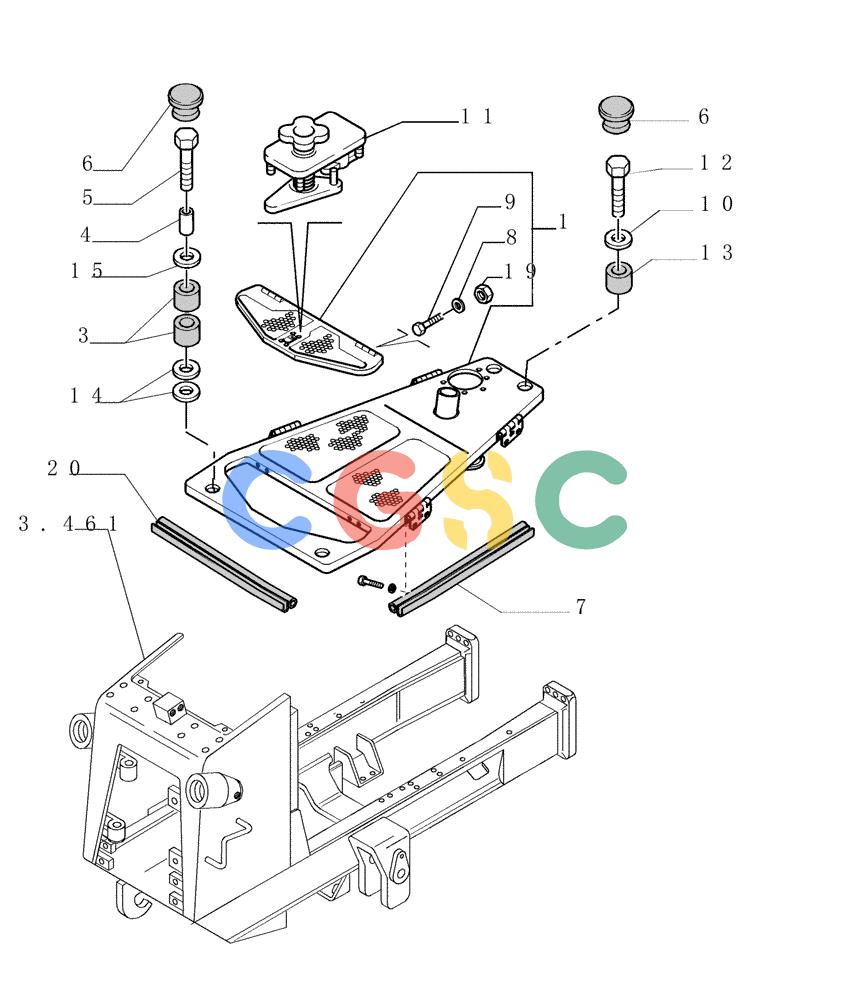

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093335 | [1] | COWLING | LEC- ASSY |
| 3. | 79109730 | [4] | RUBBER BUSHING | LEC |
| 4. | 79109731 | [2] | SPACER | LEC |
| 5. | 11113831 | [2] | SCREW,Hex, M12 x 80mm, Cl 10.9 | LEC Superseded by part number: 11113821, 412085 |
| 6. | 14508287 | [4] | PLUG | LECB-50 |
| 7. | 76090807 | [1] | SEAL | LEC |
| 8. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 10. | 12648531 | [4] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 11. | 76066371 | [1] | LOCK | LEC- ASSY SEE PAG.6 |
| 12. | 11112831 | [2] | SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11125434 |
| 13. | 79032003 | [2] | BUSHING | LEC |
| 14. | 79109732 | [1] | WASHER,M12.5 x 43 x 3 Thk | LEC |
| 15. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 19. | 14094910 | [4] | NUT,Weld, M8 | BHB8 |
| 20. | 76090808 | [1] | SEAL | LEC |
| 21. | 87332128 | [1] | | |
