纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (5.601[02]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
188 次

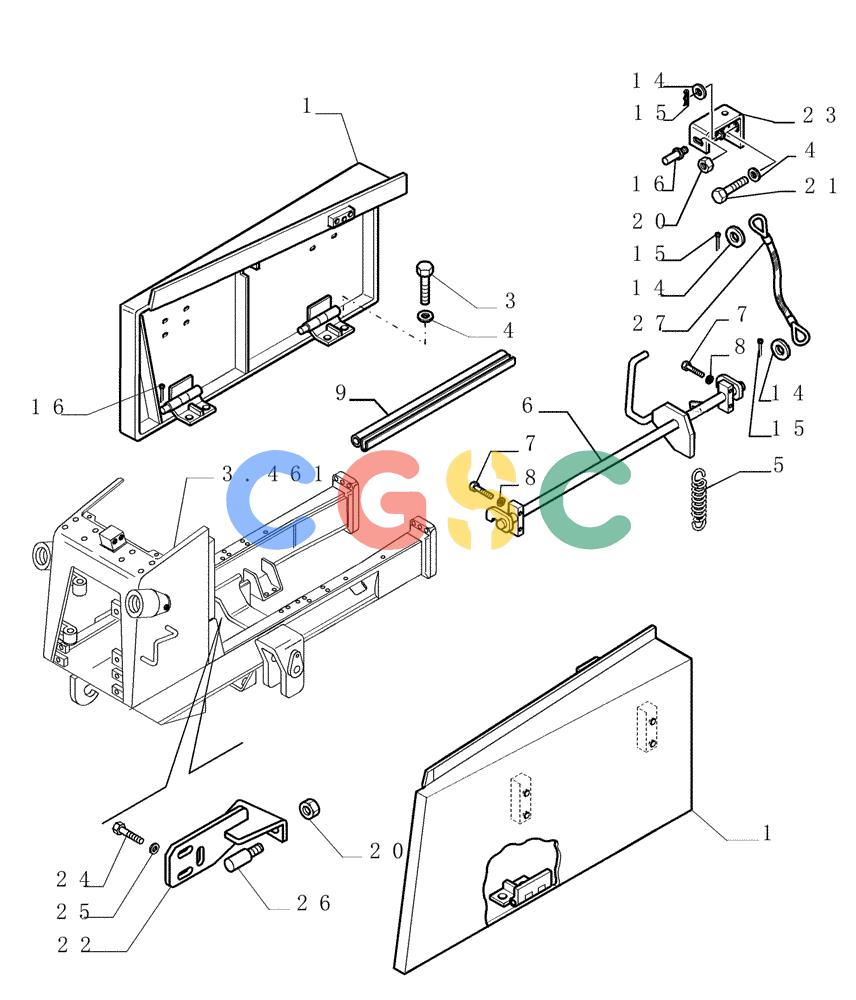

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093362 | [1] | PANEL | LEC- ASSY LOWER LEFT |
| 1. | 76093363 | [1] | PANEL | LEC- ASSY LOWER RIGHT |
| 3. | 11112231 | [8] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 4. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 5. | 79093725 | [2] | SPRING | LEC |
| 6. | 76089027 | [1] | ROD | LEC- LEFT |
| 6. | 76089028 | [1] | ROD | LEC- RIGHT |
| 7. | 16043631 | [8] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 12626231 | [8] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 14. | 14496531 | [14] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 15. | 10734301 | [4] | COTTER PIN,M2 x 18 | TTF Superseded by part number: 16854101 |
| 16. | 76073415 | [4] | PIN | LEC |
| 20. | 12577521 | [6] | NUT,M12 x 1.75 | LEC |
| 21. | 11112031 | [8] | SCREW,Hex, M12 x 18mm, Cl 10.9, Full Thd | LEC12X28 |
| 22. | 76073403 | [1] | SUPPORT | TOR- RIGHT |
| 22. | 76073402 | [1] | SUPPORT | TOR- LEFT |
| 23. | 76078431 | [2] | SUPPORT | LEC- REAR |
| 24. | 16043231 | [6] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 26. | 79092929 | [1] | PIN,12mm OD x 80mm L | LEC |
| 27. | 76066336 | [2] | CABLE | LEC |
| 27. | 76069726 | [2] | CABLE,180mm L | LEC |
| 28. | 87332128 | [1] | | |
