卡特零件查询（725） 285-6876: MOTOR GP-GEAR
广数供应链运营团队, 14 02月, 2025，浏览：
990 次

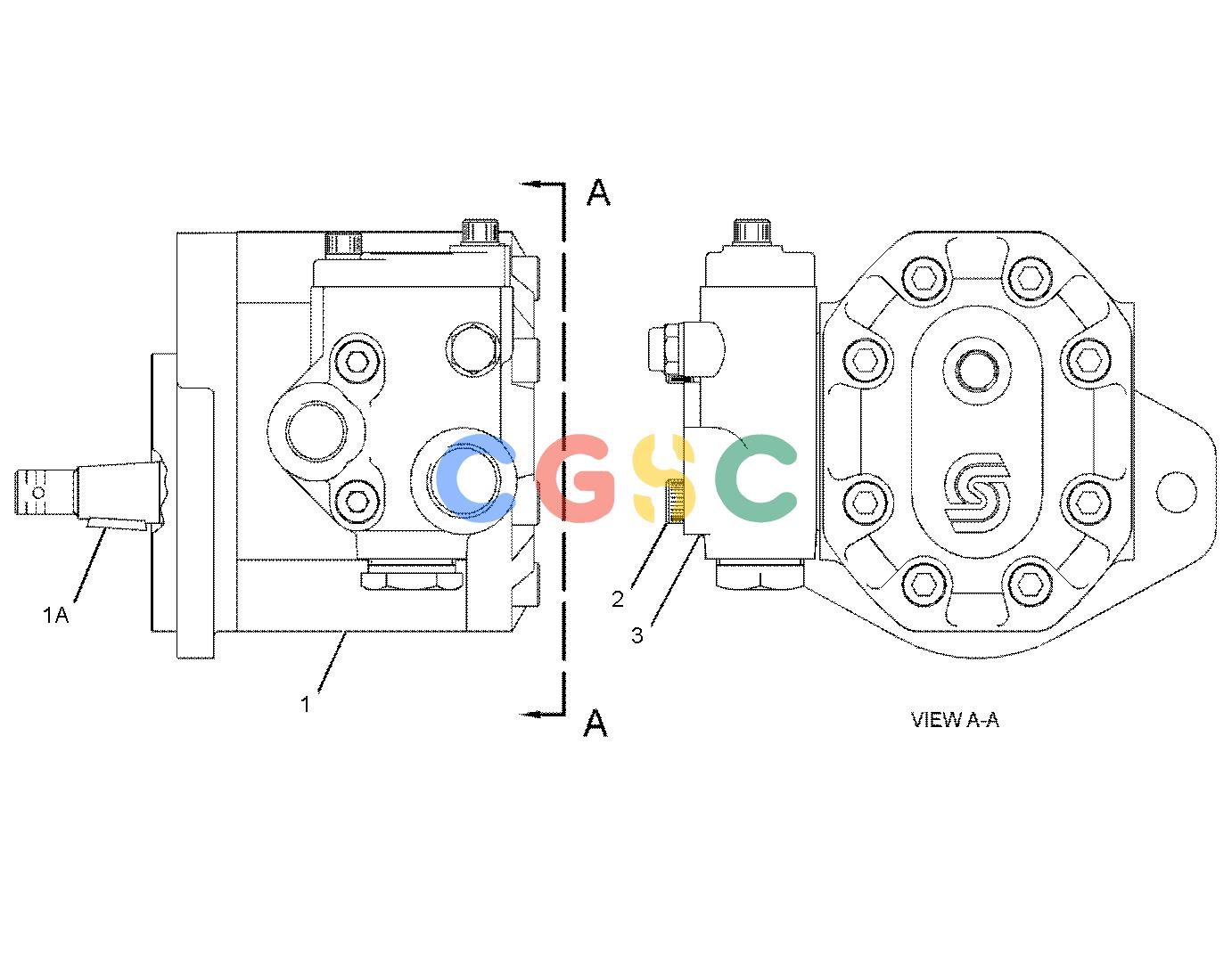

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 288-4320JL | [1] | MOTOR GP-GEAR(HYDRAULIC FAN) | |
| 1A. | 1B-8714 | [1] | KEY-WOODRUFF | |
| 2. | 8T-0341M | [2] | BOLT-SOCKET HEAD(M10X1.5X60-MM) | |
| 3. | 201-2693J | [1] | VALVE-THERMOSTAT(HYDRAULIC FAN MOTOR) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 285-6877J | [1] | KIT-SEAL | |
| | | | (INCLUDES WASHERS, O-RINGS & SEALS) |
| | 288-4321L | [1] | KIT-SEAL | |
| | | | (INCLUDES WASHERS, O-RINGS & SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
