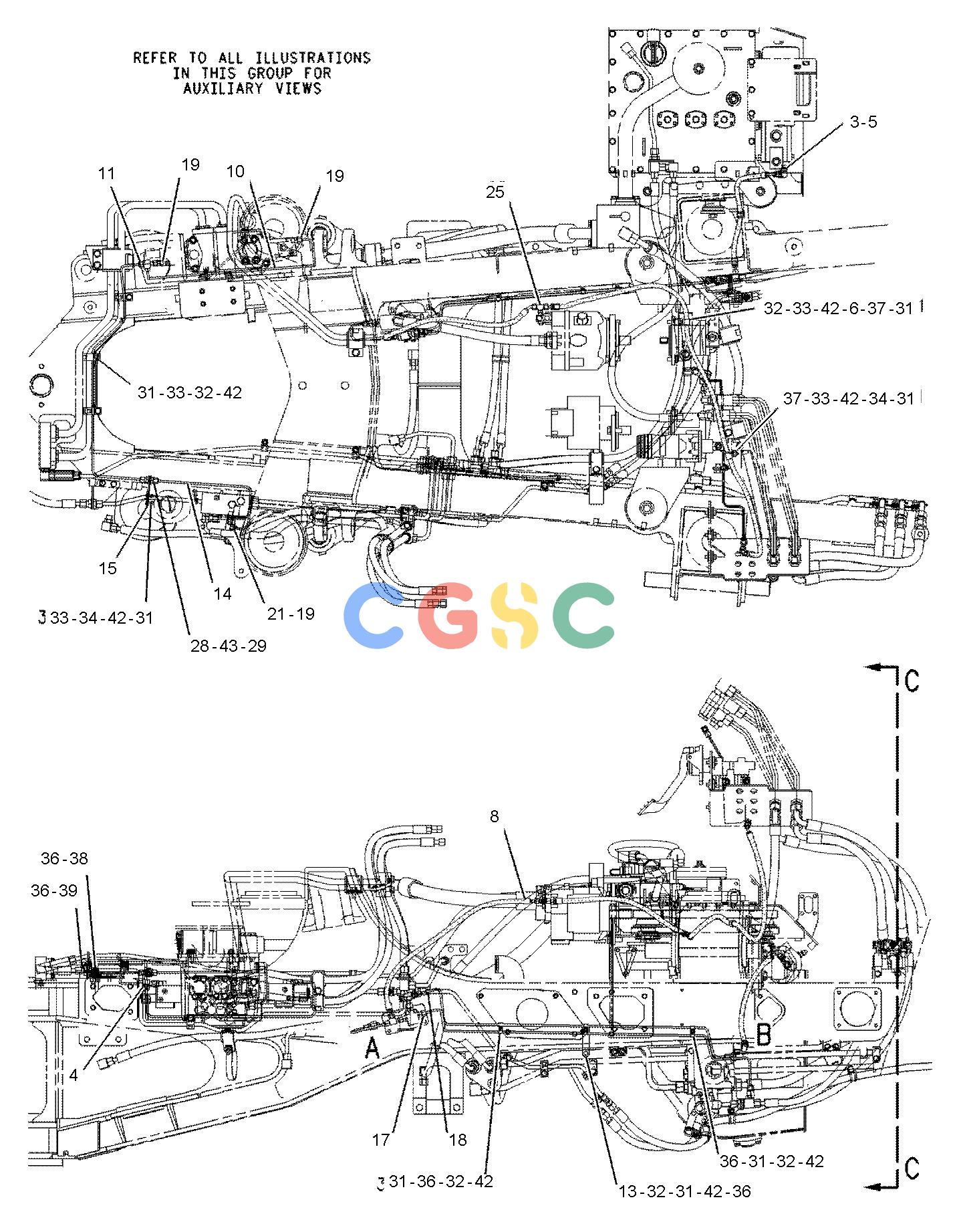

卡特零件查询（725） 149-0008: LINES GP-PILOT
广数供应链运营团队, 14 02月, 2025，浏览：
495 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7U-7310 | [1] | VALVE GP-SHUTTLE(PILOT LINES) | |
| | 3K-0360 | [2] | SEAL-O-RING | |
| 2. | 9X-6582 | [1] | NUT(13/16-16-THD) | |
| 3. | 150-3065 | [1] | ELBOW AS | |
| | 6V-0484 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 4. | 6V-9835 | [2] | TEE | |
| | 4J-5477 | [4] | SEAL-O-RING | |
| 5. | 165-7948Y | [2] | VALVE GP-CHECK(HOIST) | |
| 6. | 169-9709 | [1] | BRACKET | |
| 7. | 177-2880 | [1] | TUBE AS | |
| 8. | 177-2884I | [1] | HOSE AS | |
| 9. | 177-2885I | [1] | HOSE AS | |
| 10. | 177-2888 | [1] | TUBE AS | |
| 11. | 177-2889 | [1] | TUBE AS | |
| 12. | 178-3775 | [1] | BRACKET | |
| 13. | 178-6886 | [1] | BRACKET-SUPPORT | |
| 14. | 180-9064 | [1] | TUBE AS | |
| 15. | 180-9065 | [1] | BRACKET | |
| 16. | 193-5325I | [1] | HOSE AS | |
| 17. | 196-8865 | [1] | TUBE AS | |
| 18. | 196-8866 | [1] | TUBE AS | |
| 19. | 148-8325 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8641 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 20. | 148-8336 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 21. | 148-8351 | [1] | ELBOW AS | |
| | 6V-9849 | [1] | ELBOW | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 22. | 148-8384 | [1] | ELBOW AS | |
| | 6V-8979 | [1] | ELBOW | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| 23. | 148-8413 | [1] | REDUCER AS | |
| | 6V-8934 | [1] | ADAPTER | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 24. | 148-8419 | [1] | REDUCER AS | |
| | 6V-8935 | [1] | REDUCER | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 25. | 148-8432 | [1] | TEE AS | |
| | 6V-8773 | [1] | TEE-FACE SEAL | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| 26. | 148-8434 | [1] | TEE AS | |
| | 6V-9843 | [1] | TEE | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 27. | 150-4047 | [1] | ADAPTER AS | |
| | 8T-2353 | [1] | ADAPTER | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 28. | 150-4052 | [1] | UNION AS | |
| | 6V-8993 | [1] | UNION | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| 29. | 2P-1279 | [2] | LOCKNUT(9/16-18-THD) | |
| 30. | 3U-2753 | [1] | CLIP | |
| 31. | 5C-2890M | [8] | NUT(M6X1-THD) | |
| 32. | 5C-9553M | [5] | BOLT(M6X1X16-MM) | |
| 33. | 5P-4115 | [5] | WASHER-HARD(7.2X19X2-MM THK) | |
| 34. | 6V-7357M | [3] | BOLT(M6X1X25-MM) | |
| 35. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 36. | 8M-2771 | [7] | CLIP | |
| 37. | 8M-2773 | [2] | CLIP(LOOP) | |
| 38. | 8T-1889 | [1] | CLIP(SLOT) | |
| 39. | 8T-1890 | [1] | CLIP(TAB) | |
| 40. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 42. | 9X-8256 | [13] | WASHER(6.6X12X2-MM THK) | |
| 43. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
