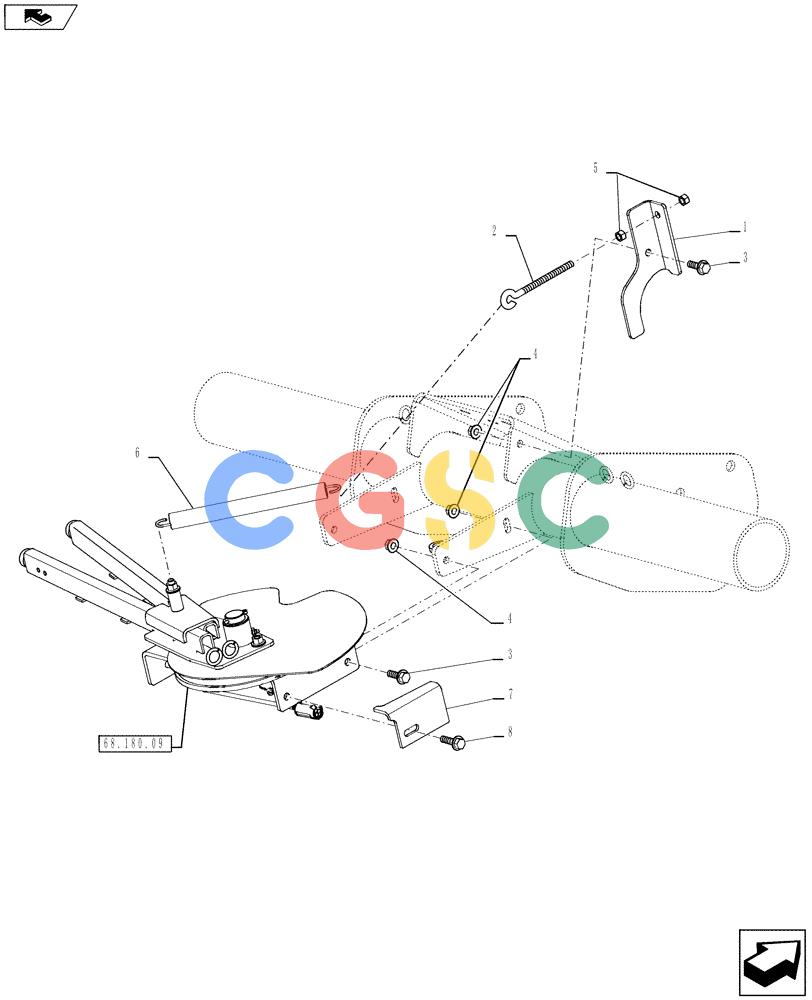

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (68.180.07) - TWINE PIVOT MOUNT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84256347
|
[1] |
SUPPORT
|
NH
|
| 2. |
631201
|
[1] |
EYEBOLT
|
NH
|
| 3. |
9804262
|
[5] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 4. |
9804278
|
[5] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 5. |
9628503
|
[2] |
NUT,3/8"-16, G5
|
NH
|
| 6. |
86559592
|
[1] |
SPRING,Extension, 0.99" OD x 6-1/4" L
|
NH
|
| 7. |
84284913
|
[1] |
STOP
|
NH
|
| 8. |
86511845
|
[1] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
