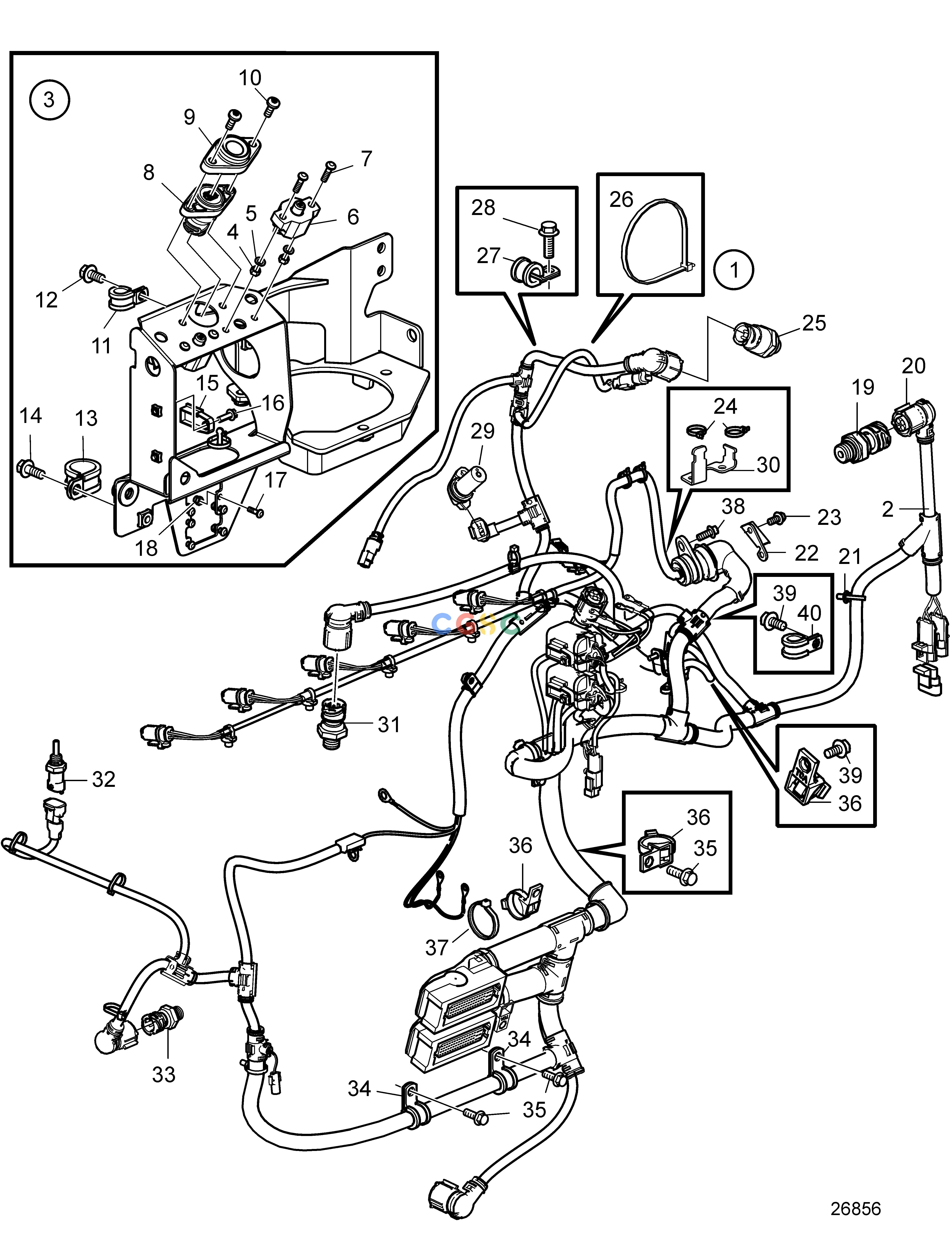

沃尔沃零件查询D11B1-A MP; D11B2-A MPElectrical SystemElectrical System, SN7011314000-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22056795
|
[1] |
Wiring harness
|
24V
|
| 2. |
22056793
|
[1] |
Wiring harness
|
|
| 3. |
21845943
|
[1] |
Bracket
|
|
| 4. |
955780
|
[4] |
Hexagon nut
|
|
| 5. |
940090
|
[4] |
Washer
|
|
| 6. |
873952
|
[2] |
Automatic fuse
|
|
| 7. |
969408
|
[4] |
Six point socket scr
|
|
| 8. |
21847110
|
[1] |
Stop button
|
|
| 9. |
21738845
|
[1] |
Cover
|
|
| 10. |
994785
|
[2] |
Six point socket scr
|
|
| 11. |
949746
|
[1] |
Clamp
|
|
| 12. |
995461
|
[1] |
Flange screw
|
|
| 13. |
947827
|
[1] |
Clamp
|
|
| 14. |
946173
|
[1] |
Flange screw
|
|
| 15. |
3587174
|
[2] |
Relay retainer
|
|
| 16. |
996061
|
[2] |
Flange screw
|
|
| 17. |
969515
|
[8] |
Six point socket scr
|
|
| 18. |
963103
|
[8] |
Lock nut
|
|
| 19. |
21634021
|
[1] |
Pressure sensor
|
|
| 20. |
3589939
|
[1] |
Connector
|
Replaced Part, Se Section 41414
|
| 21. |
980881
|
[2] |
Cable tie
|
|
| 22. |
21536857
|
[1] |
Bracket
|
|
| 23. |
994445
|
[2] |
Flange screw
|
|
| 24. |
983472
|
[4] |
Cable tie
|
|
| 25. |
1077574
|
[1] |
Sensor
|
|
| 26. |
948211
|
[6] |
Cable tie
|
|
| 27. |
984941
|
[1] |
Clamp
|
|
| 28. |
984725
|
[4] |
Flange screw
|
|
| 29. |
21426987
|
[1] |
Speed monitor
|
|
| 30. |
|
|
|
|
| 31. |
21634017
|
[8] |
Pressure sensor
|
|
| 32. |
21531072
|
[1] |
Temperature sensor
|
|
| 33. |
21634021
|
[1] |
Pressure sensor
|
|
| 34. |
984948
|
[2] |
Clamp
|
|
| 35. |
984733
|
[4] |
Flange screw
|
|
| 36. |
993183
|
[3] |
Cable tie
|
|
| 37. |
948211
|
[2] |
Cable tie
|
|
| 38. |
984734
|
[2] |
Flange screw
|
|
| 39. |
984725
|
[4] |
Flange screw
|
|
| 40. |
984943
|
[2] |
Clamp
|
|
