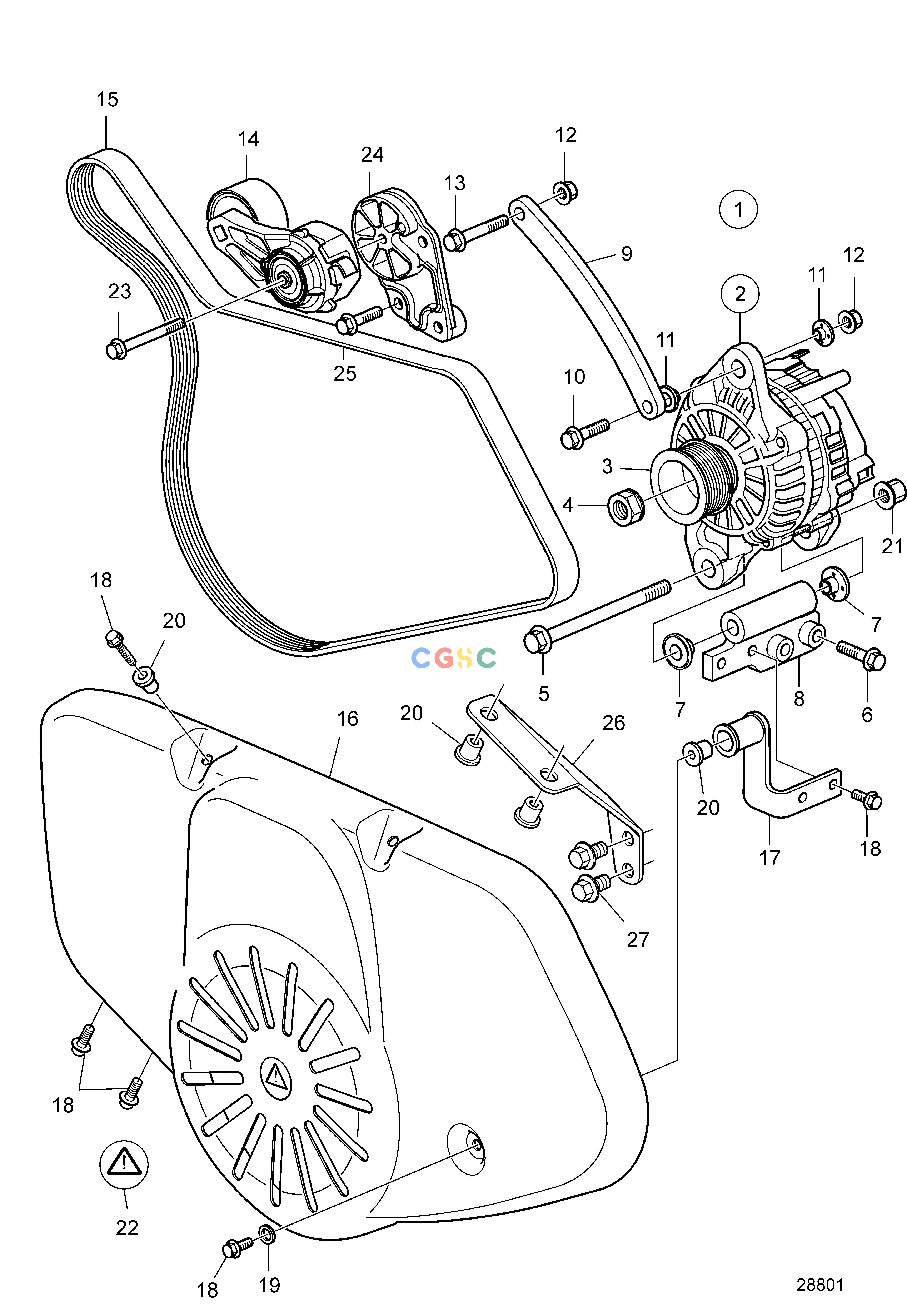

沃尔沃零件查询D11B1-A MP; D11B2-A MPElectrical SystemExtra Alternator 14V 115A, 28V 80AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21173893
|
[1] |
Alternator kit
|
12V
|
| 2. |
3587216
|
[1] |
Alternator
|
14V 115A
|
| 2. |
3803846
|
[1] |
Alternator, exch
|
14V 115A
|
| 2. |
3587218
|
[1] |
Alternator
|
28V 80A
|
| 2. |
3803845
|
[1] |
Alternator, exch
|
28V 80A
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
984826
|
[1] |
Flange screw
|
|
| 6. |
984755
|
[2] |
Flange screw
|
|
| 7. |
21308514
|
[2] |
Insulating bushing
|
|
| 8. |
3595216
|
[1] |
Alternator anchorage
|
|
| 9. |
3594067
|
[1] |
Alternator bracket
|
|
| 10. |
984755
|
[1] |
Flange screw
|
|
| 11. |
21328137
|
[2] |
Insulating bushing
|
|
| 12. |
990951
|
[1] |
Flange lock nut
|
|
| 13. |
984757
|
[1] |
Flange screw
|
|
| 14. |
21422765
|
[1] |
Belt tensioner
|
|
| 15. |
21354715
|
[1] |
V-ribbed belt
|
|
| 16. |
3849039
|
[1] |
Belt protector
|
|
| 17. |
3818185
|
[1] |
Bracket
|
|
| 18. |
984734
|
[7] |
Flange screw
|
|
| 19. |
976944
|
[1] |
Washer
|
|
| 20. |
930762
|
[5] |
Expanding nut, expander
|
|
| 21. |
990960
|
[1] |
Flange lock nut
|
|
| 22. |
3817024
|
[1] |
Decal
|
|
| 23. |
975103
|
[1] |
Flange screw
|
|
| 24. |
3849931
|
[1] |
Bracket
|
|
| 25. |
969445
|
[2] |
Flange screw
|
|
| 26. |
3849049
|
[1] |
Bracket
|
|
| 27. |
984813
|
[2] |
Flange screw
|
|
