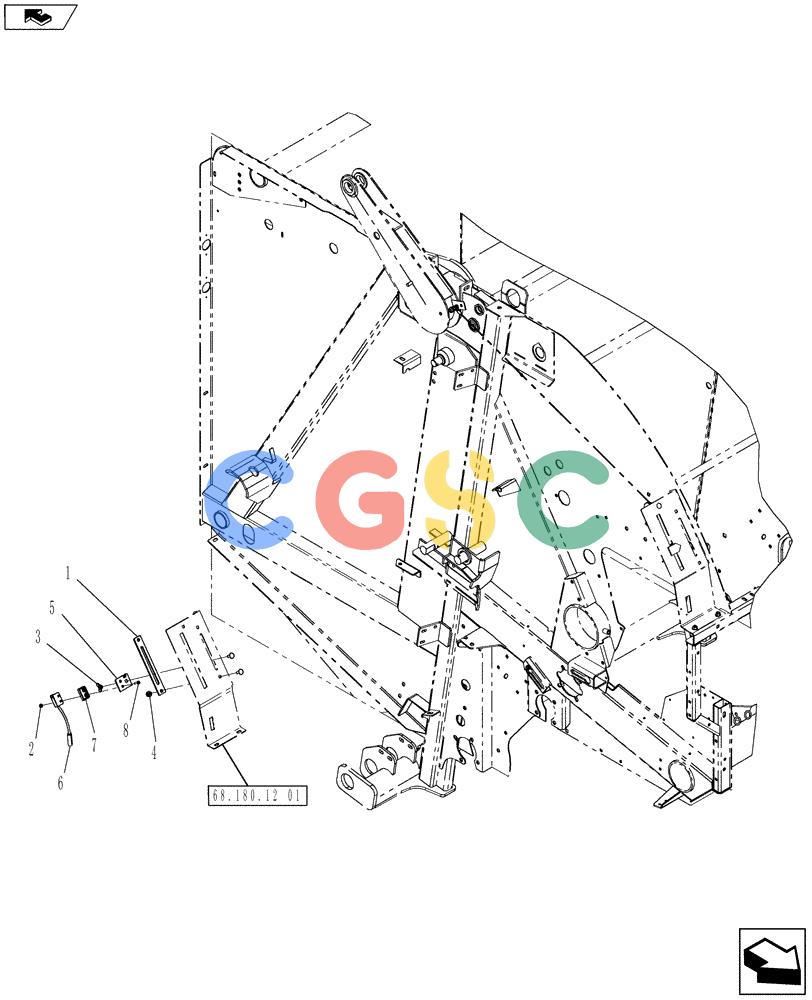

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (68.180.12[02]) - BALE SIZE INDICATOR SWITCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84235148
|
[1] |
MOUNT
|
NH
Bale Size Sensor
|
| 2. |
86900323
|
[2] |
NUT,#10 - 24
|
PA
|
| 3. |
84807781
|
[1] |
WING NUT,M8
|
NH
|
| 4. |
9804277
|
[3] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 5. |
84235150
|
[1] |
MOUNTING PLATE
|
NH
Bale Size Sensor
|
| 6. |
86594422
|
[1] |
SENSOR
|
NH
Bale Size
|
| 7. |
86624468
|
[1] |
SPACER,1.65" L x 5/16” Thk
|
NH
|
| 8. |
87310126
|
[2] |
SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST
|
BUR
|
