| 1. |
84204331
|
[1] |

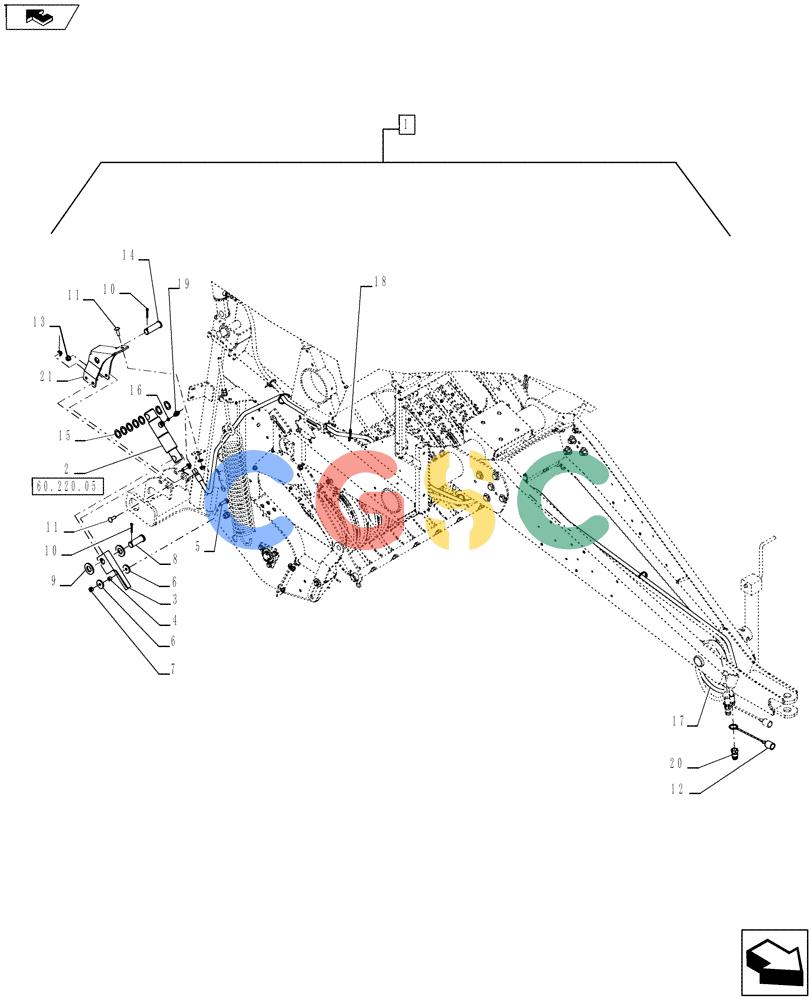

DIA KIT, HARVESTER
|
NH
Hydraulic Pickup Lift, Includes: Installation Instructions
|
| 2. |
87056843
|
[1] |
HYDRAULIC CYLINDER,38.1mm Rod, 76.2mm Stroke
|
PA
Pickup Lift Superseded by part number: 47583052
|
| 3. |
84235128
|
[1] |
LINK
|
NH
|
| 4. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 5. |
374892
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8
|
NH
|
| 6. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 7. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
512112
|
[1] |
HOSE
|
GI
|
| 9. |
87367
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 10. |
80754
|
[2] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 11. |
86512446
|
[5] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 12. |
87017806
|
[1] |
DUST CAP,Green
|
PA
Green Superseded by part number: 84819677
|
| 13. |
9804278
|
[5] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 14. |
514864
|
[1] |
PIN
|
NH
|
| 15. |
26402
|
[7] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
|
| 16. |
261066
|
[1] |
ORIFICE,9/16" - 18, 0.813" Orifice
|
NH
|
| 17. |
86836356
|
[1] |
HOSE,9.53mm ID x 4673.6mm L, SAE 100R17
|
NH
|
| 18. |
263117
|
[5] |
CABLE TIE,292.1mm L, Nylon, Black
|
NH
CABLE STRAP
|
| 19. |
76350
|
[1] |
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
|
NH
|
| 20. |
9801618
|
[1] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Superseded by part number: 9412
|
| 21. |
84254713
|
[1] |
SUPPORT
|
NH
|
