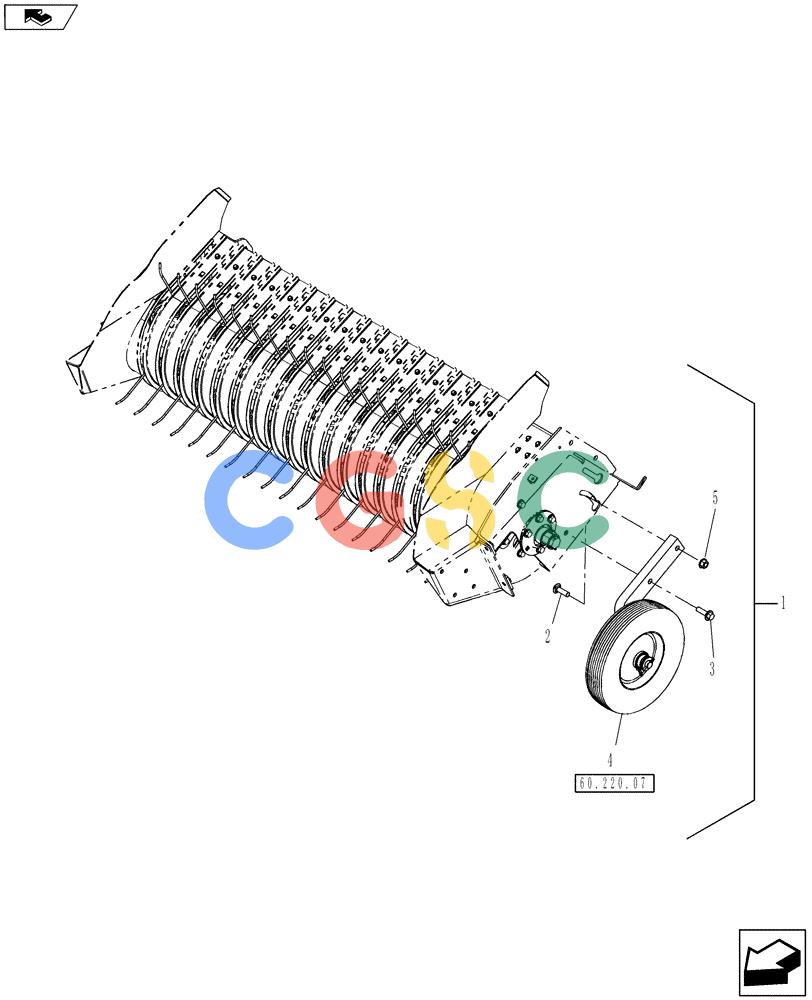

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.060.03) - DIA KIT, LH PICKUP WHEEL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
807 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84204326
|
[1] |
DIA KIT, HARVESTER
|
NH
Pickup Gage Wheel
|
| 2. |
334682
|
[1] |
CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd
|
ZED
|
| 3. |
9671487
|
[1] |
BOLT,Hex, M12 x 50mm, Cl 8.8
|
PA
|
| 4. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Pickup Gage Wheel
|
| 5. |
9804279
|
[1] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 6. |
84134391
|
[1] |
INSTRUCTION
|
NH
Installation
|
