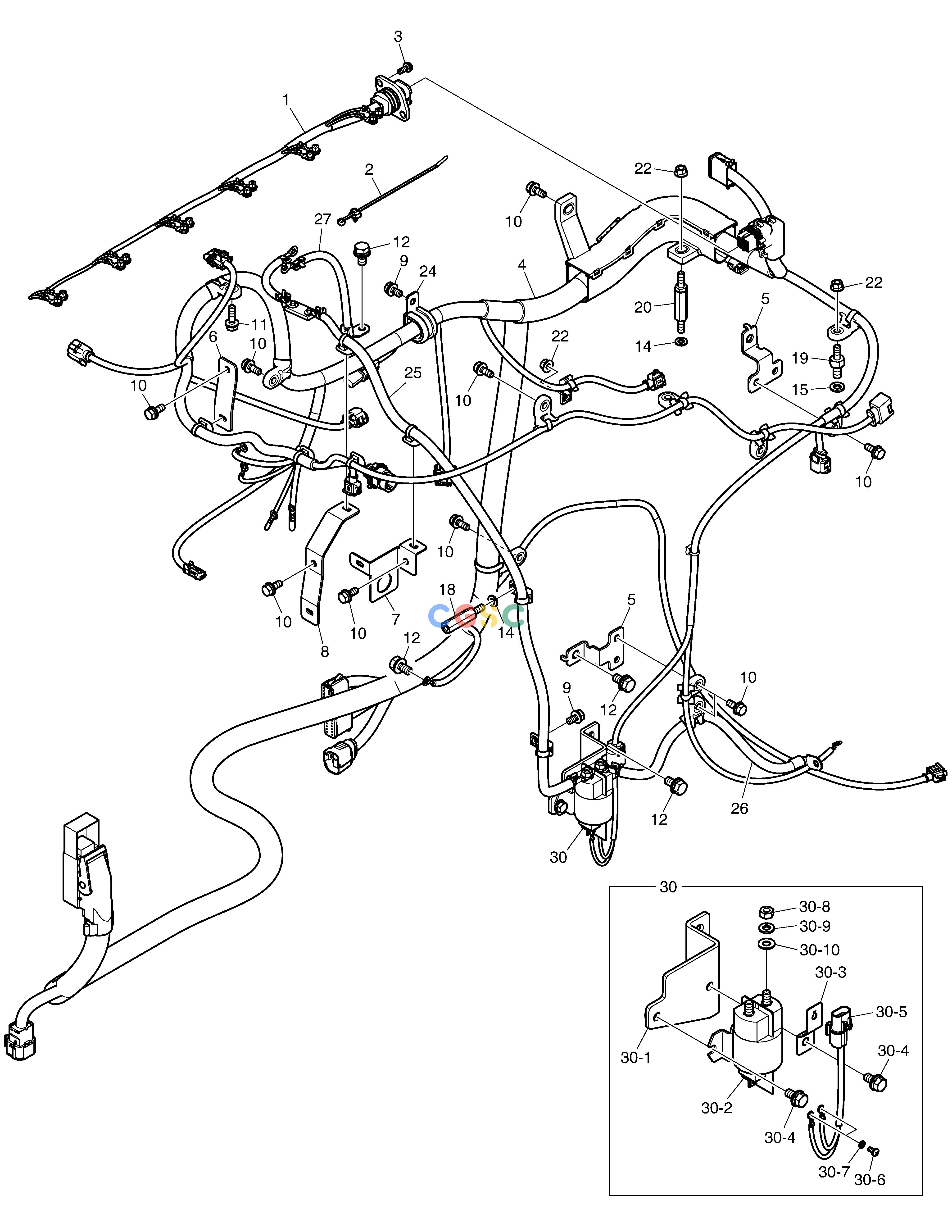

斗山零件查询WIRE HARNESS DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
310208-00430
|
[1] |
WIRE,ELECTRIC
|
|
| 10. |
06.01923-3114
|
[10] |
BOLT ASS`Y M8X22
|
|
| 11. |
06.01923-3117
|
[1] |
. BOLT ASS`Y M8X30
|
|
| 12. |
06.01923-3214
|
[5] |
BOLT;HEX. M10X22
|
|
| 14. |
06.16731-2107
|
[2] |
WASHER
|
|
| 15. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 18. |
120122-00023
|
[1] |
BOLT;SPACER
|
|
| 19. |
120122-00024
|
[1] |
WASHER
|
|
| 2. |
310101-00172
|
[5] |
TIE,CABLE
|
|
| 20. |
120117-00033
|
[1] |
BOLT,STUD
|
|
| 20. |
120122-00023
|
[1] |
BOLT;SPACER
|
|
| 22. |
65.90535-0003
|
[3] |
NUT
|
|
| 24. |
65.97401-0186
|
[1] |
|
|
| 25. |
310207-03341A
|
[1] |
|
310207-03341B
|
| 25. |
310207-03341B
|
[1] |
|
|
| 26. |
310207-03342A
|
[1] |
|
|
| 26. |
310207-03342B
|
[1] |
|
|
| 27. |
310207-03926
|
[1] |
|
|
| 27. |
310207-03926A
|
[1] |
|
|
| 3. |
06.01913-2911
|
[2] |
BOLT ASS`Y M6X16
|
|
| 30. |
301202-00316A
|
[1] |
|
|
| 30-1. |
110411-00253
|
[1] |
|
|
| 30-10. |
06.15010-2311
|
[2] |
WASHER
|
|
| 30-2. |
301202-00067
|
[1] |
RELAY,PRE HEATER
|
|
| 30-3. |
110406-02674
|
[1] |
|
|
| 30-4. |
06.01923-3112
|
[2] |
BOLT ASS`Y M8X18
|
|
| 30-5. |
310207-01067A
|
[1] |
|
|
| 30-6. |
06.04190-0604
|
[2] |
. SCREW
|
|
| 30-7. |
06.16731-2103
|
[2] |
|
|
| 30-8. |
06.11063-8214
|
[2] |
. NUT
|
|
| 30-9. |
06.16731-2107
|
[2] |
WASHER
|
|
| 4. |
310207-03915
|
[1] |
|
310207-03915A
|
| 4. |
310207-03915A
|
[1] |
|
310207-03915C
|
| 4. |
310207-03915C
|
[1] |
|
|
| 5. |
110452-00085
|
[2] |
|
|
| 6. |
110452-00104
|
[1] |
|
|
| 7. |
110452-00144A
|
[1] |
|
|
| 8. |
110452-00145
|
[1] |
|
|
| 9. |
06.01923-3112
|
[2] |
BOLT ASS`Y M8X18
|
|
