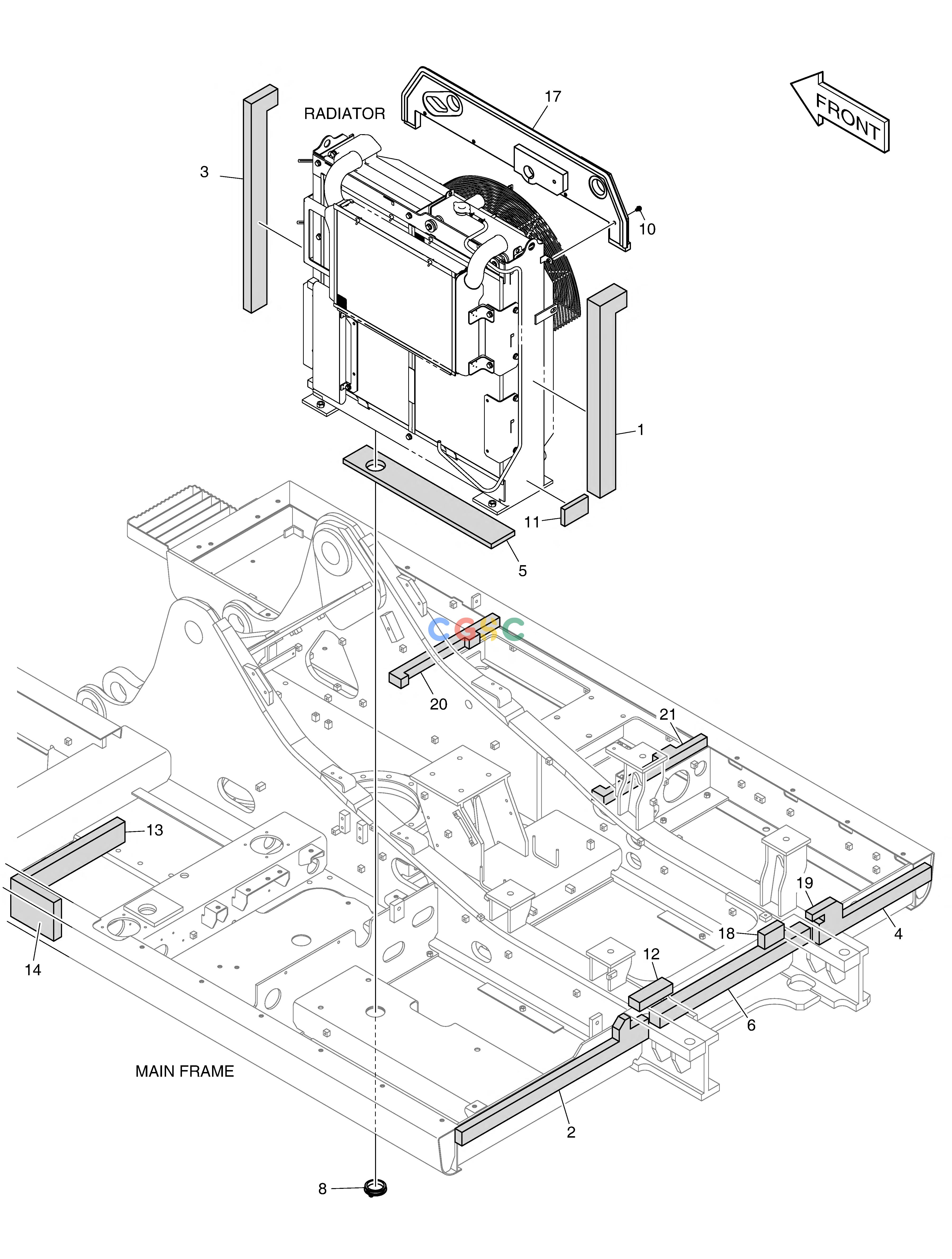

斗山零件查询ACOUSTIC FOAM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
128 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
180102-00791
|
[-] |
|
|
| 1. |
180102-01021A
|
[1] |
|
|
| 10. |
K1001029
|
[4] |
BOLT
|
|
| 11. |
180102-01022
|
[1] |
|
|
| 12. |
180102-00417
|
[1] |
|
|
| 13. |
180102-00422A
|
[1] |
|
|
| 14. |
180102-00421A
|
[1] |
|
|
| 17. |
110502-00842B
|
[1] |
|
|
| 18. |
180102-01102
|
[1] |
|
|
| 19. |
180102-01336
|
[1] |
|
|
| 2. |
180102-01100
|
[1] |
|
|
| 20. |
180102-01602
|
[1] |
|
|
| 21. |
180102-01603
|
[1] |
|
|
| 3. |
180102-00792A
|
[1] |
|
|
| 4. |
180102-00413
|
[1] |
|
|
| 5. |
180102-00185A
|
[1] |
|
|
| 6. |
180102-00414
|
[1] |
|
|
| 8. |
K1007044
|
[1] |
BUSHING
|
|
