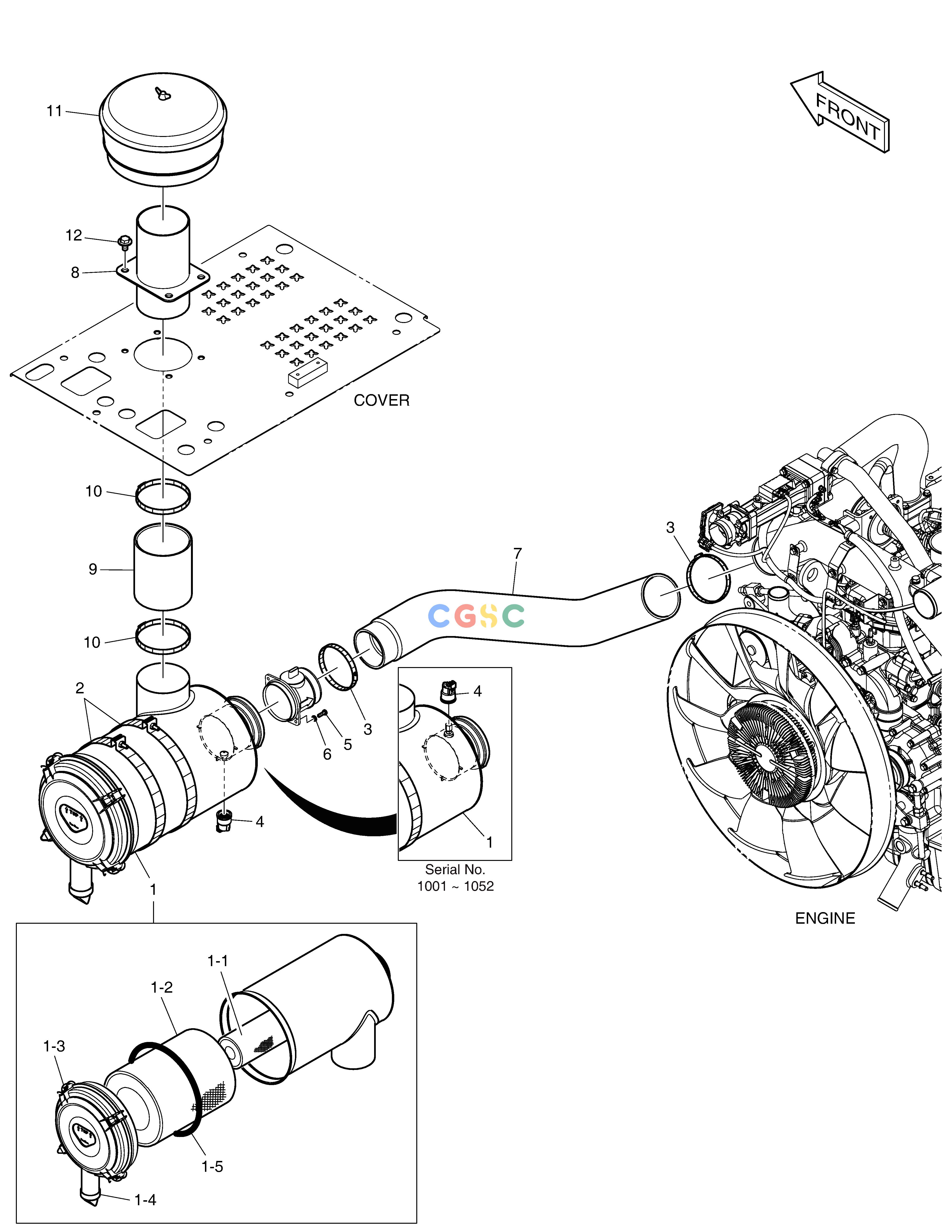

斗山零件查询AIR CLEANER DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
967 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00293
|
[-] |
|
|
| 1. |
400414-00180
|
[1] |
|
400414-00586
|
| 1. |
400414-00586
|
[1] |
|
|
| 1-1. |
474-00039
|
[1] |
. ELEMENT,INNER
|
|
| 1-2. |
474-00040
|
[1] |
ELEMENT,OUTER
|
|
| 1-3. |
204-00075
|
[1] |
. COVER
|
|
| 1-4. |
204-00070
|
[1] |
VALVE
|
|
| 1-5. |
401002-01072
|
[1] |
O-RING
|
|
| 10. |
S8510143
|
[2] |
CLAMP
|
|
| 11. |
2204-9014A
|
[1] |
CLEANER;PRE
|
|
| 12. |
DS0025015
|
[4] |
BOLT
|
|
| 2. |
124-00298B
|
[2] |
BAND;AIR CLEANER
|
|
| 3. |
S8510118
|
[2] |
CLAMP
|
|
| 4. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 5. |
S0504866
|
[2] |
BOLT
|
|
| 6. |
S5010303
|
[2] |
WASHER
|
|
| 7. |
420101-00831
|
[1] |
|
|
| 8. |
430208-00074A
|
[1] |
|
|
| 9. |
420101-00213
|
[1] |
|
|
