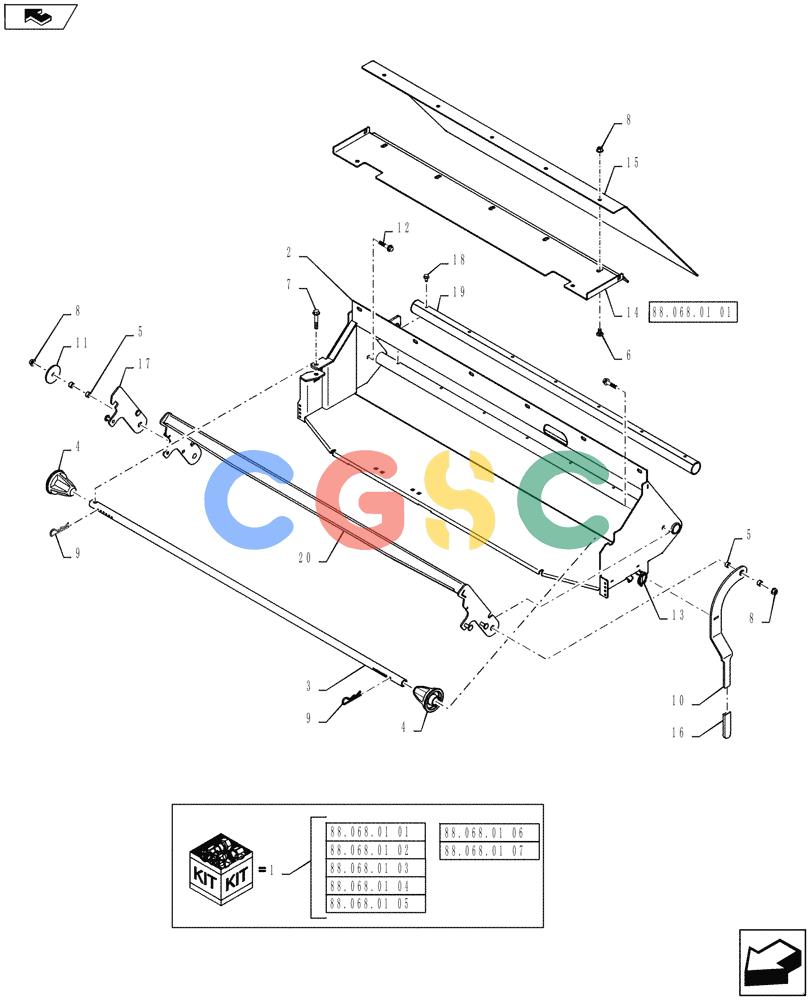

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.068.01[02]) - DIA KIT, STANDARD NET, STATIONARY ROLL & BRAKE TENSION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84134336
|
[1] |
DIA KIT, HARVESTER
|
PA
Standard Net
|
| 2. |
84234803
|
[1] |
SUPPORT
|
NH
|
| 3. |
84234804
|
[1] |
SUPPORT TUBE
|
NH
Net
|
| 4. |
9823255
|
[2] |
GUIDE
|
NH
|
| 5. |
698748
|
[4] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 6. |
120041
|
[5] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 7. |
9804265
|
[1] |
FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8
|
NH
|
| 8. |
9804278
|
[11] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 9. |
86511448
|
[2] |
COTTER PIN,0.148" Dia x 3.31" L
|
NH
Superseded by part number: 80033778
|
| 10. |
84360520
|
[1] |
ARM
|
NH
|
| 11. |
87036420
|
[1] |
WASHER,0.41" ID x 2.5" OD x 0.15" Thk
|
NH
|
| 12. |
9804263
|
[2] |
BOLT,M10 x 49.2mm, Cl 8.8
|
NH
|
| 13. |
270184
|
[1] |
LINCH PIN,6.35mm OD
|
NH
|
| 14. |
84365484
|
[1] |
PANEL SUPPORT
|
NH
|
| 15. |
84361221
|
[1] |
PROTECTION PLATE
|
NH
|
| 16. |
219838
|
[1] |
HANDLE GRIP
|
NH
|
| 17. |
84374942
|
[2] |
PLATE
|
NH
|
| 18. |
87039762
|
[1] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 19. |
86542665
|
[1] |
PAD
|
NH
Pad
|
| 20. |
84234805
|
[1] |
ARM
|
NH
Net Brake
|
